Product data sheet

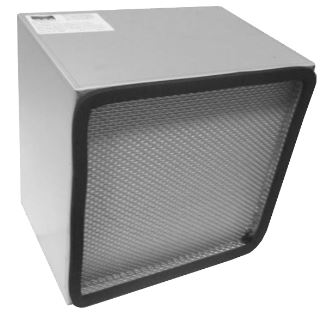

Combined filter for BOFA V 200/250, BOFA 3D PrintPRO2, BOFA 3D PrintPRO3

Part #: 1UA1030099 (old part no A1030099)

Technical Specifications:

• Type: Combined Filter
• Dimensions (mm): 172mm H x 245mm W x 245mm D Approx.
• Filter Media 1: Pleated glass fiber material
• Filter Media 2 (if applicable): Impregnated Activated Carbon
• Fabrication: Zinc plated Steel case, sealed with Polyurethane sealant
• Connection: Neoprene Gasket
• Efficiency: 99.997% removal of 0.3μm particles
• Carbon Weight: Approximately 1.4 Kgs

The BOFA V200/250, BOFA 3D PrintPRO2, BOFA 3D PrintPRO3, Combined Filter (Part Number 1UA1030099) – a high-performance replacement filter engineered for maximum efficiency and durability. This advanced filter boasts a 99.997% particle removal efficiency for particles as small as 0.3 microns, ensuring a cleaner and healthier work environment.

Constructed from pleated glass fibre material and impregnated activated carbon, this combined filter effectively traps particles and neutralizes odors. The zinc plated steel case provides a robust and durable housing, while the polyurethane sealant ensures a reliable, airtight seal. A neoprene gasket offers secure and easy filter installation, minimizing downtime during filter replacement.

Designed with non-toxic materials, this filter can be disposed of under normal waste conditions. However, it is essential to analyze the collected particulate and/or gas prior to disposal to ensure proper handling.
