Replacement 3.0 lens for Universal Laser Models: ILS9.75, ILS12.150D, ILS12.75, ILS12.150D

Part number: 145-0102-00-A

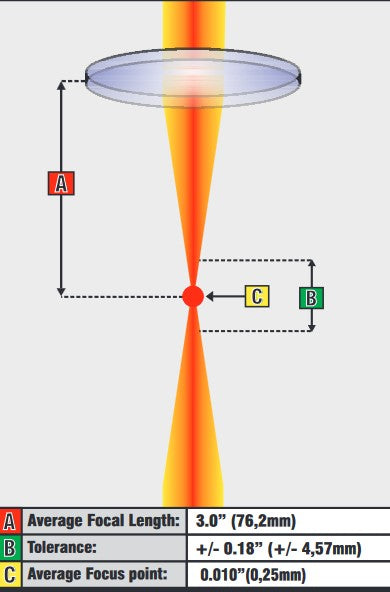

The Universal Laser 3.0 lens is designed to provide reliable and consistent cutting through thick materials with a focus on precision. With a longer focal length and greater tolerance, this lens kit ensures good quality engraving and marking while cutting through materials up to 3/4” (19,5mm) in thickness, depending on the type of material being processed.

The Universal Laser 3.0 lens kit is the ideal solution when clearance or tolerance becomes an issue, offering an additional 1” (25,4mm) clearance over the standard 2.0” lens kit. This lens kit is field-upgradable on supported systems and can be interchanged with any other lens.

The Universal Laser 3.0 lens kit is designed to reduce the chance of lens contamination with residue, with the lens positioned further away from the material being processed. However, please note that this lens kit is not recommended for detailed engraving due to its large spot size, which also reduces the Z axis (Table height) by 1” (25,4mm) from the standard 2.0” lens kit.

High laser power is often needed to cut through thicker materials.
