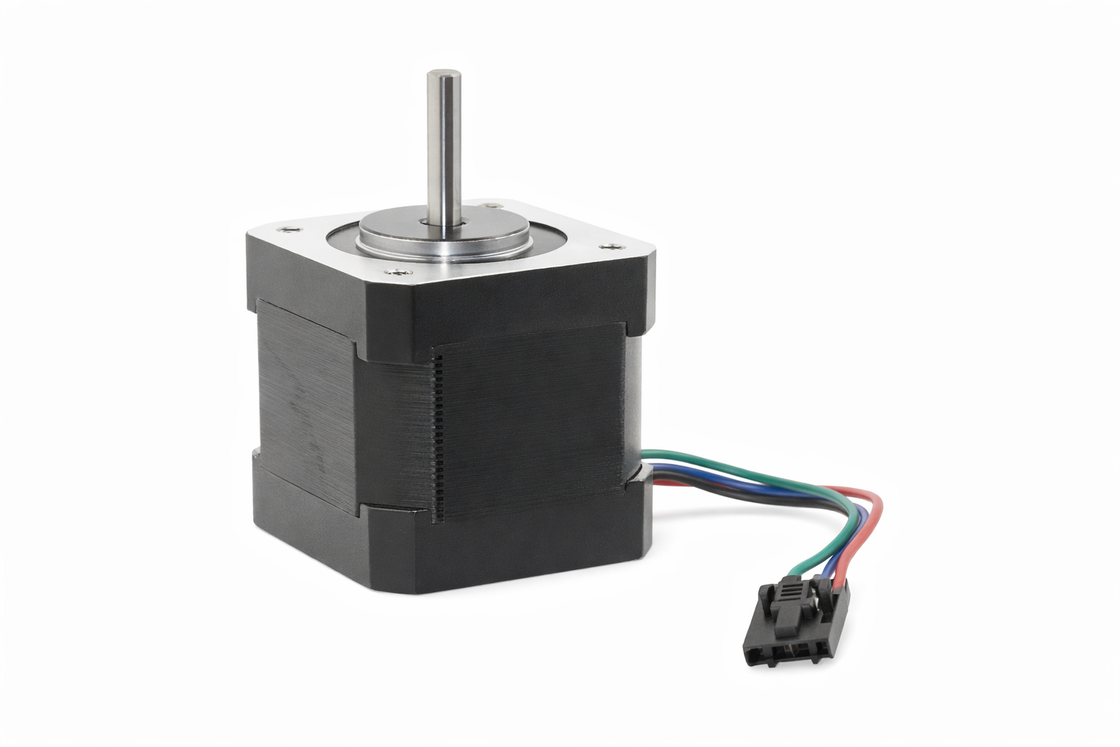

100-0017-01-A – X-Axis Motor (VLS+ Platform)
Universal Laser Systems OEM part

X-Axis Motor (VLS+ Platform)

The X-axis motor for Universal Laser VLS Platform systems. With its drive gear, it runs the belt that moves the focus carriage along the X-axis arm.

What’s included: the X-axis motor only. The drive gear isn’t included: move yours over, or add the X-axis drive gear (133-0022-00-A) if it’s worn. Details

$49.34
Available to orderAsk about ship timing
Shipping calculated at checkout. Request a quote / Buy with a PO

Compatibility

Universal Laser Systems lists this part for the models here.

Model not on the list? It may still fit. Send us your model and serial number and we’ll confirm before you order.

Help confirm this partULS parts list · Sept 2026
VLS Platform
VLS3.60 · yoursVLS3.75 · yoursVLS4.60 · yoursVLS4.75 · yoursVLS6.60 · yoursVLS6.75 · yours

Not on this list: VLS Desktop (VLS2.30DT, VLS3.50 and VLS3.60DT), VersaLaser VL (VL-200 and VL-300), PLS (PLS3.75, PLS4.75, PLS6.75 and PLS6.150D), X series (X-660 and X2-660), V series (V-460) and M series (M-360). Universal Laser lists a different part for those. Find the part for your model

Specs & contents

What’s included

In the box
X-axis motor× 1
Reuse from your machine The drive gear and its retaining clamp, which move to the new motor, plus the motor bracket, its screws and the motor cover.
Sold separatelyDrive Gear Assembly – X Axis (MVX/VLS/PLS Series)133-0022-00-A

Specifications

Axis
X
Connects to
Upper flex board
Mounting
Motor bracket on the X-axis arm, 4 screws
Per machine
1

Installation & downloads

Instructions for this part and the machine manuals that cover it.

Need help installing? Ask about this part
Installation instructions for this part aren’t posted yet Ask for installation help
Machine manuals

VLS Platform user guide, Feb 2026

We’ll send the manual for your model
Request

You may also need

Optional add-ons, sold separately. Each is listed for every model this part fits.Optional add-ons, sold separately. Listed for your .

Choose your machine to see add-ons for it.Nothing is added to your cart unless you choose it.

Questions about this part

Does the drive gear come with the motor?

No. The drive gear and its retaining clamp move over from your old motor. If the gear is worn, the X-axis drive gear (133-0022-00-A) is sold separately.
