AD Access
Compact, for light-duty laser use. Standard option has a hose kit.
- Airflow
- 106 cfm
- Pressure
- 30 mbar
- Inlet
- 2.0 in
- 50 mm
- Power
- 115 V
From $1,630.20
Donaldson BOFA · Laser
Laser fume extractors
Extractors for laser cutting, engraving and marking, from compact units to high-airflow systems, plus a filtered cooling unit. Each extractor pulls fumes through a pre-filter and a HEPA and carbon main filter.
- 15 extractors and 1 cooling unit
- 106 to 1,470 cfm
- 115 V, 230 V or 208 V 3-phase
How to choose
Choose a laser fume extractor
-
Start with the machine and materials.
What you cut or engrave decides the filters. Lasering PVC calls for the AD PVC iQ.
-
Size airflow at pressure.
Datasheets rate airflow under different test conditions, and your hose run and filters lower the airflow you get, so compare pressure (mbar) too. Donaldson recommends the lowest flow that captures the fume.
-
Count the capture points.
Match the inlet to your laser’s exhaust port and hose.
-
Check your site power.
Most units run on 115 V; the AD 1500 iQ needs 230 V single-phase and the AD 2000 iQ 208 V 3-phase.
Narrowed it down? The table below puts airflow, pressure, inlet, power and filters side by side. All 15 laser extractors in one table
Compact
Smaller cabinets for single lasers
3 systems
AD Nano+
Cost-effective system for light to medium-duty applications.
- Airflow
- 176 cfm
- Pressure
- 96 mbar
- Inlet
- 2.0 in
- 50 mm
- Power
- 115 V
$4,476.40
AD 350
Light-duty laser use. Options add a VOC sensor and remote signals.
- Airflow
- 206 cfm
- Pressure
- 96 mbar
- Inlet
- 3.9 in
- 100 mm
- Power
- 115 V
From $2,537.45
Oracle family
75 mm inlet, about 220–240 cfm
5 systems
AD Oracle iQ
Mid-sized, for a range of laser uses. iQ display with live airflow.
- Airflow
- 241 cfm
- unrestricted
- Pressure
- 95 mbar
- Inlet
- 2.9 in
- 75 mm
- Power
- 115 V
From $4,126.80
AD Oracle SA iQ
Mid-sized, for lighter-use laser applications. iQ display.
- Airflow
- 223 cfm
- Pressure
- 96 mbar
- Inlet
- 2.9 in
- 75 mm
- Power
- 115 V
From $3,343.05
AD Oracle PRO OS and Connect
Mid-sized. Color touchscreen, data stream and Ethernet port.
- Airflow
- 241 cfm
- unrestricted
- Pressure
- 96 mbar
- Inlet
- 2.95 in
- 75 mm
- Power
- 115 V
From $3,866.50
AD Base 1 Oracle
Ride-on base unit, with high airflow and pressure.
- Airflow
- 224 cfm
- Pressure
- 96 mbar
- Inlet
- 2.9 in
- 75 mm
- Power
- 115 V
$3,563.45
AD Base 2 Oracle
Ride-on base unit with a large platform, for laser engraving.
- Airflow
- 223 cfm
- Pressure
- 96 mbar
- Inlet
- 2.9 in
- 75 mm
- Power
- 115 V
$4,394.70
High airflow
125 mm inlet, 324 to 1,470 cfm
6 systems
AD 500 iQ
Medium-duty laser applications. iQ display and filter monitoring.
- Airflow
- 324 cfm
- Pressure
- 100 mbar
- Inlet
- 4.92 in
- 125 mm
- Power
- 115 V
$6,610.10
AD 1000 iQ
Medium to heavy-duty laser applications. iQ display.
- Airflow
- 515 cfm
- unrestricted
- Pressure
- 65 mbar
- at 115 V
- Inlet
- 4.92 in
- 125 mm
- Power
- 115 V
$7,884.05
AD 1000 PRO OS
Medium to heavy-duty. Color touchscreen with filter-life monitor.
- Airflow
- 515 cfm
- unrestricted
- Pressure
- 65 mbar
- at 115 V
- Inlet
- 4.92 in
- 125 mm
- Power
- 115 V
From $6,859.00
AD 1000 PRO OS and Connect
The AD 1000 PRO OS with a two-way Ethernet data link.
- Airflow
- 515 cfm
- unrestricted
- Pressure
- 65 mbar
- at 115 V
- Inlet
- 4.92 in
- 125 mm
- Power
- 115 V
From $7,107.90
AD 1500 iQ
Heavy-duty laser applications. iQ display and filter monitoring.
- Airflow
- 735 cfm
- Pressure
- 100 mbar
- Inlet
- 4.92 in
- 125 mm
- Power
- 230 V
- single-phase
Needs a 230 V single-phase supply. Check your site power.
From $11,270.80
Quote only

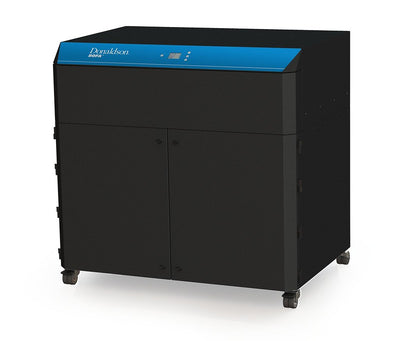

AD 2000 iQ
For the most demanding laser applications.
- Airflow
- 1,470 cfm
- Pressure
- 96 mbar
- Inlet
- 4.9 in
- 125 mm
- Power
- 208 V
- 3-phase, 60 Hz
Power: 208 V, 3-phase, 60 Hz. Sold by quote.
$17,660.50
PVC processing
Filters and sensors for lasering PVC
1 system
AD PVC iQ
Built for lasering PVC: HCl and VOC sensors, acid-resistant coatings.
- Airflow
- 206 cfm
- Pressure
- 96 mbar
- Inlet
- 2.9 in
- 75 mm
- Power
- 115 V
$7,144.00
Cooling and temperature control
Companion equipment, not a fume extractor
1 system
Cooling unit
AD 350 CU Filtered Cooling Unit
Supplies filtered cooling air to a laser. Not a fume extractor.
- Cooling air
- 206 cfm
- Inlets
- 1.3 and 2.9 in
- Weight
- 41 lb
- Power
- 115 V
$2,112.80
Compare
All 15 laser extractors side by side
Airflow, pressure, inlet, power and the filters each unit takes. Part numbers link to the filter pages.
| Extractor | Airflow | Pressure | Inlet | Power | Pre-filter | Main filter | Noise |
|---|---|---|---|---|---|---|---|
| AD Access | 106 cfm | 30 mbar | 2.0 in · 50 mm | 115 V | 1UA1030153DeepPleat, ePM1 70% | 1UA1030154HEPA 99.995% at 0.3 µm, 15.4 lb carbon | < 56 dB(A) at 115 V |
| AD Nano+ | 176 cfm | 96 mbar | 2.0 in · 50 mm | 115 V | 1UA1030190DeepPleat DUO, ePM1 70% | 1UA1030191HEPA 99.997% at 0.3 µm, 16.5 lb carbon | < 60 dB(A) |
| AD 350 | 206 cfm | 96 mbar | 3.9 in · 100 mm | 115 V | 1UA1030056DeepPleat, 95% at 0.9 µm | 1UA1030055HEPA 99.997% at 0.3 µm, 16.5 lb carbon | < 62 dB(A) |
| AD Oracle iQ | 241 cfmunrestricted | 95 mbar | 2.9 in · 75 mm | 115 V | 1UA1030156DeepPleat DUO, ePM1 70% | 1UA1030155HEPA 99.995% at 0.3 µm, 15.5 L carbon | < 70 dB(A) |
| AD Oracle SA iQ | 223 cfm | 96 mbar | 2.9 in · 75 mm | 115 V | 1UA1030344Pre-filter, 95% at 0.3 µm | 1UA1030155HEPA 99.995% at 0.3 µm, 15.5 L carbon | < 60 dB(A) |
| AD Oracle PRO OS and Connect | 241 cfmunrestricted | 96 mbar | 2.95 in · 75 mm | 115 V | 1UA1030156DeepPleat DUO, ePM1 70% | 1UA1030155HEPA 99.995% at 0.3 µm, 15.5 L carbon | < 80 dB(A) |
| AD Base 1 Oracle | 224 cfm | 96 mbar | 2.9 in · 75 mm | 115 V | 1UA1030156DeepPleat DUO, ePM1 70% | 1UA1030155HEPA 99.995% at 0.3 µm, 15.5 L carbon | < 64 dB(A) |
| AD Base 2 Oracle | 223 cfm | 96 mbar | 2.9 in · 75 mm | 115 V | 1UA1030156DeepPleat DUO, ePM1 70% | 1UA1030155HEPA 99.995% at 0.3 µm, 15.5 L carbon | < 63 dB(A) |
| AD 500 iQ | 324 cfm | 100 mbar | 4.92 in · 125 mm | 115 V | 1UA1030222DeepPleat DUO, F8 | 1UA1030297HEPA 99.995% at 0.3 µm, 53.7 L carbon | < 60 dB(A) |
| AD 1000 iQ | 515 cfmunrestricted | 65 mbar at 115 V | 4.92 in · 125 mm | 115 V | 1UA1030222DeepPleat DUO, F8 | 1UA1030297HEPA 99.995% at 0.3 µm, 53.7 L carbon | < 70 dB(A) |
| AD 1000 PRO OS | 515 cfmunrestricted | 65 mbar at 115 V | 4.92 in · 125 mm | 115 V | 1UA1030222DeepPleat DUO, ePM1 70% | 1UA1030297HEPA 99.995% at 0.3 µm, 53.7 L carbon | < 70 dB(A) |
| AD 1000 PRO OS and Connect | 515 cfmunrestricted | 65 mbar at 115 V | 4.92 in · 125 mm | 115 V | 1UA1030222DeepPleat DUO, ePM1 70% | 1UA1030297HEPA 99.995% at 0.3 µm, 53.7 L carbon | < 70 dB(A) |
| AD 1500 iQ | 735 cfm | 100 mbar | 4.92 in · 125 mm | 230 Vsingle-phase | 1UA1030222DeepPleat DUO, F8 | 1UA1030297HEPA 99.995% at 0.3 µm, 53.7 L carbon | < 68 dB(A) |
| AD 2000 iQ | 1,470 cfm | 96 mbar | 4.9 in · 125 mm | 208 V3-phase, 60 Hz | 1UA10303362 × DeepPleat DUO, F8, twin pack | 1UA10303352 × HEPA 99.995% at 0.3 µm with carbon, twin pack | < 75 dB(A) |
| AD PVC iQ | 206 cfm | 96 mbar | 2.9 in · 75 mm | 115 V | 1UA1030081Bag, 95% at 0.9 µm | 1UA1030082HEPA 99.997% at 0.3 µm, 46.3 lb carbon | < 60 dB(A) |
The AD 350 CU supplies filtered cooling air to a laser and its power supply. It is not a fume extractor, so it is not in this table.
Filters and accessories
Keep your laser extractor running
Replacement filters
Pre-filters and HEPA and carbon main filters for every unit on this page. Pick your model to see its set.
Find filters for your modelInline pre-filter units (ILF)
Inline pre-filter systems for BOFA extractors: the ILF 300, ILF 600 and ILF 1000.
Shop inline pre-filtersAlso for laser extractors: the Spark Arrestor V2, the AD Cyclone, exhaust spigots and replacement blowers. Arms, hoods and accessories
Do I need a fume extractor, or can I vent outside?
Your laser needs exhaust airflow while it runs. You can vent it outside through ducting with a blower that meets the laser’s exhaust requirement. Where venting outside isn’t possible, a fume extractor filters the air and returns it to the room.
Which extractor fits my laser?
Tell us your laser model, the materials you cut or engrave and how many hours a day it runs. We’ll recommend an extractor and the hose kit to go with it. The table above lists airflow, pressure and inlet size for every unit.
What do the two filters do?
The pre-filter catches the larger particles. The main filter combines HEPA (99.995% or better at 0.3 µm) with activated carbon for gases and odors. The part numbers are in the table above, and the filter finder lists them by model.
What power do these units need?
Most run on 115 V, 60 Hz. The AD 1500 iQ needs 230 V single-phase and the AD 2000 iQ needs 208 V 3-phase.
Can I finance an extractor?
Yes. We work with several equipment-financing partners. See our equipment financing options for details and to get started.
Can I order with a purchase order?
Yes. Schools, labs, government buyers and companies can order on a purchase order. See quotes and purchase orders for how it works.
Extraction advice
Not sure which extractor fits?
Tell us about your laser, materials and space. We’ll recommend an extractor and the hose kit to go with it.
Already own a BOFA extractor? Find replacement filters
