V-250
Dual-arm extraction for soldering. Install kit included.
- Airflow
- 106 cfm
- Pressure
- 30 mbar
- Inlets
- 2 × 2.0 in
- 2 × 50 mm
- Power
- 115 V
$1,155.20
Donaldson BOFA · Electronics
Electronics and soldering fume extractors
Bench and tip extraction for hand soldering, and a mobile unit with an arm and hood. Each extractor pulls fumes through a pre-filter and a HEPA and carbon main filter.
- 3 extractors
- Tip, arm and mobile extraction
- 115 V
How to choose
Choose a soldering fume extractor
-
Count the soldering stations.
The T-15 serves up to 15 hand-soldering operators through tip extraction. The V-250 has two 50 mm inlets for two arms.
-
Choose where you capture the fume.
At the iron tip, with an arm and a nozzle or funnel at the bench, or with the Mobile FumeKart’s arm and hood.
-
Check the filters.
Each extractor has a pre-filter and a main filter that combines HEPA (99.995% at 0.3 µm) with activated carbon.
-
Check your site power.
All three extractors run on 115 V. The TCU needs 230 V.
Narrowed it down? The table below puts airflow, pressure, inlet, power and filters side by side. The 3 extractors in one table
Soldering and mobile
Bench, tip and mobile extraction
3 systems
T-15
Tip extraction for hand soldering, up to 15 operators.
- Airflow
- 22 l/min
- per tip
- Pressure
- 100 mbar
- Inlet
- 2.0 in
- 50 mm
- Power
- 115 V
$3,197.70

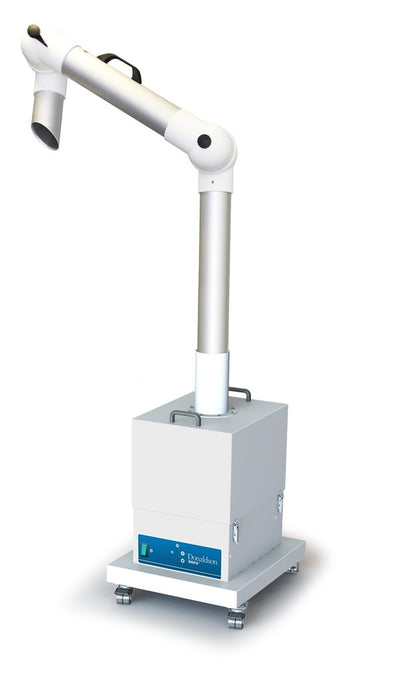

Mobile FumeKart
Mobile dust and fume extraction, with an arm and hood.
- Airflow
- 223 cfm
- Arm
- 75 or 100 mm
- Weight
- 119 lb
- Power
- 115 V
From $3,636.60
Temperature control
Companion equipment, not a fume extractor
1 system
Temperature control
TCU temperature control unit
Keeps the solder-paste printing area at a set temperature.
- Cooling
- 2000 W
- Set range
- 66–86 °F
- Weight
- 220 lb
- Power
- 230 V
Not a fume extractor. Needs a 230 V supply.
$11,052.30
Compare
The 3 electronics extractors side by side
Airflow, pressure, inlet, power and the filters each unit takes. Part numbers link to the filter pages.
| Extractor | Airflow | Pressure | Inlet | Power | Pre-filter | Main filter | Noise |
|---|---|---|---|---|---|---|---|
| V-250 | 106 cfm | 30 mbar | 2 × 2.0 in · 50 mm | 115 V | 1UA1030102Pad, 96% at 2 µm, pack of 5 | 1UA1030099HEPA 99.995% at 0.3 µm, 3.0 L carbon | < 61 dB(A) |
| T-15 | 22 l/min per tip | 100 mbar | 2.0 in · 50 mm | 115 V | 1UA1030095F7, pack of 5 | 1UA1030094HEPA 99.995% at 0.3 µm, 2.2 lb carbon | < 65 dB(A) |
| Mobile FumeKart | 223 cfm | Not published | 2.9 or 3.9 in arm | 115 V | 1UA103016795% at 0.9 µm | 1UA1030166HEPA 99.995% at 0.3 µm, 19 L carbon | < 64 dB(A) |
The TCU keeps the solder-paste printing area at a set temperature. It is not a fume extractor; its pre-filter is 1UA1030305.
Filters and accessories
Filters, arms and tip kits
Replacement filters
Pre-filters and HEPA and carbon main filters for the V-250, T-15, Mobile FumeKart and TCU.
Find filters for your modelArms, hoods and accessories
Extraction arms, hoods and accessories, including ESD versions.
Shop accessoriesCabinets, arms, nozzles and tip kits for these units
-
BOFA FumeCAB 2501UA1020127
Fits V-250
$695.40 Donaldson list $732.00
-
BOFA Universal Adjustable Iron Kit ESD1UA1090026
Fits T-15V-250
$133.00 Donaldson list $140.00
-
BOFA 32mm ESD Stay Put Arm with Nozzle1UA1020046
Fits T-15
$147.25 Donaldson list $155.00
-
BOFA 50mm Funnel1UA1080087
Fits T-15V-250
$70.30 Donaldson list $74.00
-
BOFA 50mm Slotted Nozzle1UA1020085
Fits V-250
$71.25 Donaldson list $75.00
-
BOFA 50mm ESD Cowl Black with Hose1UA1020037
Fits V-250
$268.85 Donaldson list $283.00
-
BOFA 50mm Downdraught Tray with Hose1UA1020040
Fits T-15V-250
$389.50 Donaldson list $410.00
Tip extraction or an arm: which do I need?
Tip extraction draws the fume at the soldering iron, so one T-15 can serve up to 15 hand-soldering operators. An arm with a nozzle or funnel captures the fume at the work instead: the V-250 takes two arms, and the Mobile FumeKart has one arm and a hood. Tell us how your benches are laid out and we’ll suggest a setup.
Are ESD-safe arms available?
Yes. ESD versions of the stay-put arms, the cowls and the adjustable iron kit are in the accessory list above.
Does the TCU extract fumes?
No. The TCU keeps the solder-paste printing area at a set temperature, from 66 to 86 °F. It runs on 230 V and takes its own pre-filter, 1UA1030305.
Which filters do these units use?
Each unit’s pre-filter and main filter are listed by part number in the table above, with links to order them. The filter finder lists them by model too.
Can I finance an extractor?
Yes. We work with several equipment-financing partners. See our equipment financing options for details and to get started.
Can I order with a purchase order?
Yes. Schools, labs, government buyers and companies can order on a purchase order. See quotes and purchase orders for how it works.
Extraction advice
Not sure which extractor fits?
Tell us how many soldering stations you have, what you solder and how your benches are laid out. We’ll recommend a unit and the arms to go with it.
Already own a BOFA extractor? Find replacement filters
