147-0022-00-A – Preventive Maintenance Kit B (Y-Axis) – PLS4/6, VLS4/6, and X Series
The 147-0022-00-A Preventive Maintenance Kit B is an OEM Y-axis service kit designed for scheduled maintenance of select Universal Laser Systems platforms. This kit contains critical motion components for the Y-axis drive system and is engineered to restore mechanical precision, reduce wear-induced backlash, and ensure optimal system performance during extended operation.
Compatible with the following ULS platforms:
-
VLS4.60, VLS4.75
-
VLS6.60, VLS6.75
-
PLS4.75, PLS6.75, PLS6.150
-
Legacy X-Series models

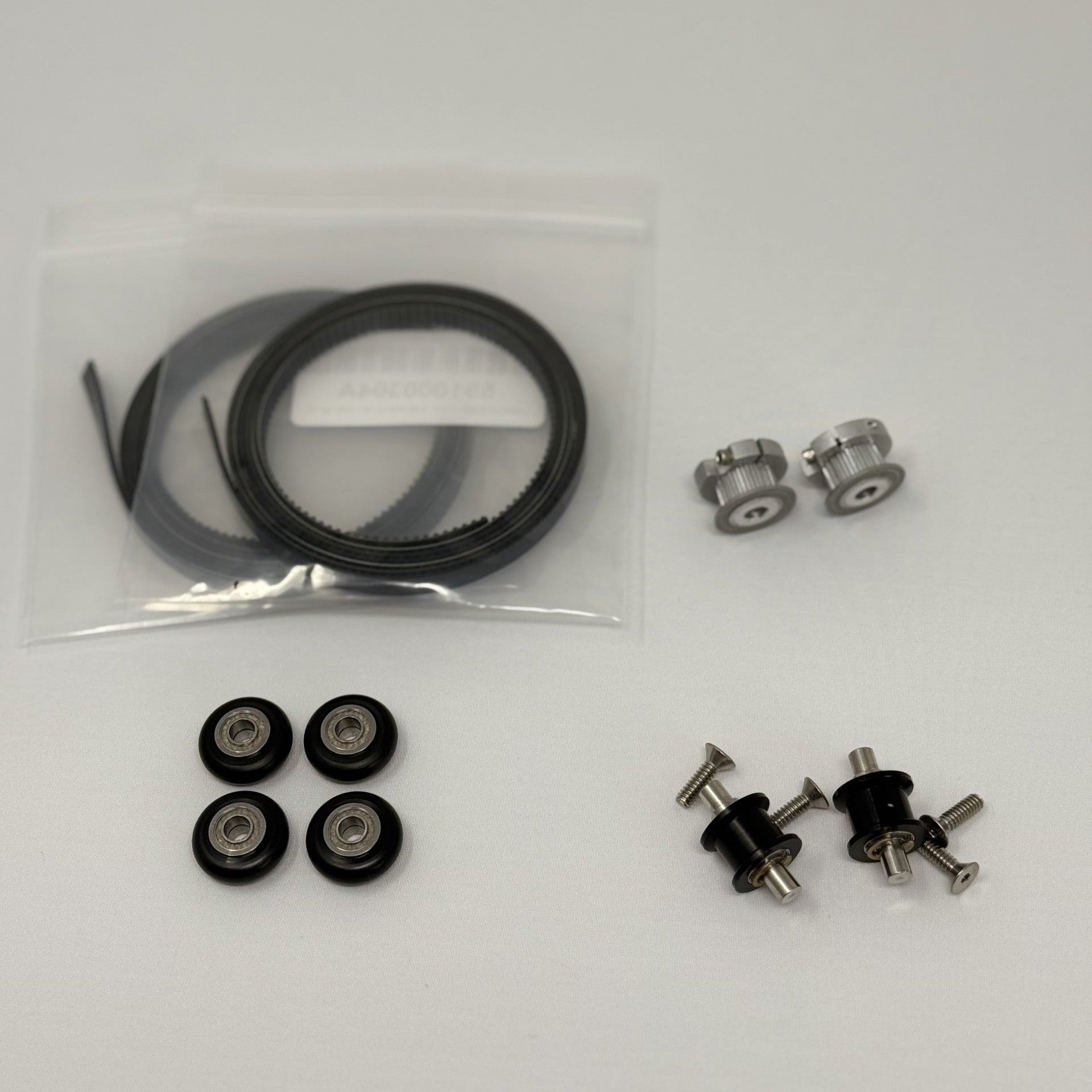

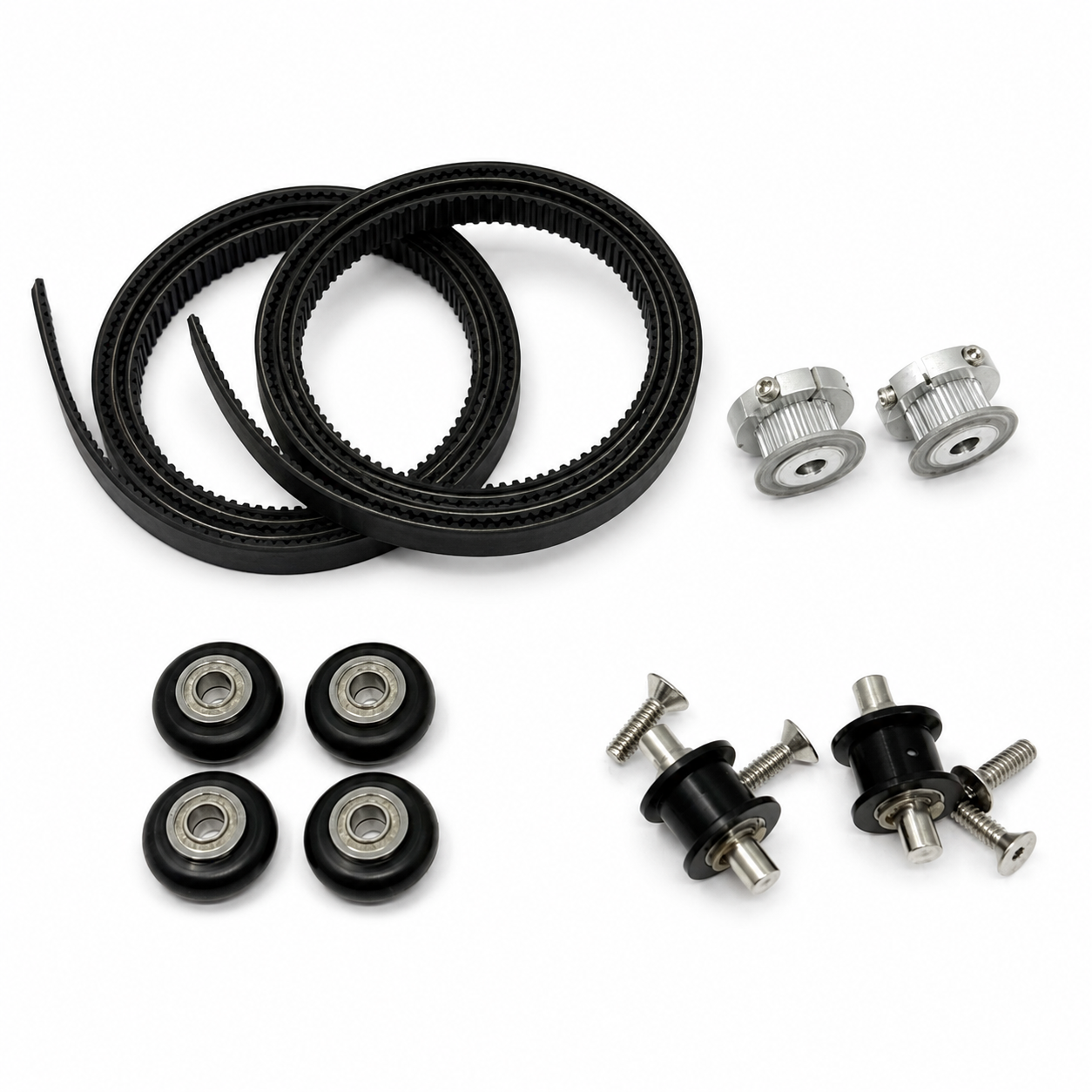

Kit Contents:
-
(2) Idler – Y Axis (MVX/PLS) – Part No. 143-0015-01-A
-
(4) Wheel – Y Axis (VLS/PLS/MVX Single) – Part No. 143-0020-00-A
-
(2) Drive Gear Assembly – Y Axis (MVX/PLS/VLS+) – Part No. 133-0004-00-A
-
(2) Belt – 16" X-Axis or 18" Y-Axis (4.25 ft) – Part No. 591-0003-04-A
Application Overview: This kit is intended for comprehensive Y-axis preventive maintenance, including replacement of high-wear components such as idlers, wheels, drive gears, and belts. These elements directly impact gantry motion stability, engraving accuracy, and long-term system reliability. Use of genuine ULS components ensures compatibility with factory tolerances and minimizes the risk of premature wear or alignment deviation.
Recommended Maintenance Interval: It is advised to replace Y-axis mechanical components on a scheduled basis or when motion inconsistencies, engraving artifacts, or increased drive noise are observed. This kit is suitable for field service technicians and end users performing routine system upkeep.
Note: All components in this kit are OEM parts and meet Universal Laser Systems’ specifications for form, fit, and function.
