BOFA AD 180/400/VL Filter Combined Small (Part No: 1UA1030049)
Authorized Donaldson BOFA Dealer
Donaldson BOFA

BOFA AD 180/400/VL Filter Combined Small (Part No: 1UA1030049)

Replacement Filter  ·  Part No: 1UA1030049

$439.85 $463.00Save 5%
1UA1030049 BOFA Filter - AD 180/400/VL - Combined (Small)
Request a Quote
ShippingOptions and costs show at checkout
Authorized Donaldson BOFA dealerSourced directly from Donaldson

Fits these BOFA models

  • AD 180 AD CF (to about 2006)

    Small (AD CF), for units from about 2006 and earlier. The filter is about 220 × 300 × 300 mm. Before you order, check the label on the combined filter in your unit. It should show 1UA1030049.

    Other AD 180 combined filters: large (AD CF/1) 1UA1030050

    See all filters for the AD 180
  • AD 400 AD CF (to about 2006)

    Small (AD CF), for units from about 2006 and earlier. The filter is about 220 × 300 × 300 mm. Before you order, check the label on the combined filter in your unit. It should show 1UA1030049.

    Other AD 400 combined filters: large (AD CF/1) 1UA1030050

    See all filters for the AD 400

Not sure? Send us a message

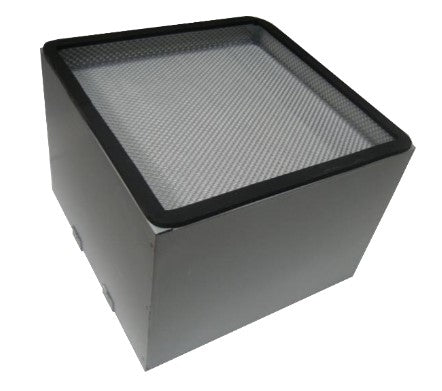

1UA1030049 BOFA Filter - AD 180/400/VL - Combined (Small)



Manufacturer part number: 1UA1030049 (old part number A1030049)



Ensure the efficient operation of your BOFA Fume Extraction systems with the AD180/400/VL Combined Fume Extraction Replacement Filter, part number 1UA1030049.

Designed to provide maximum performance, the filter boasts a removal efficiency of 99.997% for particles as small as 0.3μm, ensuring clean and safe air in your workspace. The filter combines a pleated glass fiber material and impregnated activated carbon, encased in a durable, zinc-plated steel case sealed with polyurethane. This filter is non-toxic and can be disposed of under regular waste conditions (subject to analysis of the collected particulate and/or Gas), offering a convenient and environmentally friendly solution.


Part Number1UA1030049
Product TypeBOFA Replacement Filter
Filter Type—
VendorDonaldson BOFA
Weight15.0 lb

Datasheet

  • Manufacturer part number: 1UA1030049
  • Type: Combined Filter
  • Dimensions: Approximately 220mm (H) x 300mm (W) x 300mm (D)
  • Filter Media 1: Pleated glass fiber material for excellent filtration
  • Filter Media 2: Impregnated Activated Carbon for enhanced gas adsorption
  • Fabrication: Robust zinc-plated steel case, sealed with polyurethane sealant
  • Connection: N/A
  • Efficiency: Impressive 99.997% removal of 0.3μm particles
  • Carbon Weight: Approximately 5.4 Kgs
Shipping Shipping options and costs show at checkout.
Authorized Donaldson BOFA dealer All products are Donaldson BOFA parts, sourced directly from Donaldson and backed by the manufacturer's warranty.
Expert Support Need help choosing the right product? We specialize in Donaldson BOFA fume extraction. Send us a message and we'll get back to you.
Sales Tax Exempt? We proudly serve schools, colleges, government agencies, and other tax-exempt organizations. Visit our tax exemption page to set up your account for tax-free purchasing — we process exemptions quickly.
