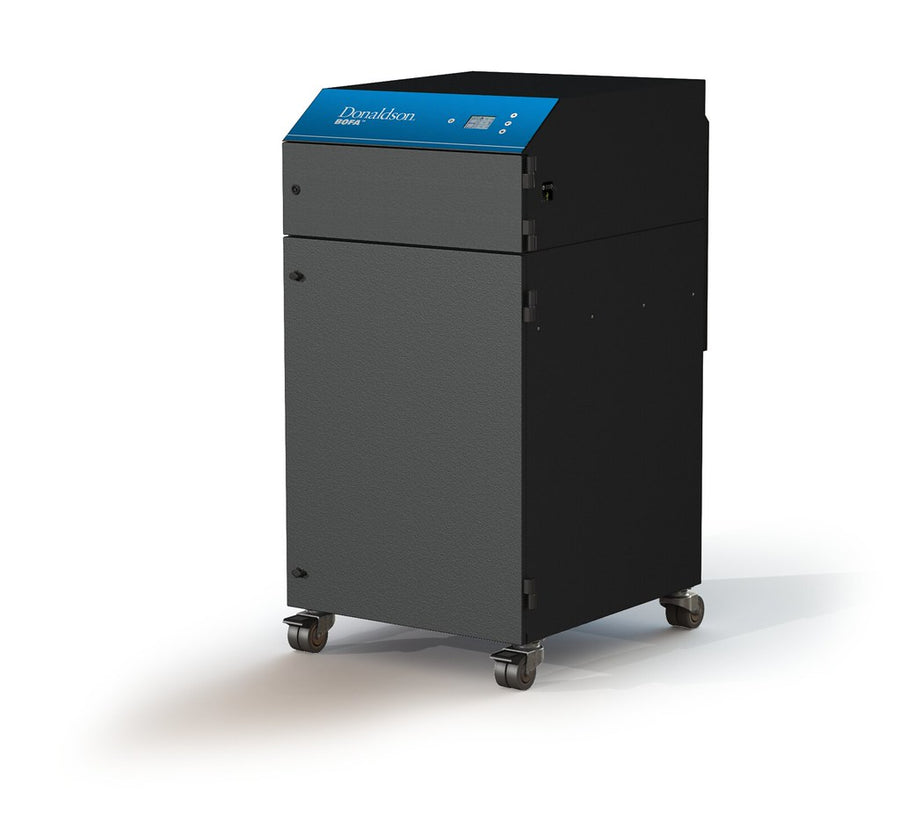

Donaldson BOFA · Dust extractor
Medium to heavy-duty industrial dust. iQ display.
From Price $8,701.05
Donaldson list $9,159.00
Needs a 230 V supply. Check your site power.
Need a hose kit or accessories? Send us a message
Taxes and shipping are calculated at checkout. Buying for a business? Purchase orders and tax-exempt accounts
Specifications
The Donaldson BOFA DustPRO 1000 iQ is a dust extraction system for medium to heavy-duty industrial applications that generate large amounts of particulate, with significant filter capacity. Airflow is settable from 176 to 442 cfm, with an iQ high-contrast display and remote diagnostics via USB. Filtration is a pre-filter bag rated 95% at 0.9 microns followed by a HEPA filter rated 99.995% at 0.3 microns, and noise is below 60 dB(A) at typical operating speed. It needs a 230 V supply and has 24 V stop/start, System OK and override signals.
| Application | Medium to heavy-duty industrial dust |
|---|---|
| Controls | High contrast display |
| Connectivity | USB port for remote diagnostics |
| Configuration | 230 V; 24 V stop/start, System OK and override signals |
| Cabinet | Powder-coated |
| Airflow | 520 cfm unrestrictedTest conditions from the datasheet: clean filters, no hose kit, at 230 V, measured with a wind vane; may vary with voltage and test procedure. |
| Settable airflow range | 176–442 cfm |
| Pressure | 60 mbar |
| Inlet | 4.92 in · 125 mm |
| Pre-filter | Bag, 95% at 0.9 µm · 1UA1030395 |
| Main filter | HEPA 99.995% at 0.3 µm · 1UA1030394 |
| Electrical, as sold | 230 V; 12.8 A full load |
| Size (H × W × D) | 47.4 × 24.2 × 31.9 in |
| Weight | 209 lb |
| Noise, typical | < 60 dB(A) |
Replacement filters
Order only the ones you’re replacing.
Stage 1 of 2 · Pre-filter bag
Stage 2 of 2 · HEPA filter
Not sure which filter you need?
Send us a messageModel name
On the rating label on the side or rear of the unit. The label also shows the serial number. Position varies by model.
Filter part number
On the label of the filter you’re replacing, for example 1UA1030155. Older labels may show the same number without the 1U.
Price
per filter
Available to order
Price shows once you choose a version.
Choose a version first
We’ll check if we can supply it.
Priced per filter · Available to order
Product detailsHow to check
Look at the label on the in your unit and match the part number: .
Still not sure? Send us the model and serial number from the rating label and we’ll confirm the version before you order.
Price
per filter
Available to order
Price shows once you choose a version.
Choose a version first
We’ll check if we can supply it.
Order the exact number on your filter’s label. Different part numbers are different filters, even when they look alike.
Price
per filter
Help choosing
Tell us about your process and what you need. We’ll help you choose the setup.
Send us a messagePurchase orders, tax-exempt accounts and formal quotes.
