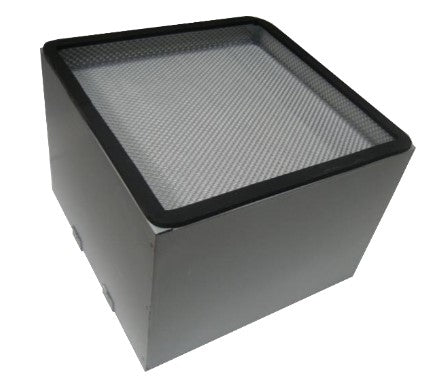

BOFA AD 180/400/VL/BASE Z/3 Filter Combined Large (Part No: 1UA1030050)
Authorized Donaldson BOFA Dealer
Donaldson BOFA

BOFA AD 180/400/VL/BASE Z/3 Filter Combined Large (Part No: 1UA1030050)

Replacement Filter  ·  Part No: 1UA1030050

$438.90Donaldson list $462.00
 1UA1030050 - BOFA Filter - AD 180/400/VL/BASE Z/3 - Combined (Large)
Request a Quote
ShippingOptions and costs show at checkout
Authorized Donaldson BOFA dealerSourced directly from Donaldson

Fits these BOFA models

  • AD 180 AD CF/1 (from about 2007)

    Large (AD CF/1), for units from about 2007 on. The filter is about 230 × 345 × 315 mm. Before you order, check the label on the combined filter in your unit. It should show 1UA1030050.

    Other AD 180 combined filters: small (AD CF) 1UA1030049

    See all filters for the AD 180
  • AD 400 AD CF/1 (from about 2007)

    Large (AD CF/1), for units from about 2007 on. The filter is about 230 × 345 × 315 mm. Before you order, check the label on the combined filter in your unit. It should show 1UA1030050.

    Other AD 400 combined filters: small (AD CF) 1UA1030049

    See all filters for the AD 400
  • AD Base 3

Not sure? Send us a message

 1UA1030050 - BOFA Filter - AD 180/400/VL/BASE Z/3 - Combined (Large)



The BOFA Fume Extraction Replacement Combined Filter, part number 1UA1030050, is designed for superior performance and excellent reliability. Crafted with the highest quality materials, this combined filter uses pleated glass fiber and impregnated activated carbon to ensure 99.997% removal of 0.3μm particles. Its robust zinc-plated steel case with a polyurethane sealant provides additional durability and longevity. The non-toxic filter material means it's environmentally friendly and can be disposed of under normal waste conditions (subject to analysis of the collected particulate and/or Gas).


Part Number1UA1030050
Product TypeBOFA Replacement Filter
Filter Type—
VendorDonaldson BOFA
Weight32.0 lb

Datasheet

  • Type: Combined Filter
  • Dimensions: Approximately 9.06H x 13.58W x 12.40D inches
  • Primary Filter Media: Pleated glass fiber material
  • Secondary Filter Media: Impregnated activated carbon
  • Case Fabrication: Durable zinc-plated steel, sealed with polyurethane sealant
  • Connection: Neoprene gasket for reliable seal
  • Efficiency: 99.997% removal of 0.3μm particles, ensuring excellent filtration
  • Carbon Weight: Approximately 18.74 pounds
