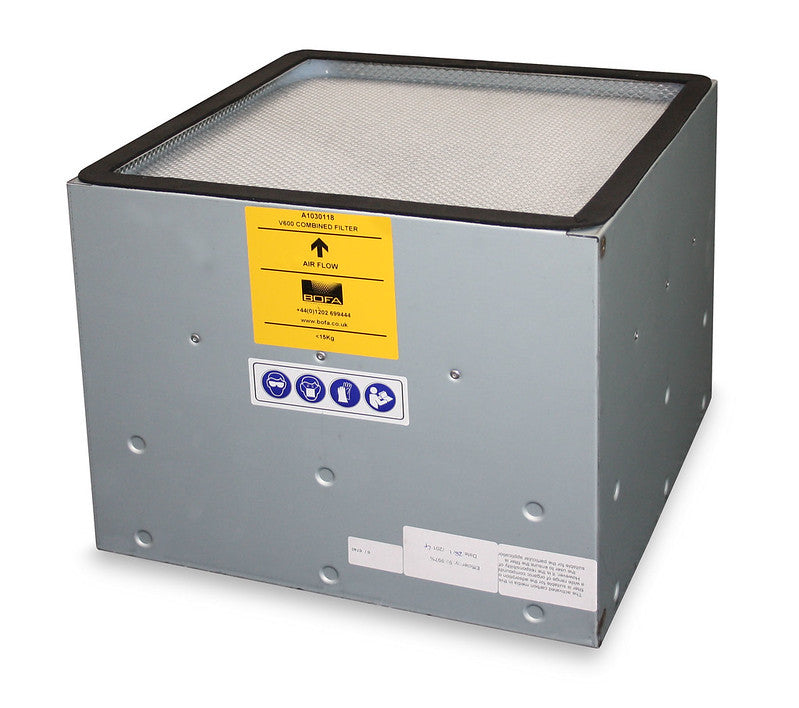

BOFA AD 250/350/V 600 Combined Filter (Part No: 1UA1030055)

Donaldson BOFA · Replacement filter

BOFA AD 250/350/V 600 Combined Filter 1UA1030055

Combined filter · Single filter · Previously A1030055

HEPA 99.997% at 0.3 µmper the Donaldson BOFA AD 350 datasheet

Price $478.00

Donaldson list $514.00 · each

Ordering for several machines or on a purchase order? Quotes and purchase orders

  • Authorized Donaldson BOFA distributor
  • Ships from US stock
  • Free UPS Ground on orders of $500 or more
  • Business accounts: purchase orders and tax-exempt accepted
  • Questions? Send us a message

Does it fit my machine?

We’ll keep your model for this visit.

Pick your model to check the fit.

Or check the list of models.

Not sure which model you have? Send us a message

Fits these BOFA models (3)

Fits these older models (1)

Model not listed? Send us a message

Complete the set

Complete the set

Pick your model under “Does it fit my machine?” to see the filters that go with this one. We only show filters that fit the model you pick.

Specifications

1UA1030055 specifications

Donaldson BOFA combined HEPA/gas replacement filter for the AD 350 and V 600 fume extraction systems. Provides 99.997% efficiency at 0.3 microns with 7.5 kg of impregnated activated carbon.
1UA1030055 specifications
TypeCombined filter: HEPA and activated carbon
HEPA efficiency99.997% at 0.3 µm
HEPA media area22.6 ft² (2.1 m²)
Activated carbon7.5 kg (16.5 lb)
Filter spec sheet (2018)99.997% at 0.3 µm, 7.5 kg carbon
CaseZinc-plated steel, sealed with polyurethane
ConnectionNeoprene gasket
Size (H × W × D)290 × 360 × 360 mm approx. (11.4 × 14.2 × 14.2 in)
Pack sizeSingle filter
Part number1UA1030055 (label may show A1030055)

HEPA efficiency, HEPA media area and activated carbon: Donaldson BOFA AD 350 datasheet (US, v1.7). Other rows: Donaldson filter spec sheet EFS00016 (2018).

Replacing it

Pick your model to see Donaldson’s filter-change video for it.

Filter help

Not sure which filter you have?

Send us the model and the part number from the filter’s label. We’ll confirm the match before you order.

Send us a message

Buying for a business?

Purchase orders and tax-exempt accounts for labs, schools and shops.

Quotes and purchase orders
