Donaldson BOFA · Laser fume extractor
Light-duty laser use. Options add a VOC sensor and remote signals.
From Price $2,537.45
Donaldson list $2,671.00
Need a hose kit or accessories? Send us a message
Taxes and shipping are calculated at checkout. Buying for a business? Purchase orders and tax-exempt accounts
Specifications

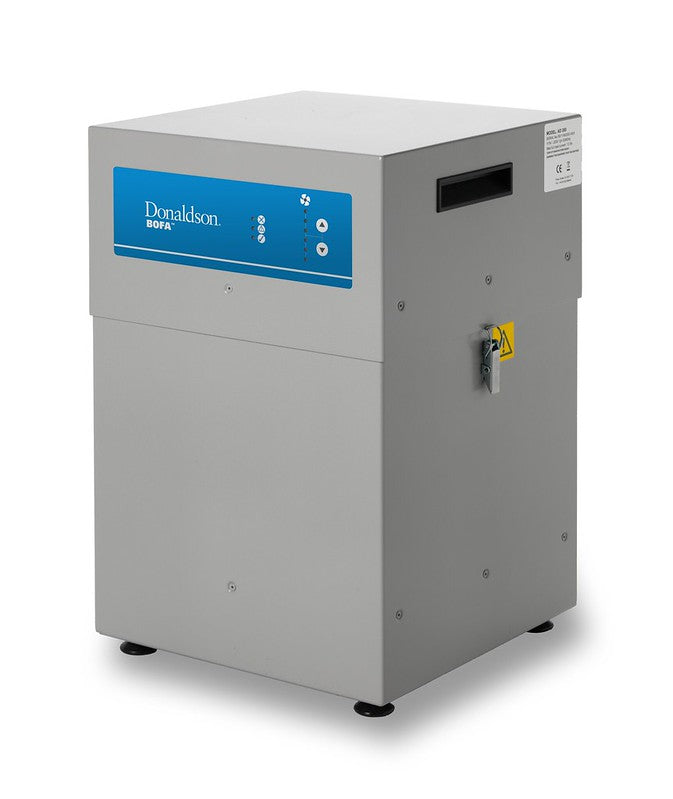

The BOFA AD 350 is a compact fume extraction system designed for light-duty laser marking, coding, and engraving applications. With a small footprint, low noise levels, and long-life replacement filters, it effectively removes fumes and particulate to protect equipment, maintain quality, and reduce contaminants.
| Application | Light-duty laser applications |
|---|---|
| Controls | Not published |
| Connectivity | Not published |
| Versions | 115 V; 4 options: standard, VOC sensor, remote signals (24 V stop/start, System OK, override), or both |
| Cabinet | Powder-coated |
| Airflow | 206 cfmTest conditions not stated on the datasheet. |
| Settable airflow range | Not published |
| Pressure | 96 mbar |

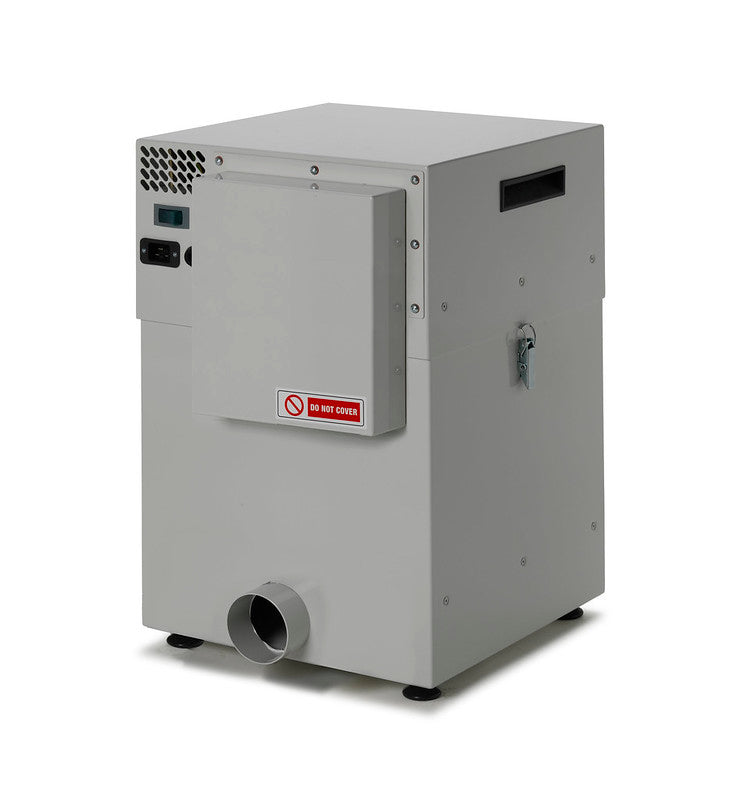

| Inlet | 3.9 in · 100 mm |

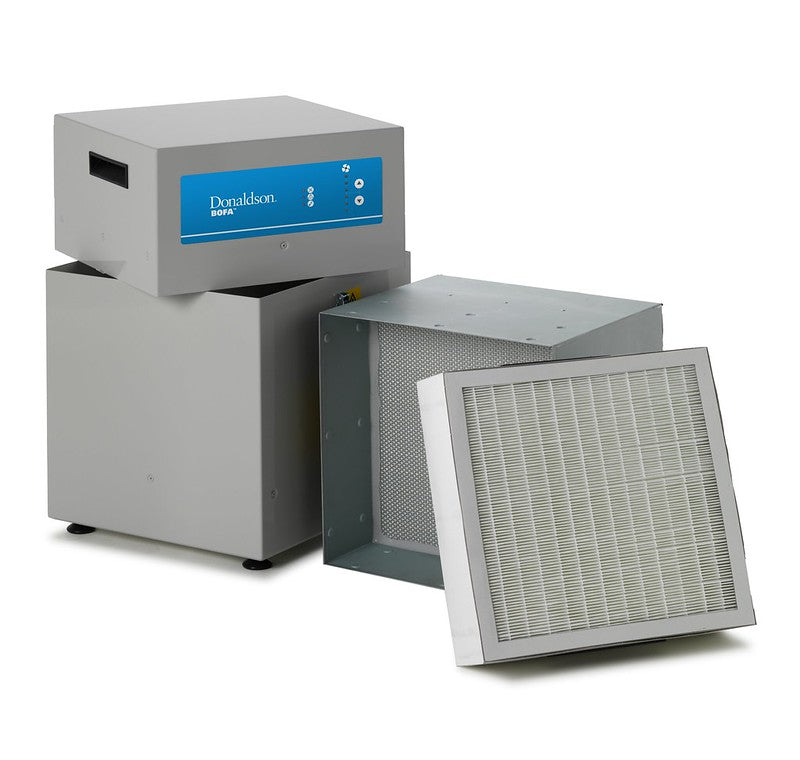

| Pre-filter | DeepPleat, 95% at 0.9 µm · 1UA1030056 |
| Combined filter | HEPA 99.997% at 0.3 µm, 16.5 lb carbon · 1UA1030055 |
| Other filters | Combined filter for NOx · 1UA1030355 |
| Electrical, as sold | 115 V, 60 Hz; 12.5 A full load |
| Size (H × W × D) | 23.2 × 14.8 × 18.3 in |
| Weight | 77 lb |
| Noise, typical | < 62 dB(A) |
Replacement filters
Order only the ones you’re replacing.
Stage 1 of 2 · DeepPleat pre-filter
Stage 2 of 2 · Combined filter
3 versions · choose one. Match the part number on the label of the combined filter you’re replacing.
Not sure which filter you need?
Send us a messageModel name
On the rating label on the side or rear of the unit. The label also shows the serial number. Position varies by model.
Filter part number
On the label of the filter you’re replacing, for example 1UA1030155. Older labels may show the same number without the 1U.
Price
per filter
Available to order
Price shows once you choose a version.
Choose a version first
We’ll check if we can supply it.
Priced per filter · Available to order
Product detailsHow to check
Look at the label on the in your unit and match the part number: .
Still not sure? Send us the model and serial number from the rating label and we’ll confirm the version before you order.
Price
per filter
Available to order
Price shows once you choose a version.
Choose a version first
We’ll check if we can supply it.
Order the exact number on your filter’s label. Different part numbers are different filters, even when they look alike.
Price
per filter
Help choosing
Tell us your laser model and what you cut or engrave. We’ll help you choose the version, hose kit and add-ons.
Send us a messagePurchase orders, tax-exempt accounts and formal quotes.
Quotes and purchase orders

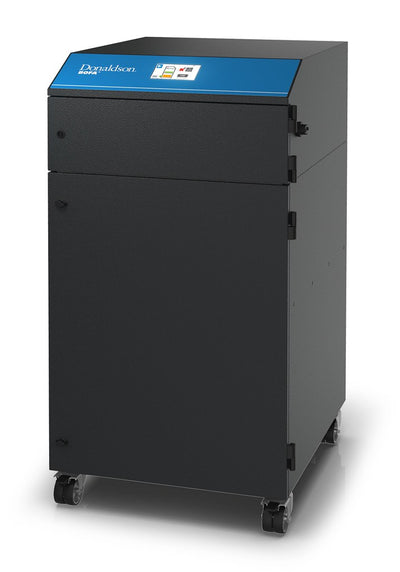

Medium to heavy-duty. Color touchscreen with filter-life monitor.
515 cfm unrestricted · 4.92 in · 115 V
From $6,859.00 Donaldson list $7,220.00
View details

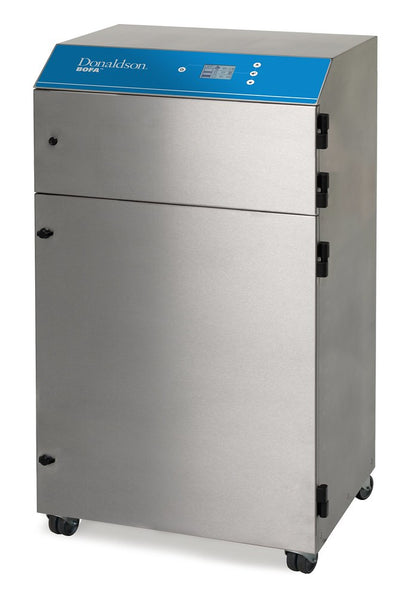

Built for lasering PVC: HCl and VOC sensors, acid-resistant coatings.
206 cfm · 2.9 in inlet · 115 V
$7,144.00 Donaldson list $7,520.00
View details

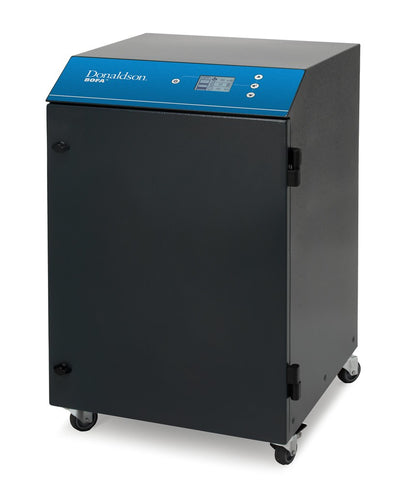

Mid-sized, for lighter-use laser applications. iQ display.
223 cfm · 2.9 in inlet · 115 V
From $3,343.05 Donaldson list $3,519.00
View details

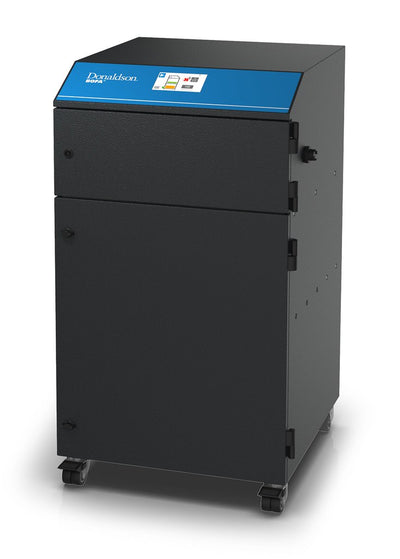

Mid-sized. Color touchscreen, data stream and Ethernet port.
