A1030094 - BOFA Filter - T 15 - Combined

Manufacturer part number: 1UA1030094  (old part no A1030094)

Technical Specifications:

• Type: Combined Filter
• Dimensions (mm): 150mm H x 196mm W x 196mm D (Approx.)
• Filter Media 1: Pleated glass fiber material
• Filter Media 2: Impregnated Activated Carbon
• Fabrication: Zinc plated Steel case, sealed with Polyurethane sealant
• Connection: Neoprene Gasket
• Efficiency: 99.997% removal of 0.3μm particles
• Carbon Weight: 1 kg

The T15 Combined Filter (Part Number A1030094), a high-performance BOFA replacement filter designed to provide exceptional filtration efficiency. This filter is ideal for various applications and is specifically crafted to remove 99.997% of 0.3μm particles, ensuring a clean and safe environment.

The T15 Combined Filter features a pleated glass fibre material as its primary filter media, effectively trapping particulates. The secondary filter media consists of impregnated activated carbon, which is adept at adsorbing gases and odors.

Designed with durability and longevity in mind, the T15 filter is encased in a zinc plated steel case and sealed with polyurethane sealant to protect against harsh conditions. The filter is also equipped with a neoprene gasket to ensure a secure and leak-free connection.

Measuring approximately 150H x 196W x 196D mm, this compact filter is suitable for various applications. Moreover, the filter materials are non-toxic, allowing for easy disposal under normal waste conditions, subject to analysis of the collected particulate and/or gas.

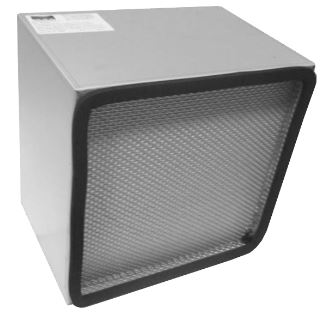

Image for illustration purposes only
