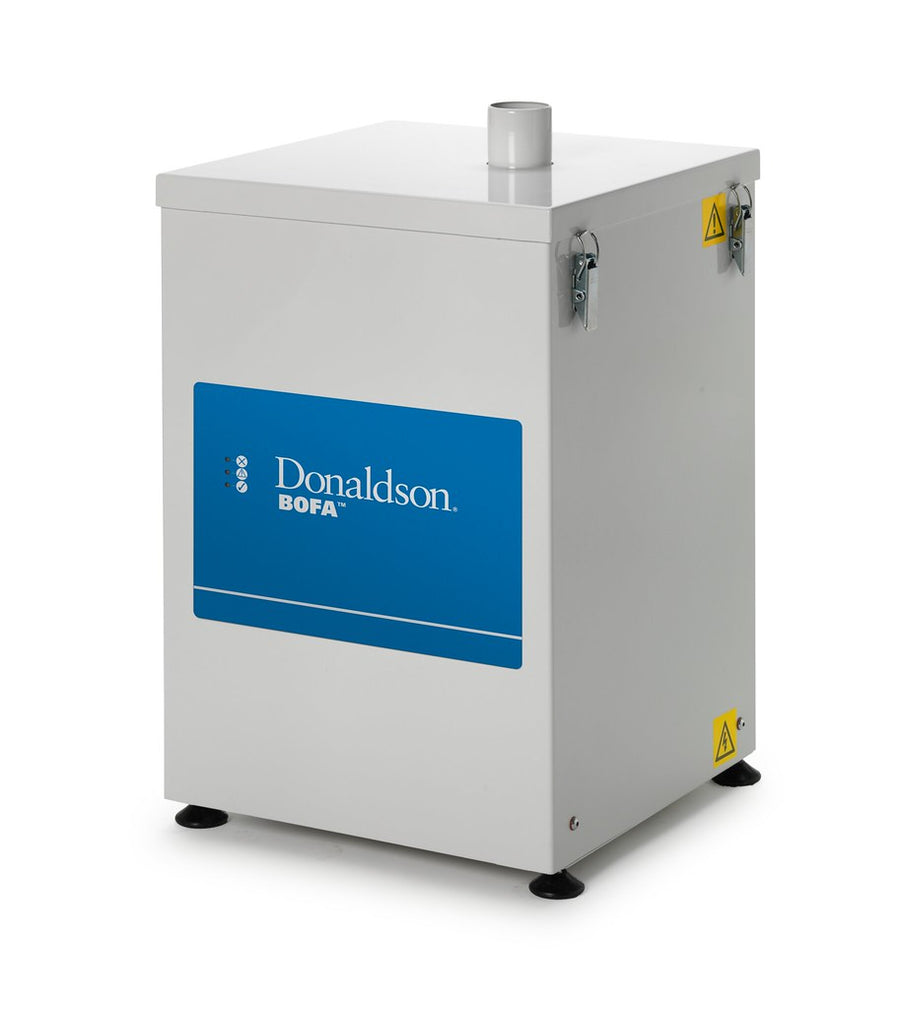

Donaldson BOFA · Electronics and soldering fume extractor

T-15

Tip extraction for hand soldering, up to 15 operators.

Price $3,197.70

Donaldson list $3,366.00

SKU1U10765581-1454
Airflow
22 l/min
per tip
Pressure
100 mbar
Inlet
2.0 in
50 mm
Power
115 V

Datasheet (PDF)

  • Authorized Donaldson BOFA distributor
  • Ships to the contiguous US · shipping calculated at checkout
  • Business accounts: purchase orders and tax-exempt accepted
  • Current lead time, or shipping to Hawaii, Alaska or outside the US? Send us a message
Request a quote

Need a hose kit or accessories? See hose kits and add-ons or send us a message

Taxes and shipping are calculated at checkout. Buying for a business? Purchase orders and tax-exempt accounts

Hose kits and add-ons

Accessories for the T-15

Listed for the T-15. Open one to check how it connects before you order.

All filters and parts for the T-15

Specifications

T-15 specifications

The Donaldson BOFA T-15 is a compact, high-vacuum tip extraction system designed for hand soldering environments, supporting up to 15 operators simultaneously. Using microextraction technology, the T-15 captures solder fumes directly at the soldering tip for maximum operator protection. With 22 l/min airflow per tip, less than 65 dB(A) noise level, and 99.995% HEPA filtration at 0.3 microns combined with activated carbon gas filtration, the T-15 is ideal for electronics manufacturing facilities requiring close-proximity fume capture across multiple workstations.

T-15 specifications
Application Hand soldering, up to 15 operators
Controls Not published
Connectivity Not published
Configuration 115 V
Cabinet Powder-coated
Airflow 22 l/min per tipTest conditions not stated on the datasheet.
Settable airflow range Not published
Pressure 100 mbar
Inlet 2.0 in · 50 mm
Pre-filter F7, pack of 5 · 1UA1030095
Combined filter HEPA 99.995% at 0.3 µm, 2.2 lb carbon · 1UA1030094
Electrical, as sold 115 V, 60 Hz; 6 A full load
Size (H × W × D) 22.6 × 14.5 × 13.4 in
Weight 65 lb
Noise, typical < 65 dB(A)

Documents

T-15 Spec Sheet (PDF)

T-15 User Manual (PDF)

Replacement filters

Filters for the T 15

Order only the ones you’re replacing.

Open in the filter finder

    1. Stage 1 of 2 · Pre-filter (pack of 5)

    2. Stage 2 of 2 · Combined HEPA + gas filter

    Not sure which filter you need?

    Send us a message
    Where to find the model and part number

    Model name

    On the rating label on the side or rear of the unit. The label also shows the serial number. Position varies by model.

    Filter part number

    On the label of the filter you’re replacing, for example 1UA1030155. Older labels may show the same number without the 1U.
