Donaldson BOFA · Replacement filter
BOFA AD Access Combined Filter 1UA1030154
HEPA 99.995% at 0.3 µmper the Donaldson BOFA AD Access datasheet
Price $395.00
Donaldson list $425.00 · each
Ordering for several machines or on a purchase order? Quotes and purchase orders
- Authorized Donaldson BOFA distributor
- Ships from US stock
- Free UPS Ground on orders of $500 or more
- Business accounts: purchase orders and tax-exempt accepted
- Questions? Send us a message
Does it fit my machine?
No BOFA model matches. Send us a message
We’ll keep your model for this visit.
Not sure which model you have? Send us a message
Filter version
Match the part number on the label of the filter you’re replacing. The versions aren’t interchangeable, so we don’t pick one for you.
I’m not sure which version I have.Send us a messageThe part number goes with it.
Complete the set
Complete the set
Pick your model under “Does it fit my machine?” to see the filters that go with this one. We only show filters that fit the model you pick.
Specifications
1UA1030154 specifications

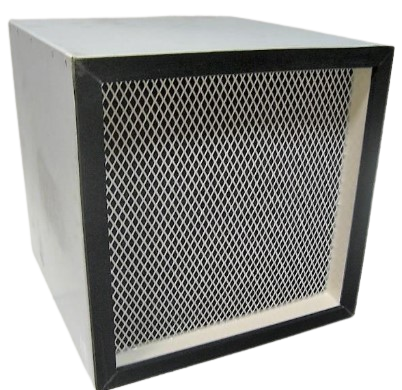

Donaldson BOFA combined HEPA and activated carbon replacement filter for the AD Access fume extraction system. Part number 1UA1030154 (previously A1030154).
| Type | Combined filter: HEPA and activated carbon |
|---|---|
| HEPA efficiency | 99.995% at 0.3 µm |
| HEPA media area | 21.5 ft² (2.0 m²) |
| Activated carbon | 15.4 lb (7 kg) |
| Filter spec sheet (2018) | 99.997% at 0.3 µm, about 7 kg carbon |
| Case | Zinc-plated steel, sealed with polyurethane |
| Connection | Neoprene gasket |
| Size (H × W × D) | 290 × 290 × 290 mm approx. (11.4 × 11.4 × 11.4 in) |
| Pack size | Single filter |
| Part number | 1UA1030154 (label may show A1030154) |
HEPA efficiency, HEPA media area and activated carbon: Donaldson BOFA AD Access datasheet (US, v1.6). Other rows: Donaldson filter spec sheet EFS00004 (2018).
Replacing it
Donaldson BOFA, on YouTubePick your model to see Donaldson’s filter-change video for it. Send us a message
Filter help
Not sure which filter you have?
Send us the model and the part number from the filter’s label. We’ll confirm the match before you order.
Send us a messageBuying for a business?
Purchase orders and tax-exempt accounts for labs, schools and shops.
Quotes and purchase ordersPart no.
One set per machine
Each filter goes in the cart as its own line.
