Donaldson BOFA · Laser fume extractor
Compact, for light-duty laser use. Standard option has a hose kit.
From Price $1,630.20
Donaldson list $1,716.00
Need a hose kit or accessories? Send us a message
Taxes and shipping are calculated at checkout. Buying for a business? Purchase orders and tax-exempt accounts
Specifications

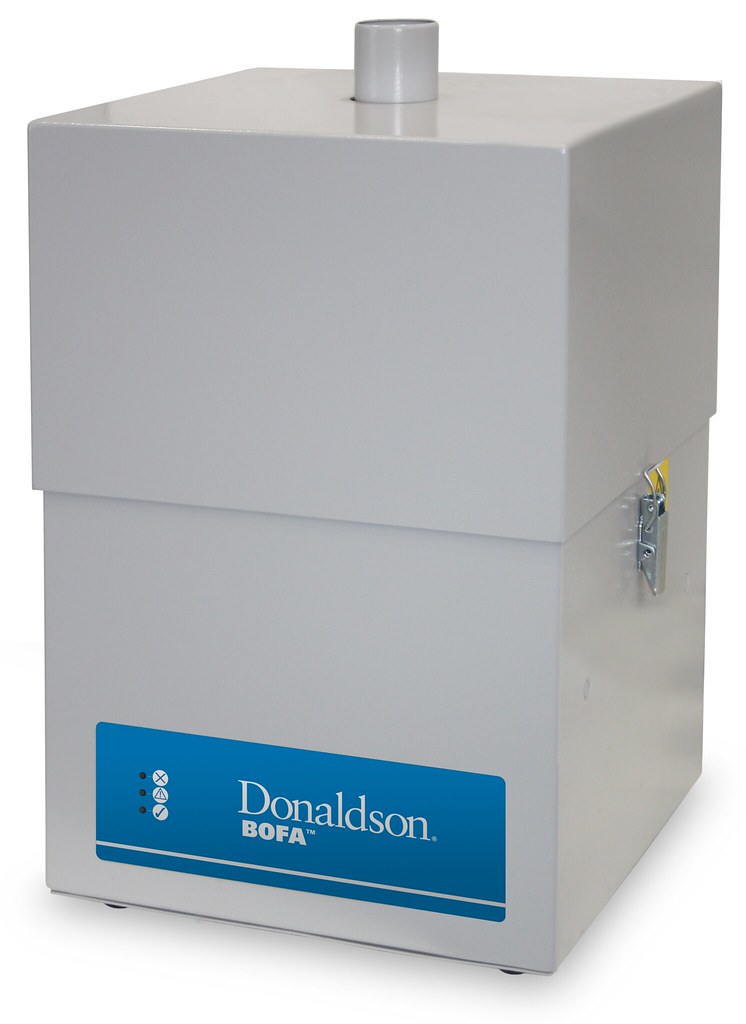

The Donaldson BOFA AD Access is a compact, entry-level fume extraction system designed for light-duty laser applications including engraving and cutting. The smallest unit in the AD range, it delivers quiet operation below 61 dB(A) with long-life, low-cost replacement filters. Available in two configurations: Standard (hose kit included) and With VOC sensor (no hose kit).
| Application | Light-duty laser applications |
|---|---|
| Controls | Not published |
| Connectivity | Not published |
| Versions | 115 V; 2 options: standard (hose kit included) or with VOC sensor (no hose kit) |
| Cabinet | Powder-coated |
| Airflow | 106 cfmTest conditions not stated on the datasheet. |
| Settable airflow range | Not published |
| Pressure | 30 mbar |
| Inlet | 2.0 in · 50 mm |
| Pre-filter | DeepPleat, ePM1 70% · 1UA1030153 |
| Combined filter | HEPA 99.995% at 0.3 µm, 15.4 lb carbon · 1UA1030154 |
| Electrical, as sold | 115 V, 60 Hz; 1.5 A full load |
| Size (H × W × D) | 19.9 × 13.2 × 12.4 in |
| Weight | 53 lb |
| Noise, typical | < 56 dB(A) at 115 V |
Standard option includes a hose kit
Replacement filters
Order only the ones you’re replacing.
Stage 1 of 2 · Pre-filter

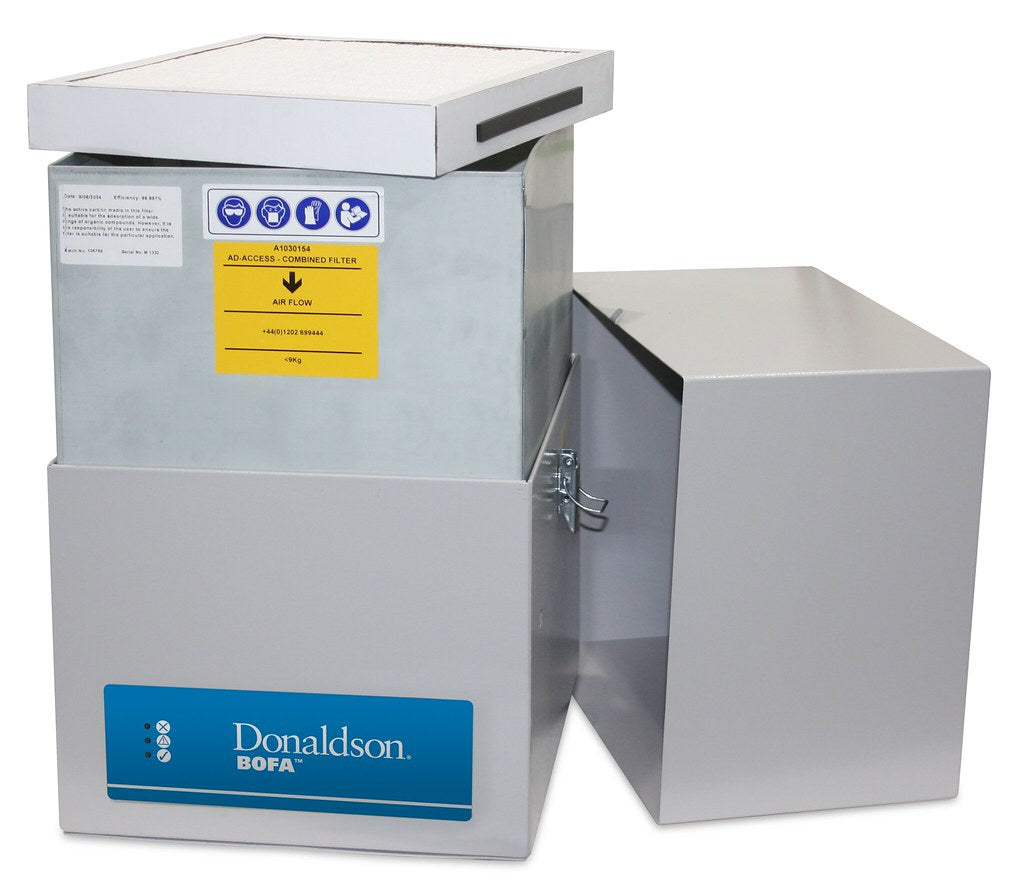

Stage 2 of 2 · Combined HEPA + gas filter
Not sure which filter you need?
Send us a messageModel name
On the rating label on the side or rear of the unit. The label also shows the serial number. Position varies by model.
Filter part number
On the label of the filter you’re replacing, for example 1UA1030155. Older labels may show the same number without the 1U.
Price
per filter
Available to order
Price shows once you choose a version.
Choose a version first
We’ll check if we can supply it.
Priced per filter · Available to order
Product detailsHow to check
Look at the label on the in your unit and match the part number: .
Still not sure? Send us the model and serial number from the rating label and we’ll confirm the version before you order.
Price
per filter
Available to order
Price shows once you choose a version.
Choose a version first
We’ll check if we can supply it.
Order the exact number on your filter’s label. Different part numbers are different filters, even when they look alike.
Price
per filter
Help choosing
Tell us your laser model and what you cut or engrave. We’ll help you choose the version, hose kit and add-ons.
Send us a messagePurchase orders, tax-exempt accounts and formal quotes.
