1UA1020052
Donaldson BOFA · Fume cabinet
FumeCAB 250 1UA1020127
Price $695.40
Donaldson list $732.00 · each
Ordering for several machines or on a purchase order? Quotes and purchase orders
- Authorized Donaldson BOFA distributor
- Ships from US stock
- Free UPS Ground on orders of $500 or more
- Business accounts: purchase orders and tax-exempt accepted
- Questions? Send us a message
Specifications
FumeCAB 250 specifications

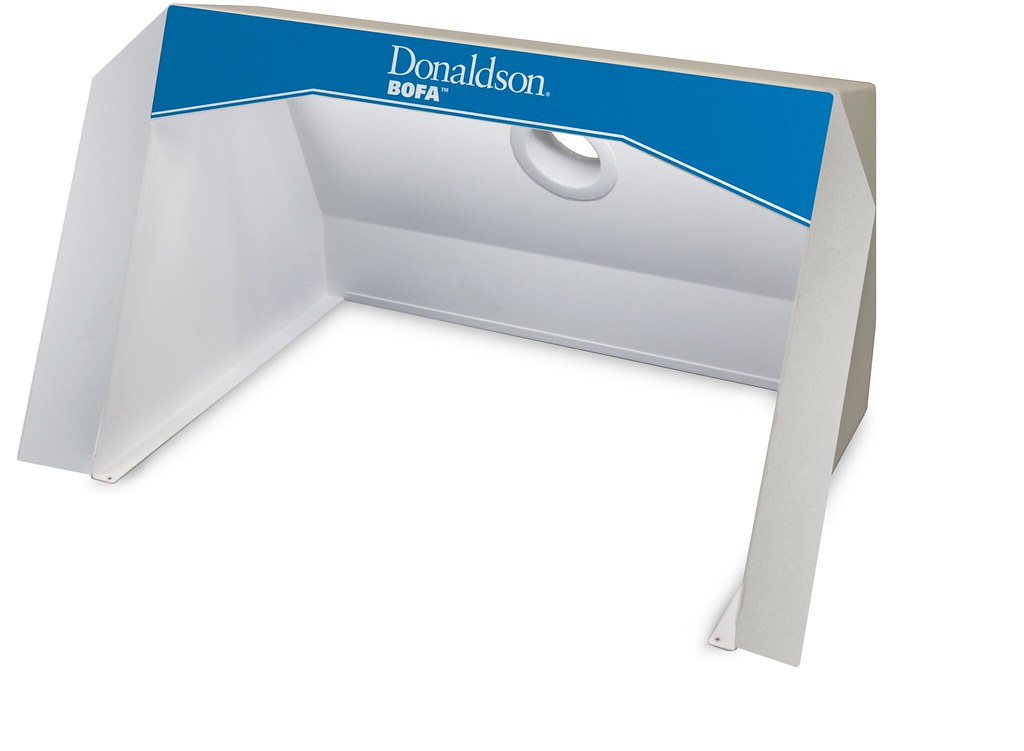

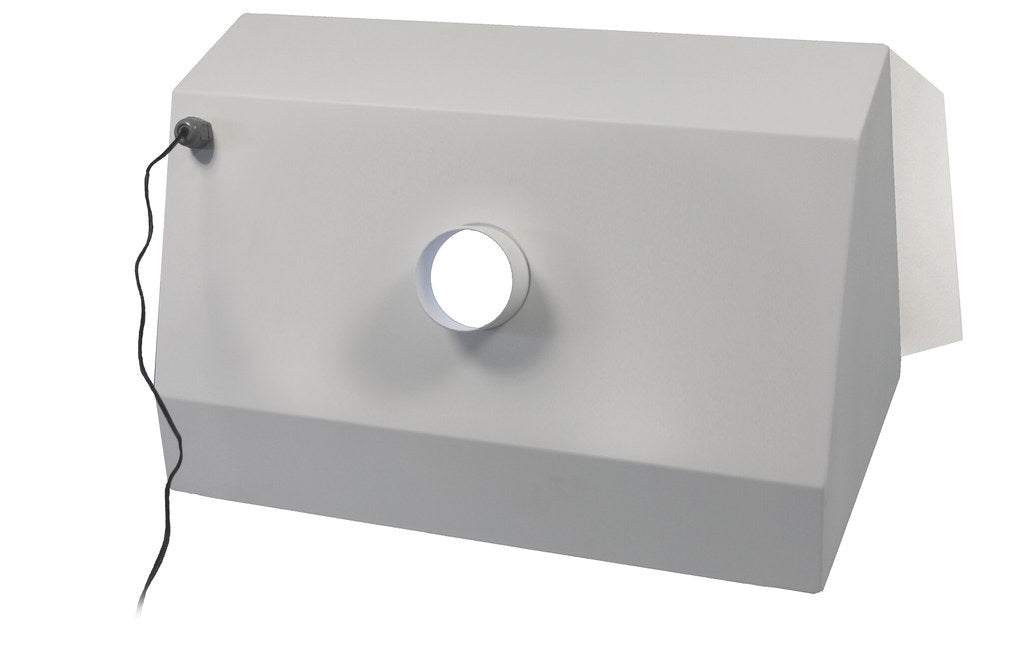

Donaldson BOFA FumeCAB 250, a small fume cabinet for a wide range of applications, designed to work with the V 250 extractor. Powder-coated steel with an LED light, a 10.4 × 15.8 in working opening and a 75 mm (3.0 in) air outlet; it comes with a single 75 mm hose kit, 1.5 m (4.9 ft) long. V 250 Compatibility: The FumeCAB 250 includes a 75 mm connection hose. Standard BOFA V 250 extractors have 50 mm inlets. To connect using the supplied 75 mm hose, the V 250 requires the optional single 75 mm inlet lid (part 1UA1060062), unless already equipped with this lid. If purchasing the FumeCAB separately, check your existing V 250 configuration before ordering. Part number 1UA1020127.
| Type | Fume cabinet |
|---|---|
| Size (H × W × D) | 11.4 × 15.8 × 11.8 in (290 × 400 × 300 mm) |
| Working opening (H × W) | 10.4 × 15.8 in |
| Face velocity | 118 ft/min recommended |
| Air outlet | 75 mm (3.0 in) |
| Includes | Single 75 mm (3.0 in) hose kit, 1.5 m (4.9 ft) |
| Weight | 7 lb (3 kg) |
| Construction | Powder-coated mild steel (RAL 9016), LED light |
| V 250 | Standard 50 mm inlets; the supplied 75 mm hose needs the optional single 75 mm inlet lid 1UA1060062, unless the V 250 already has it |
| Part number | 1UA1020127 |
| Fits | V 250 |
Source: Donaldson BOFA FumeCAB 250 data sheet (V1.1)
Spec sheet (PDF)DS-FUMECAB-250-BOFA-US-V1.1.pdf
