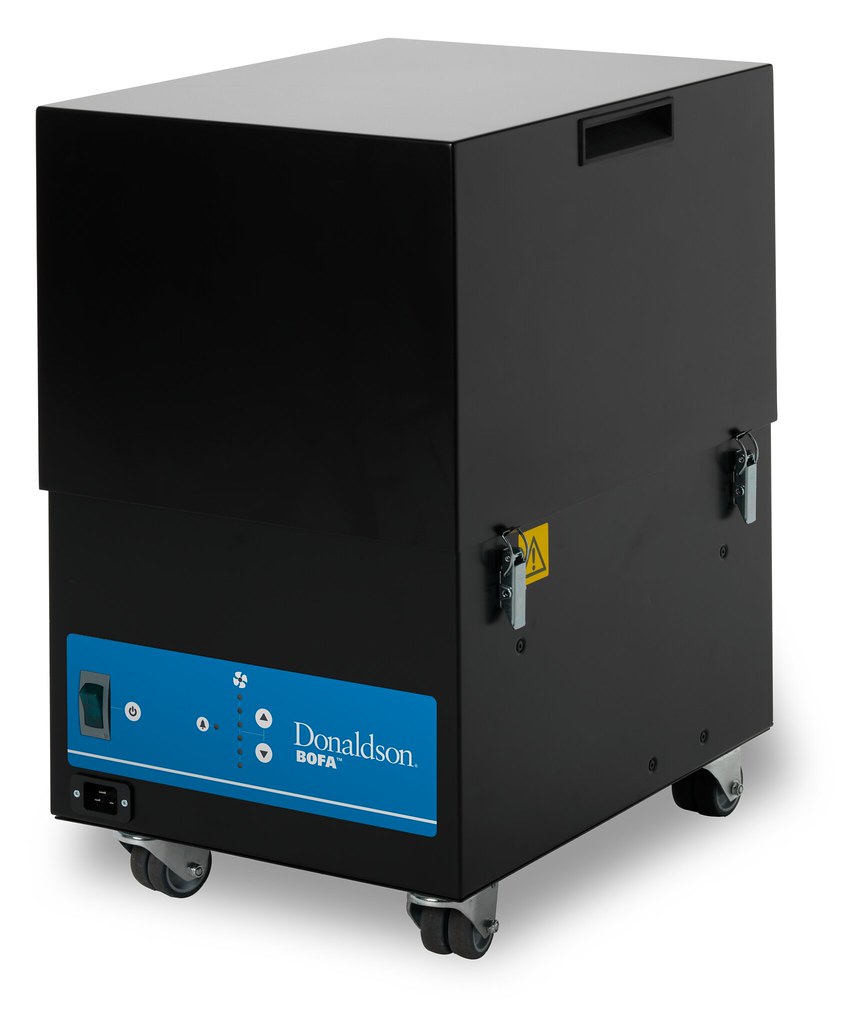

Donaldson BOFA · Fume extractor
Compact system for printing applications, with three inlet sizes.
From Price $3,441.85
Donaldson list $3,623.00
Need a hose kit or accessories? Send us a message
Taxes and shipping are calculated at checkout. Buying for a business? Purchase orders and tax-exempt accounts
Specifications
The Donaldson BOFA PrintPRO Universal is a fume extraction system designed for a wide range of printing applications. With a built-in VOC sensor and HEPA and activated carbon filtration, this system provides effective fume and odor capture for commercial printing environments. It runs on 115 V.
| Application | Printing applications |
|---|---|
| Controls | Not published |
| Connectivity | Not published |
| Configuration | 115 V, VOC sensor, USA lead cable |
| Cabinet | Powder-coated |
| Airflow | 223 cfmTest conditions not stated on the datasheet. |
| Settable airflow range | Not published |
| Pressure | 96 mbar |
| Inlet | 1.3, 1.5 or 3.9 in |
| Pre-filter | Not applicable |
| Combined filter | HEPA 99.995% at 0.3 µm, 31.2 L carbon · 1UA1030157 |
| Electrical, as sold | 115 V, 60 Hz; 12.5 A full load |
| Size (H × W × D) | 24.6 × 15.2 × 20.7 in |
| Weight | 113 lb |
| Noise, typical | < 68 dB(A) |
Replacement filters
Order only the ones you’re replacing.
Stage 1 of 1 · Combined filter
2 versions · choose one. Match the part number on the label of the combined filter you’re replacing.
Not sure which filter you need?
Send us a messageModel name
On the rating label on the side or rear of the unit. The label also shows the serial number. Position varies by model.
Filter part number
On the label of the filter you’re replacing, for example 1UA1030155. Older labels may show the same number without the 1U.
Price
per filter
Available to order
Price shows once you choose a version.
Choose a version first
We’ll check if we can supply it.
Priced per filter · Available to order
Product detailsHow to check
Look at the label on the in your unit and match the part number: .
Still not sure? Send us the model and serial number from the rating label and we’ll confirm the version before you order.
Price
per filter
Available to order
Price shows once you choose a version.
Choose a version first
We’ll check if we can supply it.
Order the exact number on your filter’s label. Different part numbers are different filters, even when they look alike.
Price
per filter
Help choosing
Tell us about your process and what you need. We’ll help you choose the setup.
Send us a messagePurchase orders, tax-exempt accounts and formal quotes.
Quotes and purchase orders
