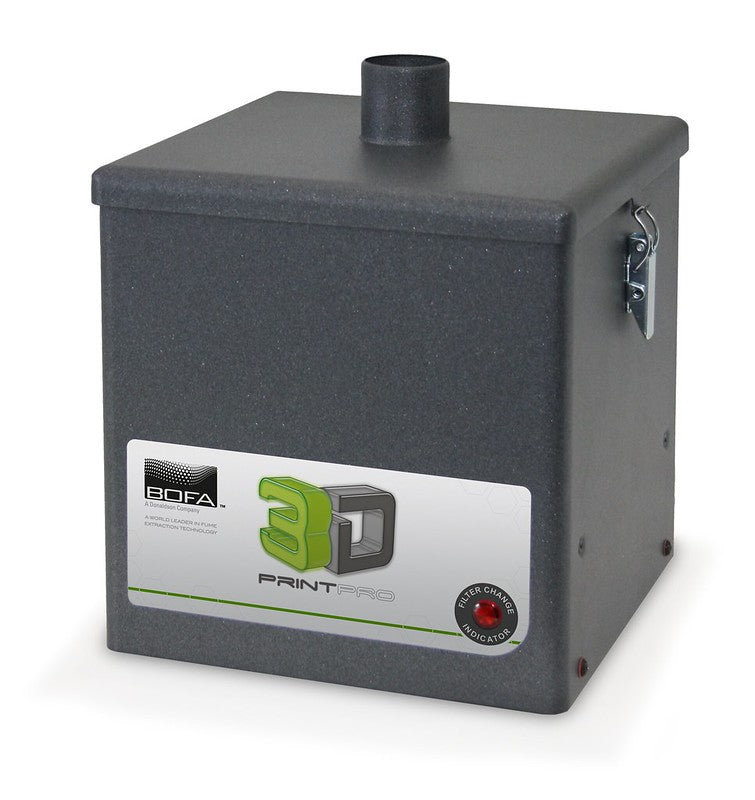

Donaldson BOFA · 3D printing fume extractor
Compact system for 3D printers. Unit only, no hose kit.
From Price $801.80
Donaldson list $844.00
Need a hose kit or accessories? Send us a message
Taxes and shipping are calculated at checkout. Buying for a business? Purchase orders and tax-exempt accounts
Specifications
The Donaldson BOFA 3D PrintPRO 2 is an affordable, compact filtration and atmosphere management system for open-framed 3D printers. Designed to filter fumes generated during printing without cooling the filament deposition area, the PrintPRO 2 features 27 cfm airflow, three-stage filtration with 99.995% HEPA efficiency at 0.3 microns and activated carbon gas filtration, all in a quiet package operating below 44 dB(A). This configuration includes the unit only — no hose kit.
| Application | Compact system for 3D printers |
|---|---|
| Controls | Not published |
| Connectivity | Not published |
| Configuration | 115 V; no options |
| Cabinet | Powder-coated |
| Airflow | 27 cfmTest conditions not stated on the datasheet. |
| Settable airflow range | Not published |
| Pressure | 9 mbar |
| Inlet | 2.0 in · 50 mm |
| Pre-filter | Pad, 96% at 2 µm, pack of 5 · 1UA1030102 |
| Combined filter | HEPA 99.995% at 0.3 µm, 3.0 L carbon · 1UA1030099 |
| Electrical, as sold | 115 V, 60 Hz; 1.3 A |
| Size (H × W × D) | 13.0 × 11.4 × 10.6 in |
| Weight | 17 lb |
| Noise, typical | < 44 dB(A) |
Unit only
Replacement filters
Order only the ones you’re replacing.
Stage 1 of 2 · Pre-filter pad (pack of 5)

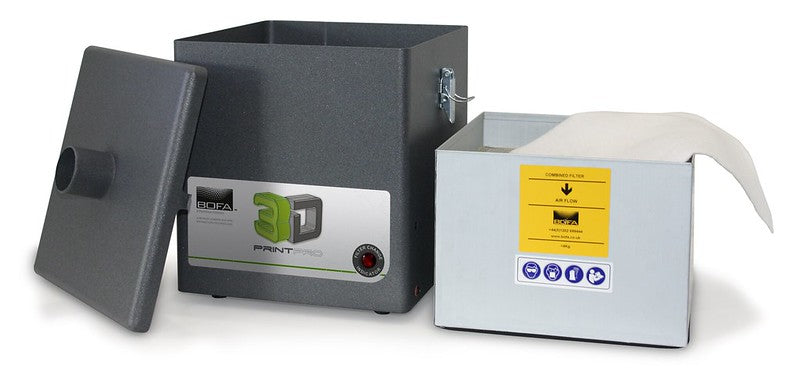

Stage 2 of 2 · Combined HEPA + gas filter
Not sure which filter you need?
Send us a messageModel name
On the rating label on the side or rear of the unit. The label also shows the serial number. Position varies by model.
Filter part number
On the label of the filter you’re replacing, for example 1UA1030155. Older labels may show the same number without the 1U.
Price
per filter
Available to order
Price shows once you choose a version.
Choose a version first
We’ll check if we can supply it.
Priced per filter · Available to order
Product detailsHow to check
Look at the label on the in your unit and match the part number: .
Still not sure? Send us the model and serial number from the rating label and we’ll confirm the version before you order.
Price
per filter
Available to order
Price shows once you choose a version.
Choose a version first
We’ll check if we can supply it.
Order the exact number on your filter’s label. Different part numbers are different filters, even when they look alike.
