VLS Desktop
VLS2.30DT
A compact workhorse for small parts and everyday projects.
A desktop laser with a 16 × 12 in work area and one CO₂ laser up to 30 W. It runs from a standard 110V outlet.
- Processing area (W × D)
- 16 × 12 in
- Max material height
- 4 in
- Max laser power
- 30 W
- Laser sources
- 1
Request a quote for this system. Universal laser systems are quoted to your configuration: laser wattage, options and accessories.
Request a quote Send us a messageDownload the spec sheet (PDF)Who it’s for
Is the VLS2.30DT the right fit?
For a small business, school workshop, or dedicated workstation inside a larger operation, the VLS2.30DT brings Universal laser capability to a compact desktop format. Its 16 × 12-inch work area suits smaller pieces, personalized products, and classroom projects. It is a practical choice when your work fits a smaller bed and you want equipment you can make part of your operation for the long term.
Where it fits
Small businesses
Make individual pieces and short runs without dedicating floor space to a larger platform.
Education
Give students a way to turn designs into physical projects in a suitably equipped teaching space.
Established operations
Add a dedicated station for smaller jobs while reserving larger equipment for larger work.
Overview
About the VLS2.30DT
The VLS2.30DT is the smallest system in the VLS Desktop family: a desktop laser with a 16 × 12 in work area and up to 4 in of material height. It takes one CO₂ laser of 10 or 30 W at 10.6 µm, or 30 W at 9.3 µm, and has a motorized Z-axis. It runs from a standard 110V/10A outlet (or 220–240V/5A) and needs one 3″ exhaust port with 150 CFM at 6 in static pressure. The UCP driver with its materials database runs on a dedicated Windows PC (Windows 7 to 11), connected by USB.
VLS2.30DT
Specifications
Work area
- Processing area (W × D)
- 16 × 12 in
- Max material height
- 4 in
Laser
- Max laser power
- 30 W
- Laser sources
- 1
- 10.6 µm CO₂ wattages
- 10, 30 W
- 9.3 µm CO₂ wattages
- 30 W
- 1.06 µm fiber laser
- CO₂ only
Features
- Key features
- Compact desktop footprint · standard 110V outlet · motorized Z-axis
- Rotary fixture (optional accessory)
- 0.5–5 in diameter
Site requirements

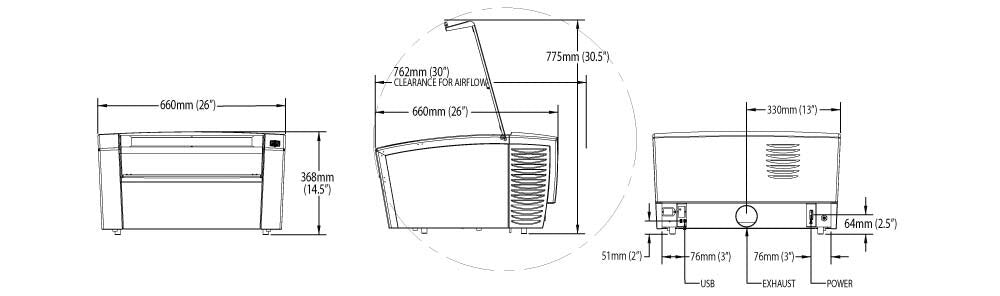

- Style and size (W × D × H)
- Desktop · 26 × 25 × 14 in
- Weight
- 70 lb
- Electrical
- 110V/10A or 220–240V/5A
- Exhaust requirement
- One 3″ port · 150 CFM @ 6 in static pressure
- Software and computer
- UCP driver with materials database · dedicated Windows PC (7–11), USB
From the ULS VLS Desktop series spec sheet REV2024.10.
VLS Desktop
Other VLS Desktop models
Ownership
Equipment for the long term. Support beyond the sale.
A laser becomes part of how your business works—or how your students learn. Choosing one means thinking beyond the first project. Abernethy Beck can help you select a system for today’s work, then support ownership with replacement parts, optics, laser cartridge exchange options, and guidance as your needs change.
Documents
Have an application in mind?
Whether you’re considering VLS, PLS, or ULTRA, we can coordinate material testing with the Universal Laser Systems Applications Lab. Evaluate how your materials respond and review the results before selecting a system—especially valuable for demanding R&D and precision applications. Share your materials and the results you need in the form below.
Parts and supplies
Replacement parts that fit the VLS2.30DT, listed by part number.
Exhaust for this laser
Exhaust requirement
One 3″ port · 150 CFM @ 6 in static pressure
The VLS2.30DT needs exhaust airflow while it runs. You can vent it outside through ducting with a blower that meets this requirement. If you can’t vent outside, use a fume extractor: it filters the air and returns it to the room.
Questions
Questions about the VLS2.30DT
What does my site need for the VLS2.30DT?
Electrical: 110V/10A or 220–240V/5A. Exhaust: One 3″ port, 150 CFM @ 6 in static pressure. Software and computer: UCP driver with materials database, dedicated Windows PC (7–11), USB.
Do I need a fume extractor for the VLS2.30DT?
Not always. The VLS2.30DT needs exhaust airflow while it runs (see the exhaust requirement in the specifications). You can vent it outside through ducting with a blower that meets that requirement. If you can’t vent outside, a fume extractor filters the air and returns it to the room. We can suggest one for your space.
Can I order with a purchase order?
Yes. Schools, labs, government buyers and companies can order on a purchase order. See quotes and purchase orders for how it works.
Can I finance this?
Yes. We work with several equipment-financing partners. See our equipment financing options for details and to get started.
