VLS Desktop
VLS3.60ES
A desktop workhorse with a clearer view of your setup.
Camera alignment
A desktop laser with a 24 × 12 in work area, one CO₂ laser up to 60 W and a door-mounted camera for lining up your work.
- Processing area (W × D)
- 24 × 12 in
- Max material height
- 4 in
- Max laser power
- 60 W
- Laser sources
- 1
Request a quote for this system. Universal laser systems are quoted to your configuration: laser wattage, options and accessories.
Request a quote Send us a messageDownload the spec sheet (PDF)Who it’s for
Is the VLS3.60ES the right fit?
The VLS3.60ES pairs everyday laser capability with a door-mounted camera for lining up work on screen. For a personalization business, design studio, or teaching lab, that visual approach makes the relationship between the artwork and the piece easier to see. Its 24 × 12-inch work area, Laser System Manager software, and Windows or Mac compatibility distinguish it from the VLS Desktop DT models.
Where it fits
Personalization businesses
Use the camera to help position artwork on individual pieces.
Design and teaching studios
Bring visual alignment into the process of moving from a digital design to a physical object.
Shared workspaces
Choose a desktop system that accommodates Windows and Mac workflows.
Overview
About the VLS3.60ES

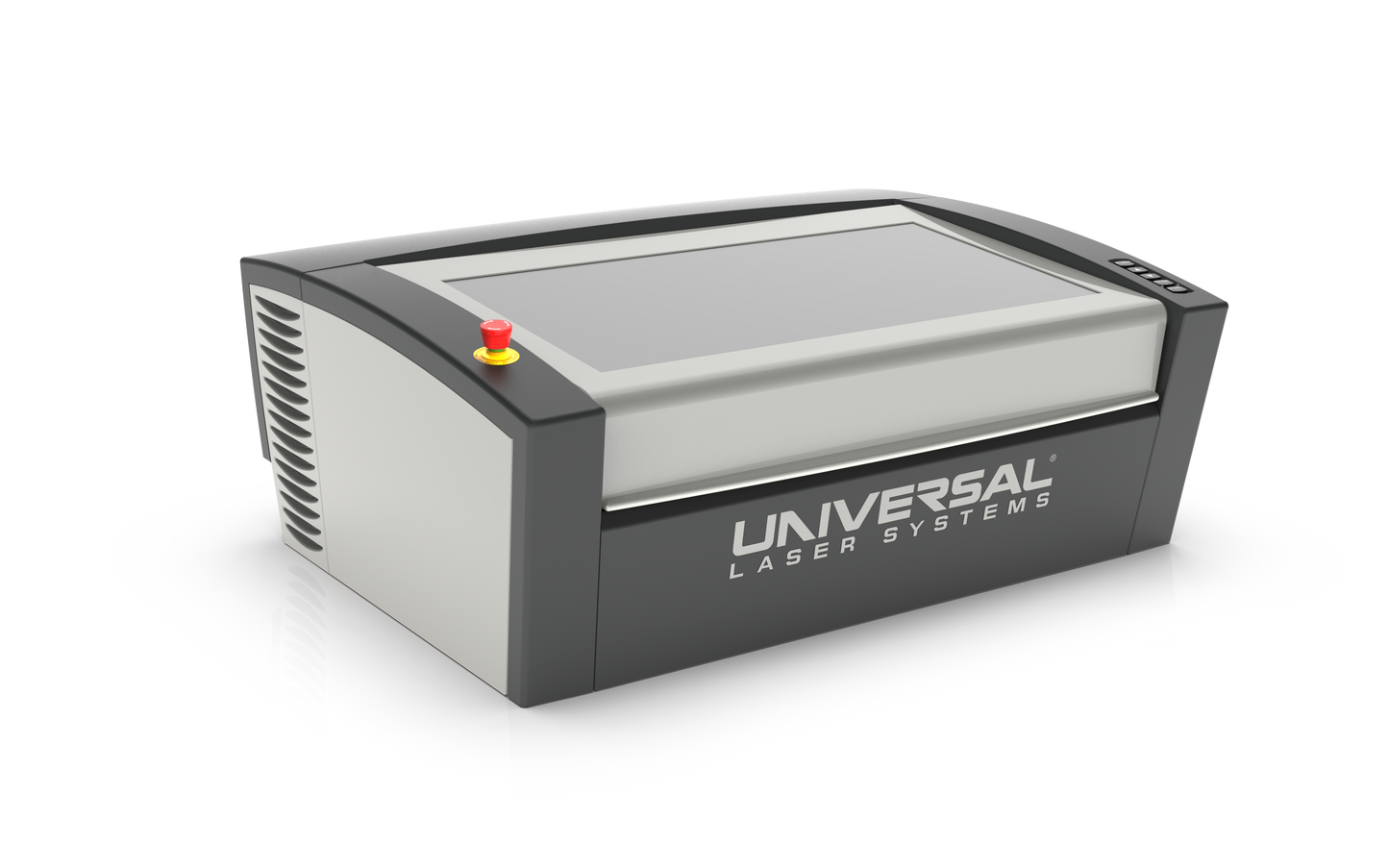

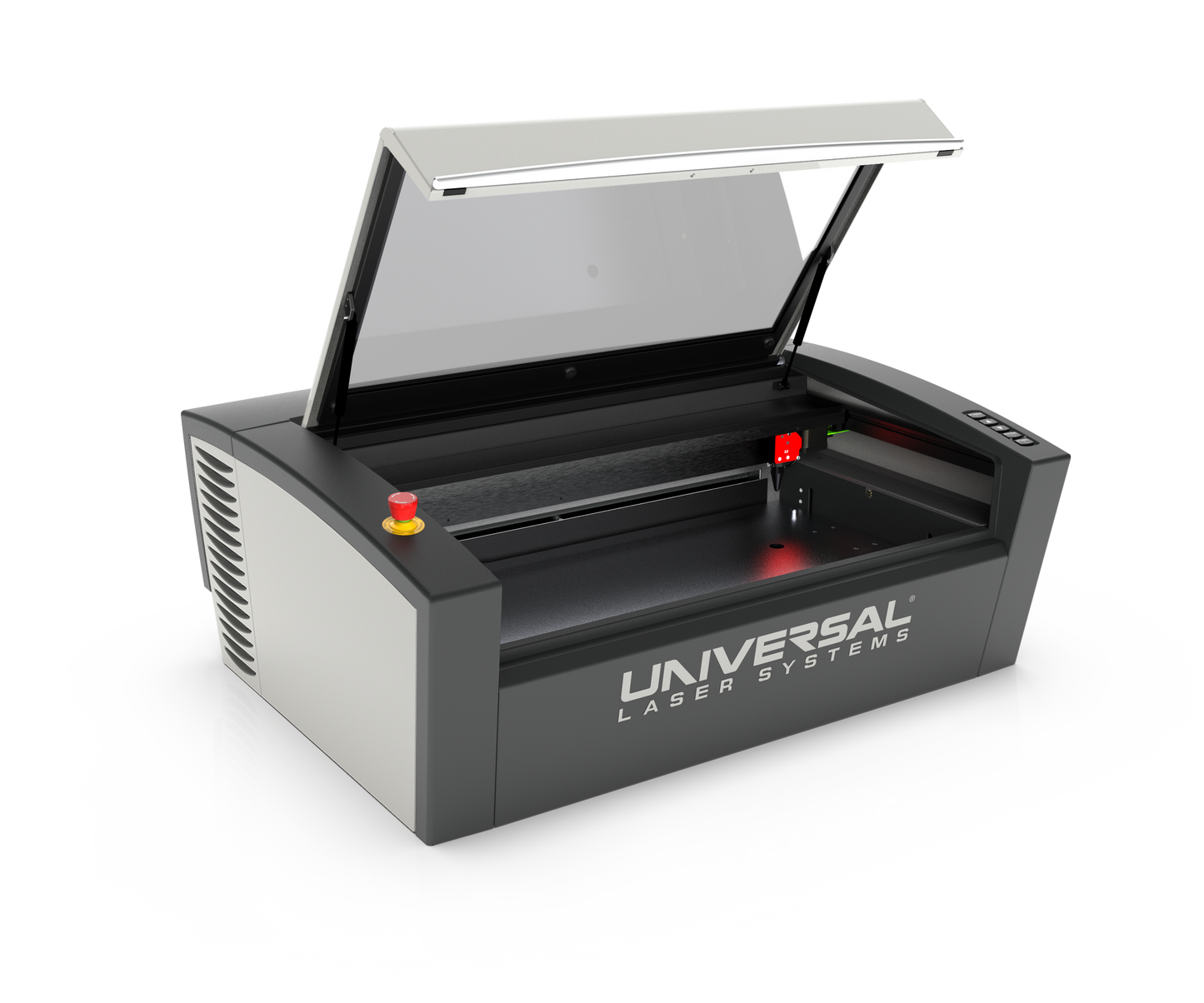

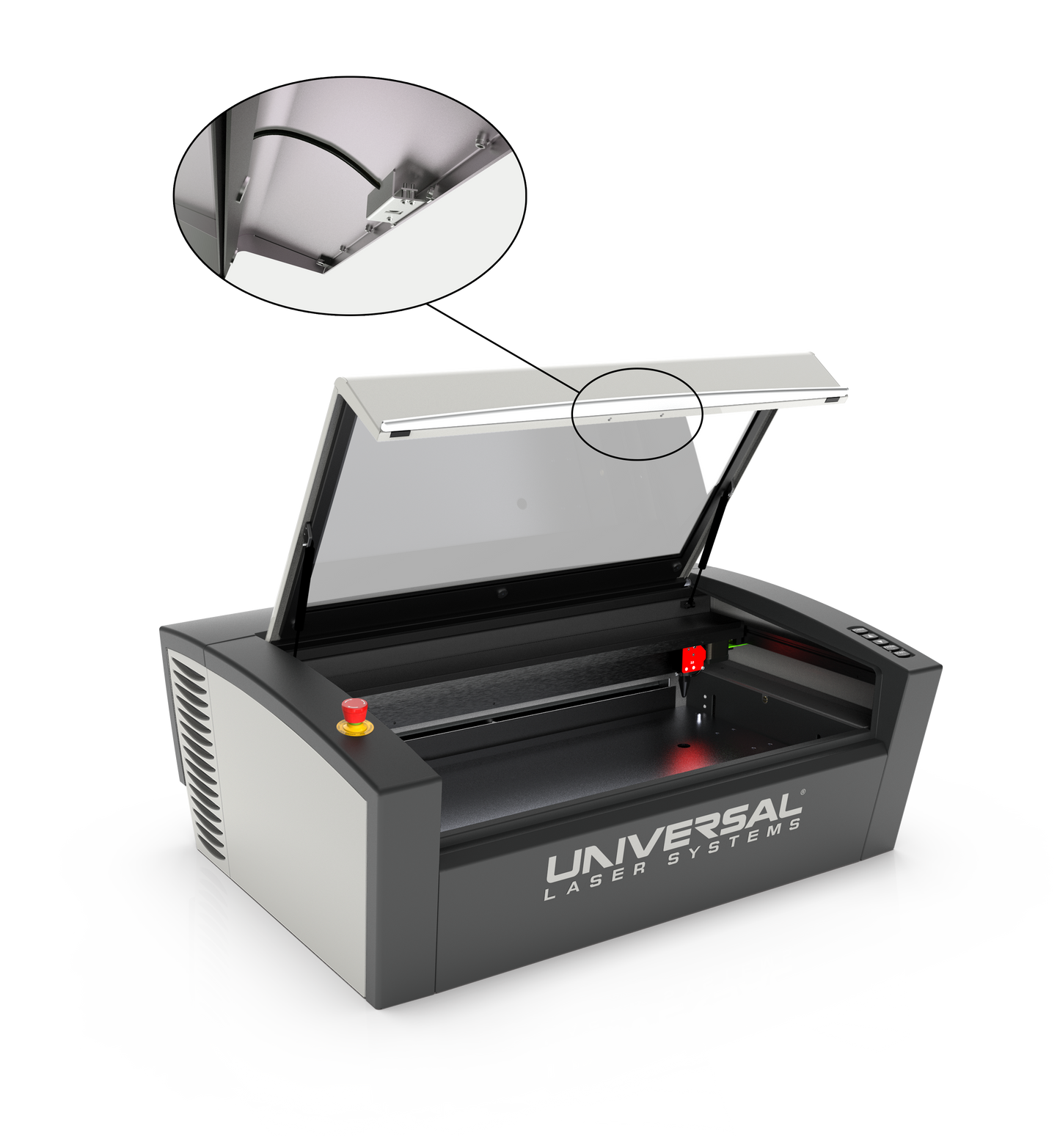

The VLS3.60ES is a desktop laser with a 24 × 12 in work area, up to 4 in of material height and a door-mounted camera for lining up your work on screen. It takes one CO₂ laser from 10 to 60 W at 10.6 µm, or 30 or 50 W at 9.3 µm. It runs from Laser System Manager (LSM) with the Intelligent Materials Database, on Windows 10 or 11 or macOS, connected by USB. It plugs into a standard 110V/10A outlet (or 220–240V/5A) and needs one 3″ exhaust port with 250 CFM at 6 in static pressure.
VLS3.60ES
Specifications
Work area
- Processing area (W × D)
- 24 × 12 in
- Max material height
- 4 in
Laser
- Max laser power
- 60 W
- Laser sources
- 1
- 10.6 µm CO₂ wattages
- 10, 30, 40, 50, 60 W
- 9.3 µm CO₂ wattages
- 30, 50 W
- 1.06 µm fiber laser
- CO₂ only
Features
- Key features
- Door-mounted camera for visual alignment · LSM software with Intelligent Materials Database · Windows or Mac
- Rotary fixture (optional accessory)
- 0.5–5 in diameter
Site requirements
- Style and size (W × D × H)
- Desktop · 34 × 25 × 14 in
- Weight
- 95 lb
- Electrical
- 110V/10A or 220–240V/5A
- Exhaust requirement
- One 3″ port · 250 CFM @ 6 in static pressure
- Software and computer
- Laser System Manager (LSM) · Windows 10/11 or macOS, USB
From the ULS VLS3.60ES spec sheet REV2025.03.
VLS Desktop
Other VLS Desktop models
Ownership
Equipment for the long term. Support beyond the sale.
A laser becomes part of how your business works—or how your students learn. Choosing one means thinking beyond the first project. Abernethy Beck can help you select a system for today’s work, then support ownership with replacement parts, optics, laser cartridge exchange options, and guidance as your needs change.
Have an application in mind?
Whether you’re considering VLS, PLS, or ULTRA, we can coordinate material testing with the Universal Laser Systems Applications Lab. Evaluate how your materials respond and review the results before selecting a system—especially valuable for demanding R&D and precision applications. Share your materials and the results you need in the form below.
Parts and supplies
Parts for the VLS3.60ES aren’t listed online yet. Send us a message with the part you need and we’ll quote it.
Exhaust for this laser
Exhaust requirement
One 3″ port · 250 CFM @ 6 in static pressure
The VLS3.60ES needs exhaust airflow while it runs. You can vent it outside through ducting with a blower that meets this requirement. If you can’t vent outside, use a fume extractor: it filters the air and returns it to the room.
Questions
Questions about the VLS3.60ES
What does my site need for the VLS3.60ES?
Electrical: 110V/10A or 220–240V/5A. Exhaust: One 3″ port, 250 CFM @ 6 in static pressure. Software and computer: Laser System Manager (LSM), Windows 10/11 or macOS, USB.
Do I need a fume extractor for the VLS3.60ES?
Not always. The VLS3.60ES needs exhaust airflow while it runs (see the exhaust requirement in the specifications). You can vent it outside through ducting with a blower that meets that requirement. If you can’t vent outside, a fume extractor filters the air and returns it to the room. We can suggest one for your space.
Can I order with a purchase order?
Yes. Schools, labs, government buyers and companies can order on a purchase order. See quotes and purchase orders for how it works.
Can I finance this?
Yes. We work with several equipment-financing partners. See our equipment financing options for details and to get started.
