Donaldson BOFA · Replacement filter

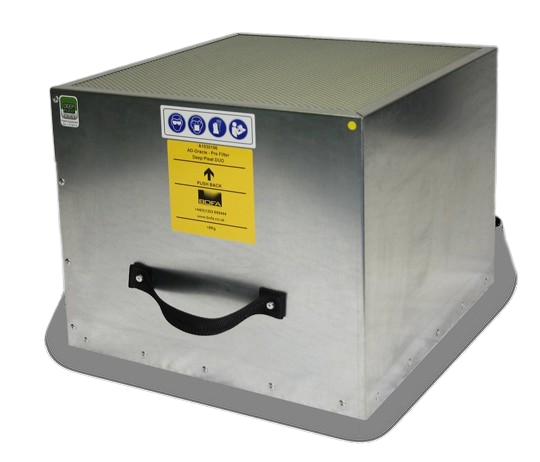

BOFA AD Oracle Pre Filter 1UA1030156
ePM1 70%per the Donaldson BOFA AD Oracle iQ datasheet
Price $312.00
Donaldson list $335.00 · each
Ordering for several machines or on a purchase order? Quotes and purchase orders
- Authorized Donaldson BOFA distributor
- Ships from US stock
- Free UPS Ground on orders of $500 or more
- Business accounts: purchase orders and tax-exempt accepted
- Questions? Send us a message
Does it fit my machine?
No BOFA model matches. Send us a message
We’ll keep your model for this visit.
Not sure which model you have? Send us a message
Fits these BOFA models (4)
- AD Base 1 OracleMachine page
- AD Base 2 OracleMachine page
- AD Oracle iQMachine page
- AD Oracle PRO OS and ConnectMachine page
Fits these older models (1)
- AD Zing 24 BaseOlder model
Model not listed? Send us a message
Filter version
Match the part number on the label of the filter you’re replacing. The versions aren’t interchangeable, so we don’t pick one for you.
I’m not sure which version I have.Send us a messageThe part number goes with it.
Complete the set
Complete the set
Pick your model under “Does it fit my machine?” to see the filters that go with this one. We only show filters that fit the model you pick.
Specifications
1UA1030156 specifications
Donaldson BOFA DeepPleat DUO replacement pre-filter for the AD Oracle iQ fume extraction system. Part number 1UA1030156 (previously A1030156).
| Type | Pre-filter, DeepPleat DUO |
|---|---|
| Efficiency | ePM1 70% |
| Media area | 129.1 ft² (12 m²) |
| Filter spec sheet (2018) | 90% at 0.4 µm |
| Filter media | Pleated glass fibre |
| Case | Zinc-plated steel, sealed with polyurethane |
| Connection | Rubber gasket at the rear of the filter |
| Size (H × W × D) | 310 × 370 × 380 mm approx. (12.2 × 14.6 × 15.0 in) |
| Pack size | Single filter |
| Part number | 1UA1030156 (label may show A1030156) |
Efficiency and media area: Donaldson BOFA AD Oracle iQ datasheet (US, v1.8). Other rows: Donaldson filter spec sheet EFS00002 (2018).
Replacing it
Donaldson BOFA, on YouTubePick your model to see Donaldson’s filter-change video for it. Send us a message
Filter help
Not sure which filter you have?
Send us the model and the part number from the filter’s label. We’ll confirm the match before you order.
Send us a messageBuying for a business?
Purchase orders and tax-exempt accounts for labs, schools and shops.
Quotes and purchase ordersPart no.
One set per machine
Each filter goes in the cart as its own line.
