Donaldson BOFA · Laser fume extractor
Mid-sized. Color touchscreen, data stream and Ethernet port.
From Price $3,866.50
Donaldson list $4,070.00
Need a hose kit or accessories? Send us a message
Taxes and shipping are calculated at checkout. Buying for a business? Purchase orders and tax-exempt accounts
Specifications

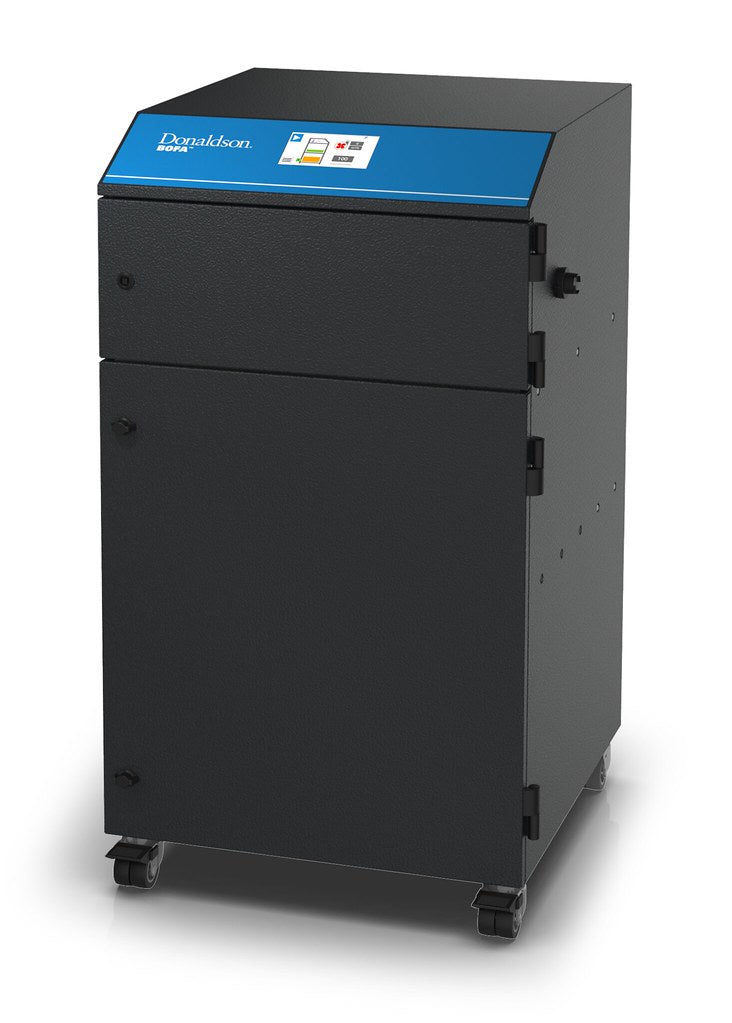

The Donaldson BOFA AD Oracle Pro OS is a mid-sized advanced fume extraction system for a wide range of laser applications. Featuring the Pro OS software platform with color touch screen, two-way data stream, real-time system monitoring, and pressure-based filter life management, it delivers 241 CFM unrestricted airflow at 96 mbar with 99.995% HEPA combined filtration. Available in powder-coated or stainless steel cabinet, with optional ethernet connectivity (Connect) and spark arrestor configurations.
| Application | A range of laser applications |
|---|---|
| Controls | Color touchscreen, alarm settings, pressure sensors, filter-life monitor |
| Connectivity | Two-way data stream over the RJ45 Ethernet port; USB port |
| What Connect adds | Two-way Ethernet (RJ45) data link to your laser or network: live system data and control, and data from several BOFA systems in one place |
| Versions | 115 V; 5 options: PRO OS or PRO OS Connect, powder-coated or stainless steel, and a powder-coated PRO OS with spark arrestor |

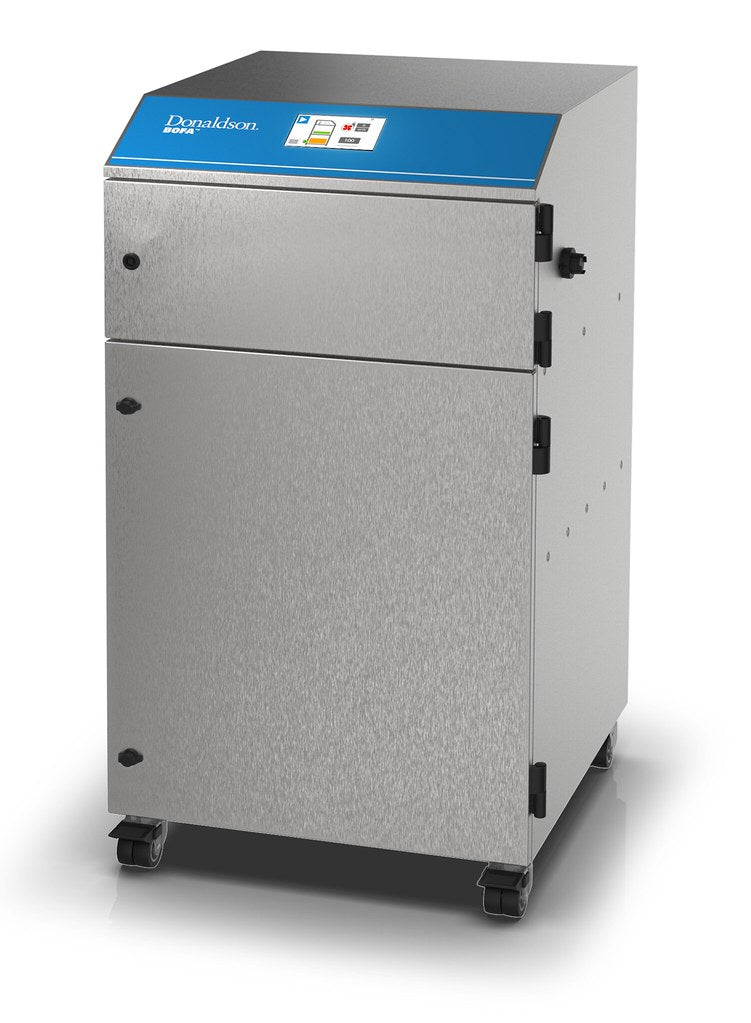

| Cabinet | Powder-coated or stainless steel |
| Airflow | 241 cfm unrestrictedTest conditions from the datasheet: clean filters, no hose kit, at 230 V, measured with a wind vane; may vary with voltage and test procedure. |
| Settable airflow range | 58–217 cfm |
| Pressure | 96 mbar |
| Inlet | 2.95 in · 75 mm |
| Pre-filter | DeepPleat DUO, ePM1 70% · 1UA1030156 |
| Combined filter | HEPA 99.995% at 0.3 µm, 15.5 L carbon · 1UA1030155 |
| Electrical, as sold | 115 V, 60 Hz; 12.5 A full load |
| Size (H × W × D) | 39.2 × 21.5 × 24.6 in |
| Weight | 157 lb |
| Noise, typical | < 80 dB(A) |
Spark arrestor on that option only
Replacement filters
Order only the ones you’re replacing.
Stage 1 of 2 · DeepPleat DUO pre-filter
Stage 2 of 2 · Combined HEPA + gas filter
Not sure which filter you need?
Send us a messageModel name
On the rating label on the side or rear of the unit. The label also shows the serial number. Position varies by model.
Filter part number
On the label of the filter you’re replacing, for example 1UA1030155. Older labels may show the same number without the 1U.
Price
per filter
Available to order
Price shows once you choose a version.
Choose a version first
We’ll check if we can supply it.
Priced per filter · Available to order
Product detailsHow to check
Look at the label on the in your unit and match the part number: .
Still not sure? Send us the model and serial number from the rating label and we’ll confirm the version before you order.
Price
per filter
Available to order
Price shows once you choose a version.
Choose a version first
We’ll check if we can supply it.
Order the exact number on your filter’s label. Different part numbers are different filters, even when they look alike.
Price
per filter
Help choosing
Tell us your laser model and what you cut or engrave. We’ll help you choose the version, hose kit and add-ons.
Send us a messagePurchase orders, tax-exempt accounts and formal quotes.
