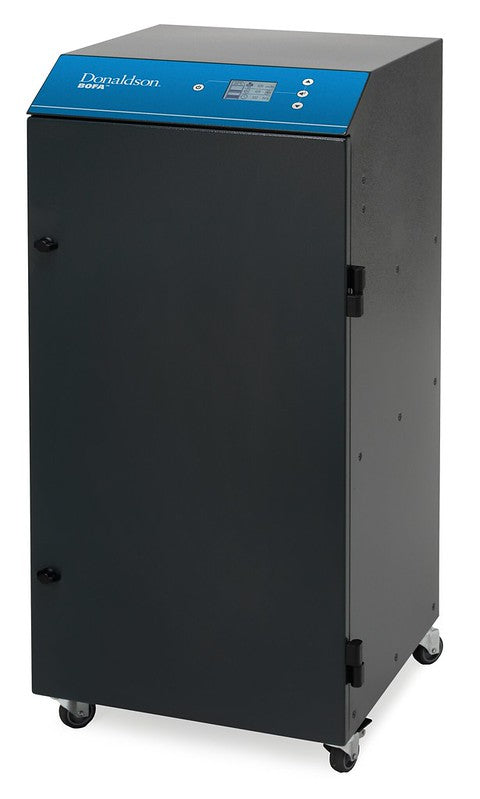

Donaldson BOFA · Laser fume extractor
Mid-sized, for a range of laser uses. iQ display with live airflow.
From Price $4,126.80
Donaldson list $4,344.00
Need a hose kit or accessories? Send us a message
Taxes and shipping are calculated at checkout. Buying for a business? Purchase orders and tax-exempt accounts
Build your system
Choose the version, then the hose kit and accessories. Only parts listed for the AD Oracle iQ appear here.
Specifications
The Donaldson BOFA AD Oracle iQ is a mid-sized fume extraction system designed for a wide range of laser applications including engraving, cutting, welding, and selective laser melting. Its Intelligent Operating System (iQ) provides real-time airflow monitoring, independent filter condition tracking, and remote diagnostics via USB. It is sold in three versions: standard, with remote signals and a standard hose kit, or with a compressor.
| Application | A range of laser applications |
|---|---|
| Controls | iQ display with real-time airflow reading and filter-condition monitoring |
| Connectivity | USB port for remote diagnostics |
| Versions | Standard; Remote signals + hose kit (24 V stop/start and System OK signals, standard hose kit included); With compressor |

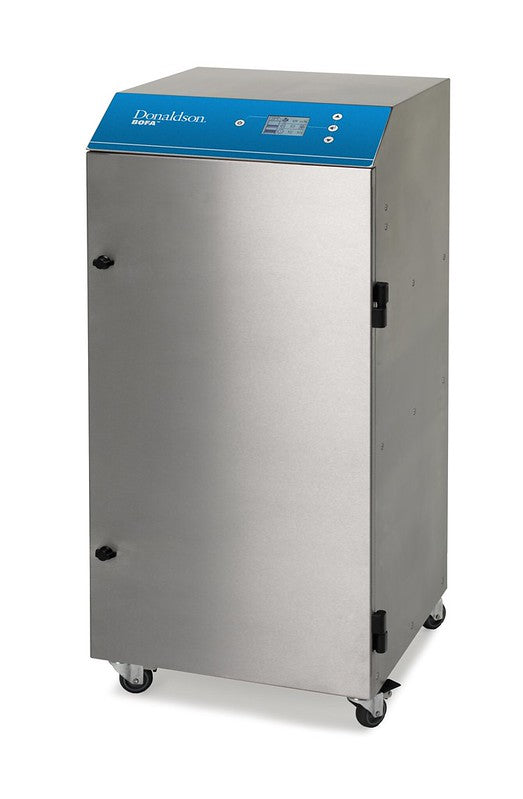

| Cabinet | Stainless steel |
| Airflow | 241 cfm unrestrictedTest conditions from the datasheet: clean filters, no hose kit, at 230 V, measured with a wind vane; may vary with voltage and test procedure. |
| Settable airflow range | 59–224 cfm |
| Pressure | 95 mbar |
| Inlet | 2.9 in · 75 mm |
| Pre-filter | DeepPleat DUO, ePM1 70% · 1UA1030156 |
| Combined filter | HEPA 99.995% at 0.3 µm, 15.5 L carbon · 1UA1030155 |
| Electrical, as sold | 115 V, 60 Hz; 12.5 A full load |
| Size (H × W × D) | 38.4 × 17.5 × 19.9 in |
| Weight | 143 lb |
| Noise, typical | < 70 dB(A) |
Remote signals + hose kit: a standard hose kit.
With compressor: a compressor.
The standard version comes without accessories. Add a hose kit in step 2.

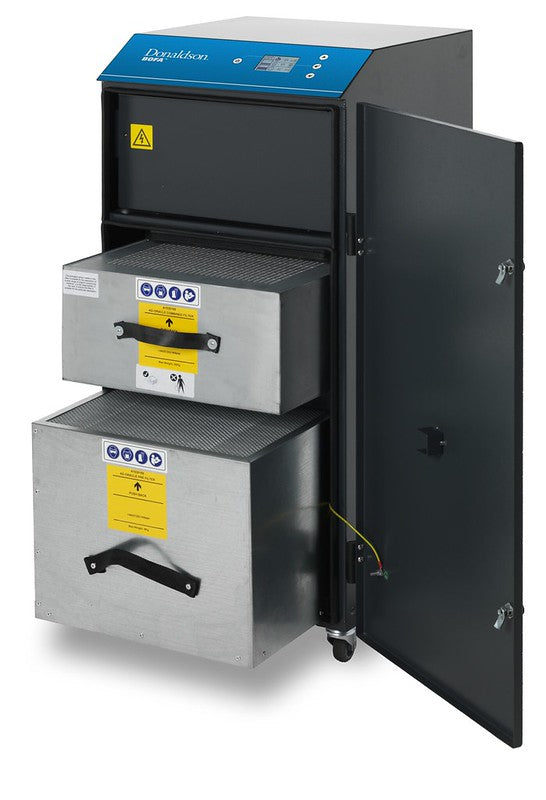

Replacement filters
Order only the ones you’re replacing.
Stage 1 of 2 · DeepPleat DUO pre-filter
Stage 2 of 2 · Combined filter
2 versions · choose one. Match the part number on the label of the combined filter you’re replacing.
Not sure which filter you need?
Send us a messageModel name
On the rating label on the side or rear of the unit. The label also shows the serial number. Position varies by model.
Filter part number
On the label of the filter you’re replacing, for example 1UA1030155. Older labels may show the same number without the 1U.
Price
per filter
Available to order
Price shows once you choose a version.
Choose a version first
We’ll check if we can supply it.
Priced per filter · Available to order
Product detailsHow to check
Look at the label on the in your unit and match the part number: .
Still not sure? Send us the model and serial number from the rating label and we’ll confirm the version before you order.
Price
per filter
Available to order
Price shows once you choose a version.
Choose a version first
We’ll check if we can supply it.
Order the exact number on your filter’s label. Different part numbers are different filters, even when they look alike.
Price
per filter
Help choosing
Tell us your laser model and what you cut or engrave. We’ll help you choose the version, hose kit and add-ons.
Send us a messagePurchase orders, tax-exempt accounts and formal quotes.
