Donaldson BOFA · Laser fume extractor
Medium to heavy-duty. Color touchscreen with filter-life monitor.
From Price $6,859.00
Donaldson list $7,220.00
Need a hose kit or accessories? Send us a message
Taxes and shipping are calculated at checkout. Buying for a business? Purchase orders and tax-exempt accounts
Specifications

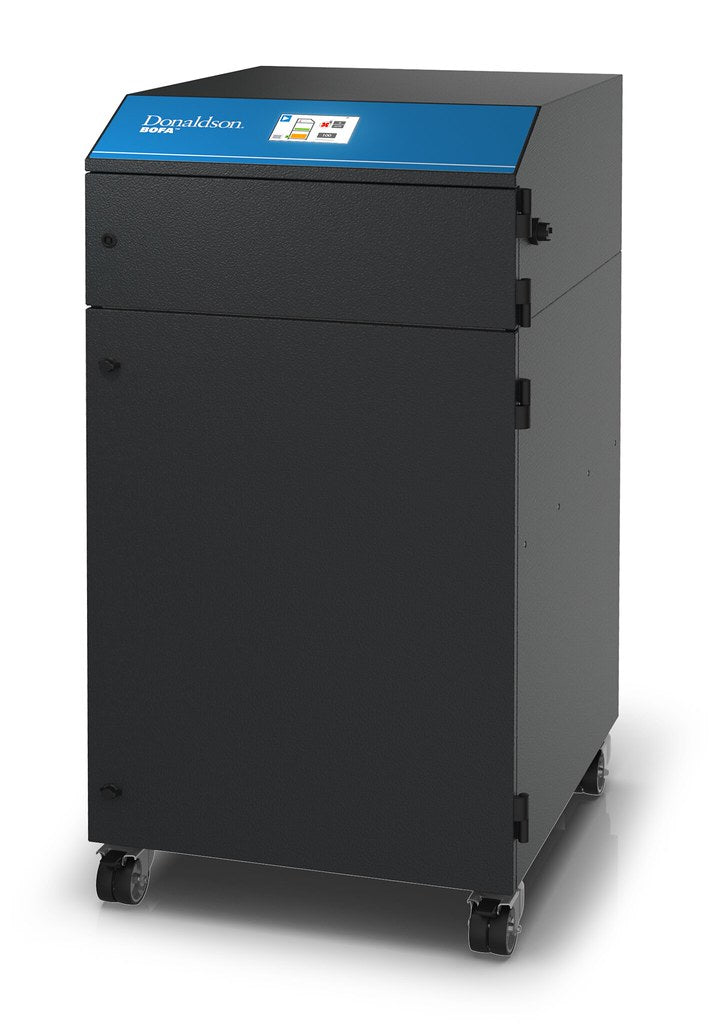

The Donaldson BOFA AD 1000 Pro OS is a professional-grade fume extraction system for medium to heavy-duty laser applications. Featuring the Pro OS software platform with color touch screen, real-time system monitoring, and pressure-based filter life management, it delivers 515 CFM unrestricted airflow with 99.995% HEPA combined filtration. Available in powder-coated or stainless steel cabinet.
| Application | Medium to heavy-duty laser applications |
|---|---|
| Controls | Color touchscreen, alarm settings, pressure sensors, filter-life monitor |
| Connectivity | Two-way data stream over the RJ45 Ethernet port; USB port |
| Versions | 115 V, USA plug; 24 V remote stop/start, System OK signal, VOC sensor |

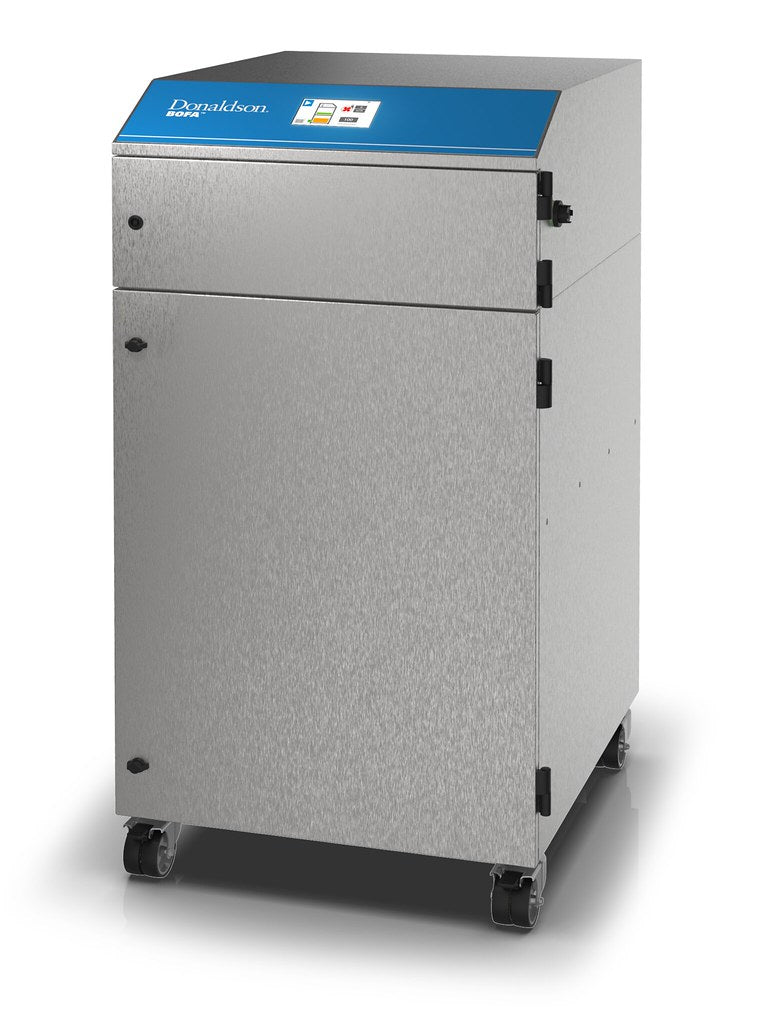

| Cabinet | Powder-coated or stainless steel |
| Airflow | 515 cfm unrestrictedTest conditions from the datasheet: clean filters, no hose kit, at 230 V, measured with a wind vane; may vary with voltage and test procedure. |
| Settable airflow range | 177–430 cfm at 115 V |
| Pressure | 65 mbar at 115 V |
| Inlet | 4.92 in · 125 mm |
| Pre-filter | DeepPleat DUO, ePM1 70% · 1UA1030222 |
| Combined filter | HEPA 99.995% at 0.3 µm, 53.7 L carbon · 1UA1030297 |
| Electrical, as sold | 115 V, 60 Hz; 19.5 A full load |
| Size (H × W × D) | 47.4 × 24.6 × 31.7 in |
| Weight | 309 lb |
| Noise, typical | < 70 dB(A) |
Replacement filters
Order only the ones you’re replacing.
Stage 1 of 2 · DeepPleat DUO pre-filter
Stage 2 of 2 · Combined HEPA + gas filter
Not sure which filter you need?
Send us a messageModel name
On the rating label on the side or rear of the unit. The label also shows the serial number. Position varies by model.
Filter part number
On the label of the filter you’re replacing, for example 1UA1030155. Older labels may show the same number without the 1U.
Price
per filter
Available to order
Price shows once you choose a version.
Choose a version first
We’ll check if we can supply it.
Priced per filter · Available to order
Product detailsHow to check
Look at the label on the in your unit and match the part number: .
Still not sure? Send us the model and serial number from the rating label and we’ll confirm the version before you order.
Price
per filter
Available to order
Price shows once you choose a version.
Choose a version first
We’ll check if we can supply it.
Order the exact number on your filter’s label. Different part numbers are different filters, even when they look alike.
Price
per filter
Help choosing
Tell us your laser model and what you cut or engrave. We’ll help you choose the version, hose kit and add-ons.
Send us a messagePurchase orders, tax-exempt accounts and formal quotes.
Quotes and purchase orders
Built for lasering PVC: HCl and VOC sensors, acid-resistant coatings.
206 cfm · 2.9 in inlet · 115 V
$7,144.00 Donaldson list $7,520.00
View details
Mid-sized, for lighter-use laser applications. iQ display.
223 cfm · 2.9 in inlet · 115 V
From $3,343.05 Donaldson list $3,519.00
View details
Mid-sized. Color touchscreen, data stream and Ethernet port.
241 cfm unrestricted · 2.95 in · 115 V
From $3,866.50 Donaldson list $4,070.00
View details

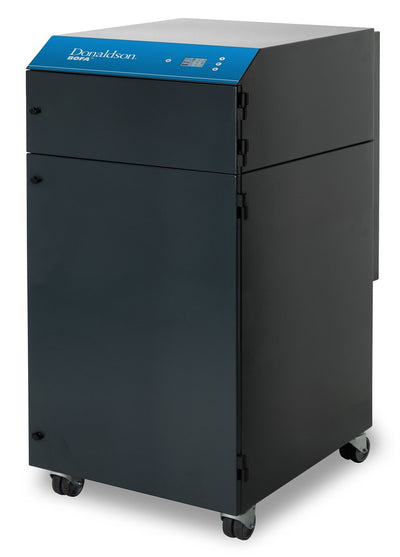

Medium-duty laser applications. iQ display and filter monitoring.
