Donaldson BOFA · Laser fume extractor
Mid-sized, for lighter-use laser applications. iQ display.
From Price $3,343.05
Donaldson list $3,519.00
Need a hose kit or accessories? Send us a message
Taxes and shipping are calculated at checkout. Buying for a business? Purchase orders and tax-exempt accounts
Specifications

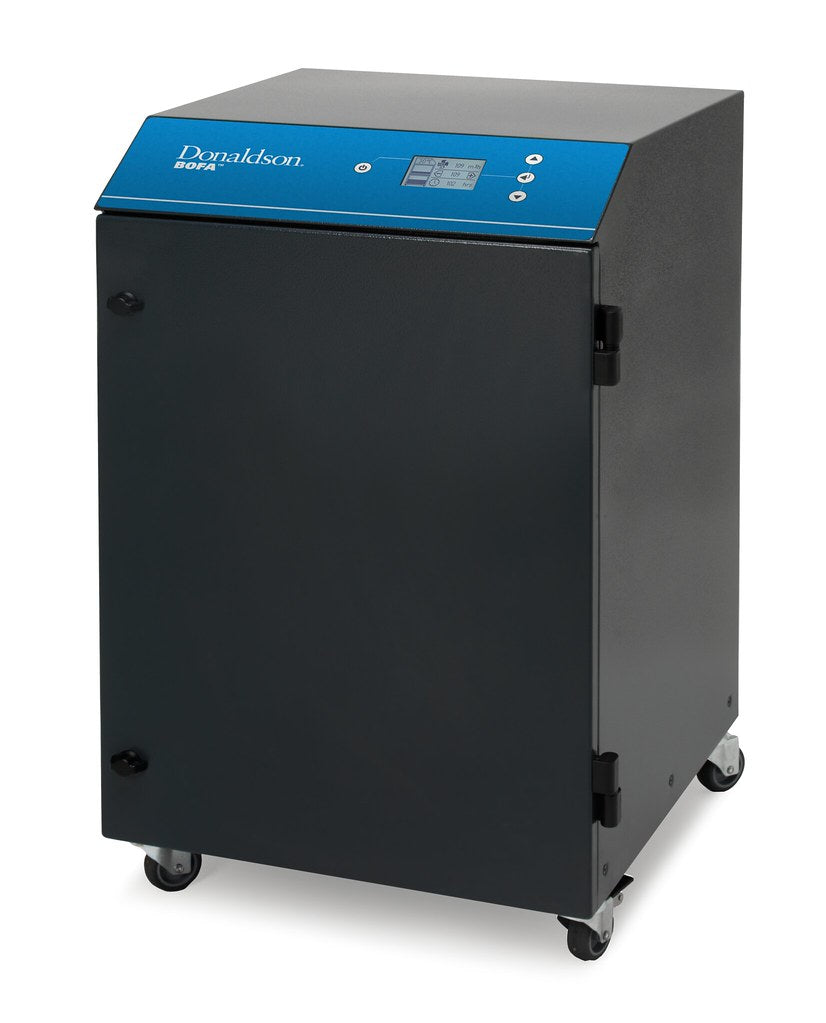

The Donaldson BOFA AD Oracle SA iQ is a mid-sized fume extraction system designed for lighter-use laser applications including engraving, cutting, and marking. Its Intelligent Operating System (iQ) provides real-time airflow monitoring, independent filter condition tracking, and remote diagnostics via USB — delivering reliable performance with a compact footprint and low noise levels. It is sold in four versions: standard, with a VOC sensor, with remote signals (24 V stop/start, System OK and override), or with both.
| Application | Lighter-use laser applications |
|---|---|
| Controls | iQ display with real-time airflow reading and filter-condition monitoring |
| Connectivity | USB port for remote diagnostics |
| Versions | 115 V; 4 options: standard, VOC sensor, remote signals (24 V stop/start, System OK, override), or both |

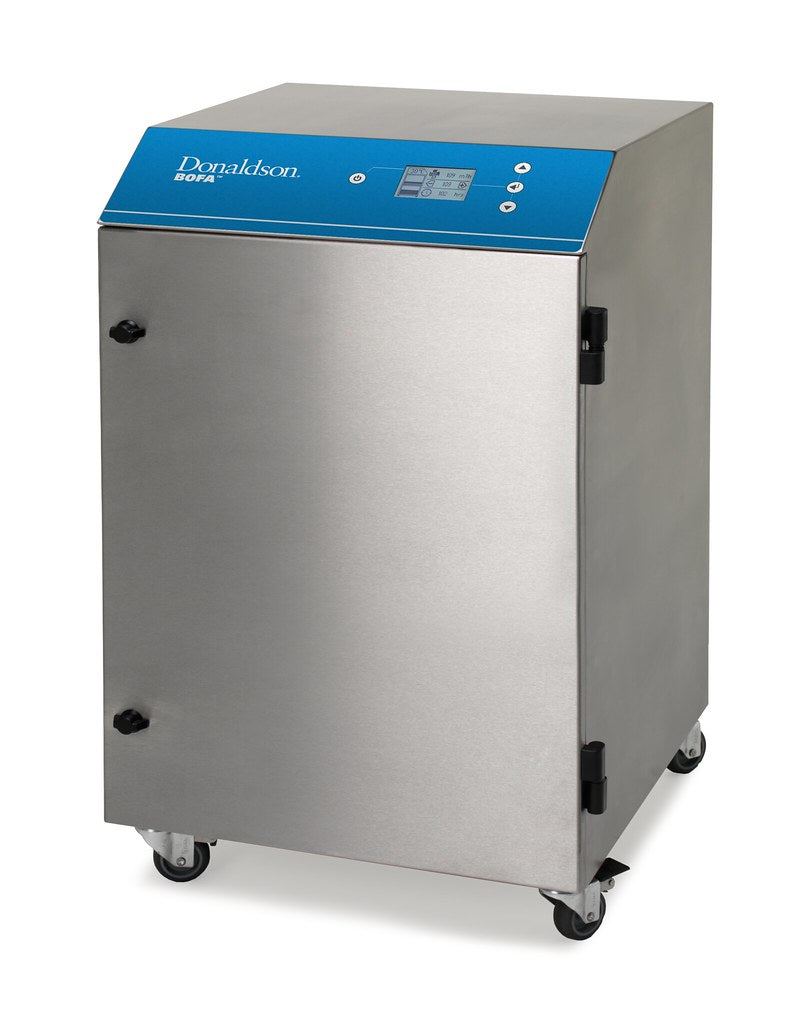

| Cabinet | Stainless steel |
| Airflow | 223 cfmTest conditions not stated on the datasheet. |
| Settable airflow range | Not published |
| Pressure | 96 mbar |
| Inlet | 2.9 in · 75 mm |
| Pre-filter | Pre-filter, 95% at 0.3 µm · 1UA1030344 |
| Combined filter | HEPA 99.995% at 0.3 µm, 15.5 L carbon · 1UA1030155 |
| Electrical, as sold | 115 V, 60 Hz; 12.5 A full load |
| Size (H × W × D) | 29.1 × 17.7 × 20.3 in |
| Weight | 128 lb |
| Noise, typical | < 60 dB(A) |
Replacement filters
Order only the ones you’re replacing.
Stage 1 of 2 · DeepPleat DUO pre-filter
Stage 2 of 2 · Combined filter
2 versions · choose one. Match the part number on the label of the combined filter you’re replacing.
Not sure which filter you need?
Send us a messageModel name
On the rating label on the side or rear of the unit. The label also shows the serial number. Position varies by model.
Filter part number
On the label of the filter you’re replacing, for example 1UA1030155. Older labels may show the same number without the 1U.
Price
per filter
Available to order
Price shows once you choose a version.
Choose a version first
We’ll check if we can supply it.
Priced per filter · Available to order
Product detailsHow to check
Look at the label on the in your unit and match the part number: .
Still not sure? Send us the model and serial number from the rating label and we’ll confirm the version before you order.
Price
per filter
Available to order
Price shows once you choose a version.
Choose a version first
We’ll check if we can supply it.
Order the exact number on your filter’s label. Different part numbers are different filters, even when they look alike.
Price
per filter
Help choosing
Tell us your laser model and what you cut or engrave. We’ll help you choose the version, hose kit and add-ons.
Send us a messagePurchase orders, tax-exempt accounts and formal quotes.
Quotes and purchase orders
Mid-sized. Color touchscreen, data stream and Ethernet port.
241 cfm unrestricted · 2.95 in · 115 V
From $3,866.50 Donaldson list $4,070.00
View details
Medium-duty laser applications. iQ display and filter monitoring.
324 cfm · 4.92 in inlet · 115 V
$6,610.10 Donaldson list $6,958.00
View details
Heavy-duty laser applications. iQ display and filter monitoring.
735 cfm · 4.92 in inlet · 230 V
From $11,270.80 Donaldson list $11,864.00
View details
Medium to heavy-duty laser applications. iQ display.
515 cfm unrestricted · 4.92 in · 115 V
$7,884.05 Donaldson list $8,299.00
View details
