Price $201.40Donaldson list $212.00

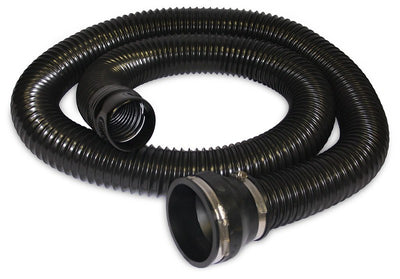

View details for Single Hose KitDonaldson BOFA · Laser fume extractor

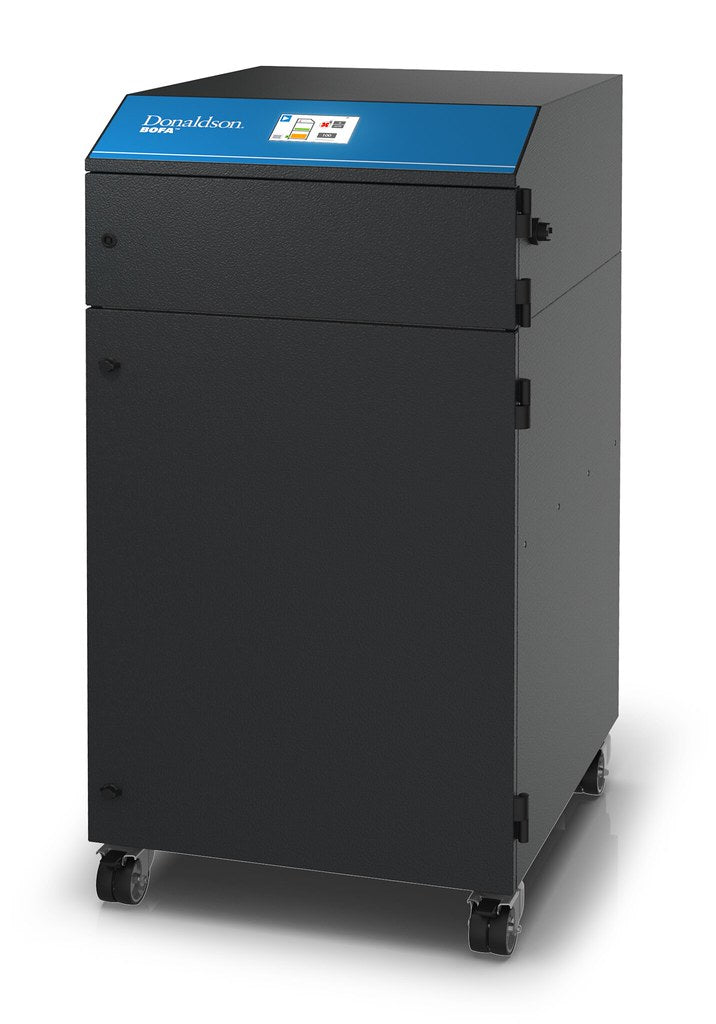

AD 1000 PRO OS and Connect
The AD 1000 PRO OS with a two-way Ethernet data link.
From Price $7,107.90
Donaldson list $7,482.00
SKU2 versions · powder-coated or stainless steel cabinet
- Pressure
- 65 mbar
- at 115 V
- Inlet
- 4.92 in
- 125 mm
- Power
- 115 V
- both versions
- Authorized Donaldson BOFA distributor
- Ships to the contiguous US · shipping calculated at checkout
- Business accounts: purchase orders and tax-exempt accepted
- Current lead time, or shipping to Hawaii, Alaska or outside the US? Send us a message
Need a hose kit or accessories? See hose kits and add-ons or send us a message
Taxes and shipping are calculated at checkout. Buying for a business? Purchase orders and tax-exempt accounts
Hose kits and add-ons
Accessories for the AD 1000 PRO OS and Connect
Listed for the AD 1000 PRO OS and Connect. Open one to check how it connects before you order.
Price $403.75Donaldson list $425.00

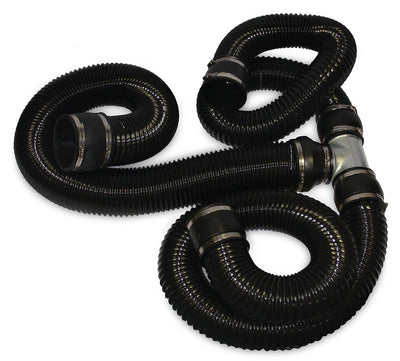

View details for Dual Hose Kit, DHK-5-(3,4,5,6)Price $604.20Donaldson list $636.00
View details for AD 1000/1500 iQ Triple Hose Kit — Epilog Fusion ProPrice $90.25Donaldson list $95.00
View details for AD 500/1000/1500 iQ Exhaust Spigot — 125mm RAL 7016
Price $2,116.60Donaldson list $2,228.00

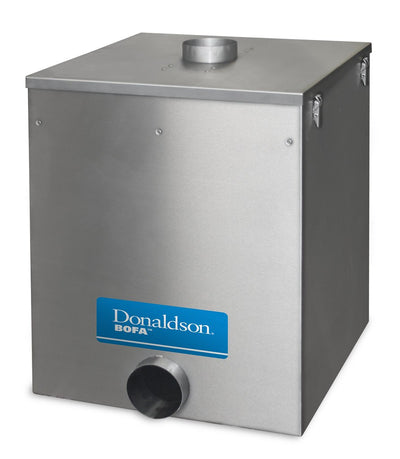

View details for ILF 600 — Inline Pre-Filter System
Price $2,877.55Donaldson list $3,029.00

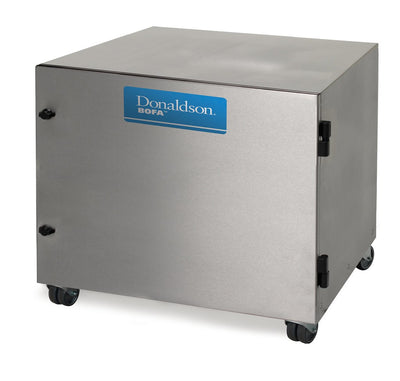

View details for ILF 1000 — High-Capacity Inline Pre-Filter System
Price $3,582.45Donaldson list $3,771.00

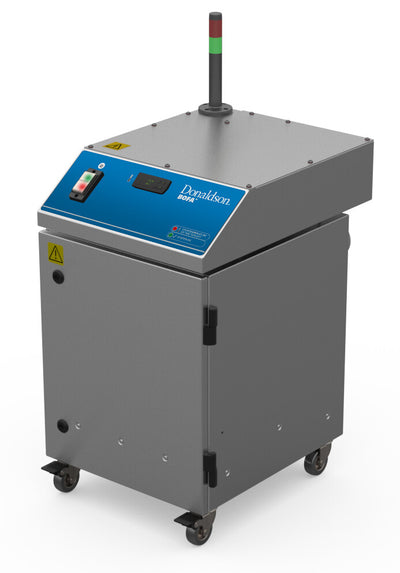

View details for Spark Arrestor V2Price $580.45Donaldson list $611.00
View details for VOC PCB — Complete with SensorSpecifications
AD 1000 PRO OS and Connect specifications

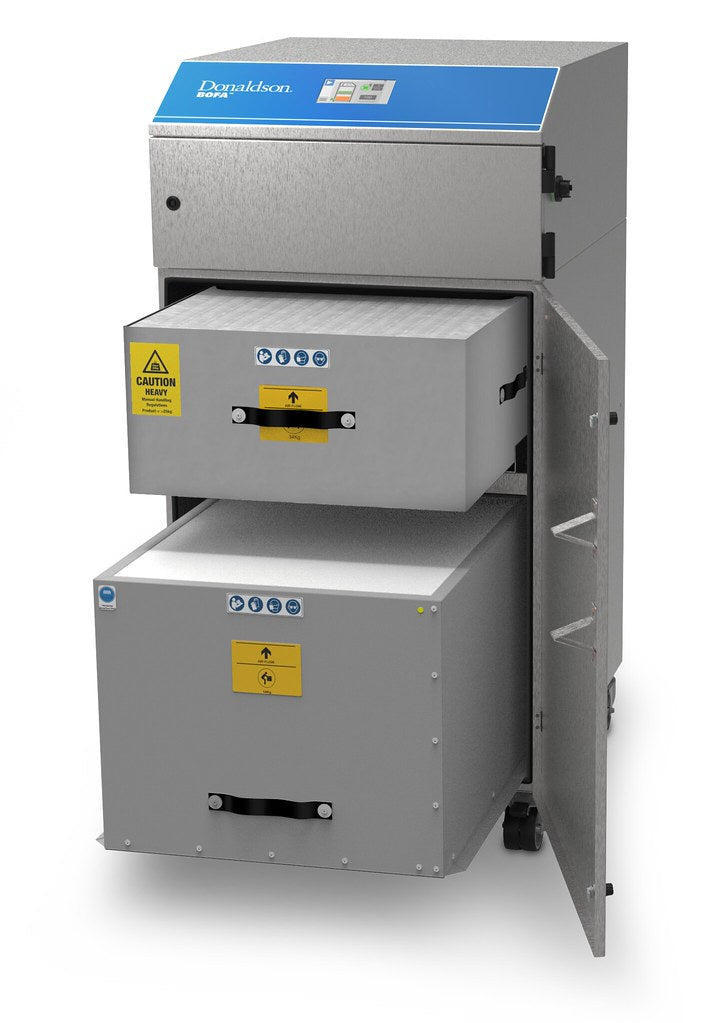

The Donaldson BOFA AD 1000 Pro OS Connect is a high-performance fume extraction system for medium to heavy-duty laser applications. Featuring the Pro OS Connect software platform with two-way data stream, color touch screen, ethernet connectivity, and advanced filter life management, it delivers 515 CFM unrestricted airflow with 99.995% HEPA combined filtration in a brushed stainless steel cabinet.
| Application | Medium to heavy-duty laser applications |
|---|---|
| Controls | Color touchscreen, alarm settings, pressure sensors, filter-life monitor |
| Connectivity | Two-way data stream over the RJ45 Ethernet port; USB port |
| What Connect adds | Two-way Ethernet (RJ45) data link to your laser or network: live system data and control, and data from several BOFA systems in one place |
| Versions | 115 V, USA plug; 24 V remote stop/start, System OK signal, VOC sensor |

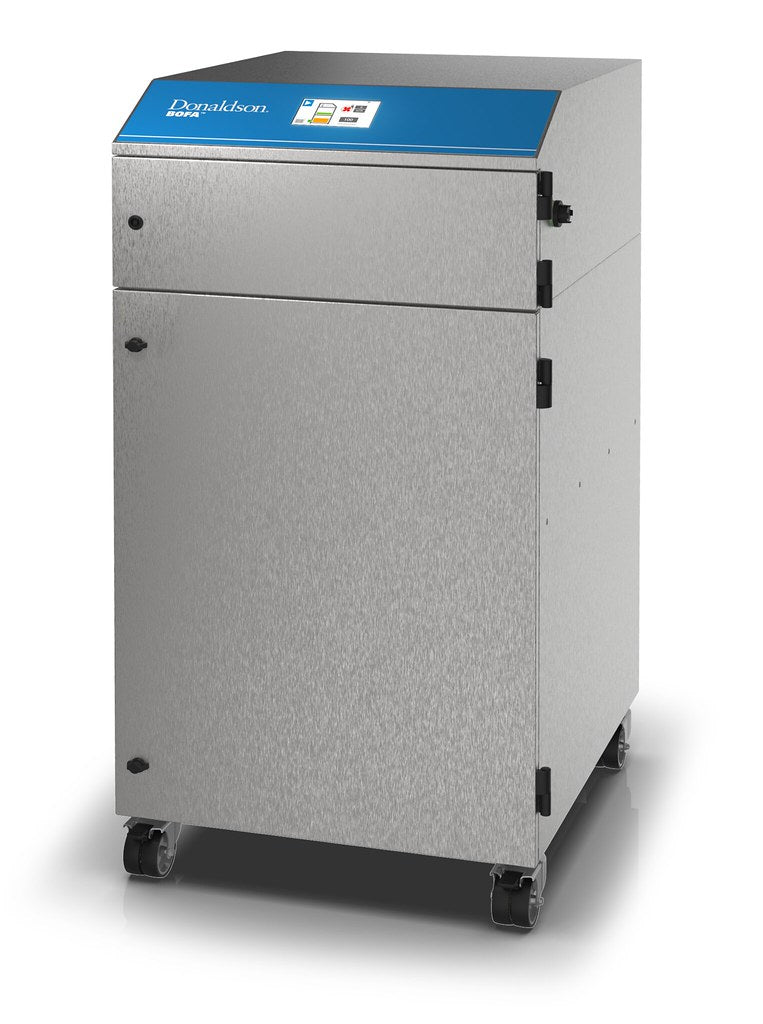

| Cabinet | Powder-coated or stainless steel |
| Airflow | 515 cfm unrestrictedTest conditions from the datasheet: clean filters, no hose kit, at 230 V, measured with a wind vane; may vary with voltage and test procedure. |
| Settable airflow range | 177–430 cfm at 115 V |
| Pressure | 65 mbar at 115 V |
| Inlet | 4.92 in · 125 mm |
| Pre-filter | DeepPleat DUO, ePM1 70% · 1UA1030222 |
| Combined filter | HEPA 99.995% at 0.3 µm, 53.7 L carbon · 1UA1030297 |
| Electrical, as sold | 115 V, 60 Hz; 19.5 A full load |
| Size (H × W × D) | 47.4 × 24.6 × 31.7 in |
| Weight | 309 lb |
| Noise, typical | < 70 dB(A) |
Documents
Replacement filters
Filters for the AD 1000 PRO OS and Connect
Order only the ones you’re replacing.
-
Stage 1 of 2 · DeepPleat DUO pre-filter
- DeepPleat DUO pre-filter Part no. 1UA1030222 Product details
-
Stage 2 of 2 · Combined HEPA + gas filter
- Combined HEPA + gas filter Part no. 1UA1030297 Product details
Not sure which filter you need?
Send us a messageWhere to find the model and part number
Model name
On the rating label on the side or rear of the unit. The label also shows the serial number. Position varies by model.
Filter part number
On the label of the filter you’re replacing, for example 1UA1030155. Older labels may show the same number without the 1U.
Price
per filter
Available to order
Price shows once you choose a version.
Choose a version first
Not sold online
Send us a message
We’ll check if we can supply it.
Details
Priced per filter · Available to order
Product detailsHow to check
Look at the label on the in your unit and match the part number: .
Still not sure? Send us the model and serial number from the rating label and we’ll confirm the version before you order.
Price
per filter
Available to order
Price shows once you choose a version.
Choose a version first
Not sold online
Send us a message
We’ll check if we can supply it.
Order the exact number on your filter’s label. Different part numbers are different filters, even when they look alike.
Price
per filter
Help choosing
Not sure which setup?
Tell us your laser model and what you cut or engrave. We’ll help you choose the version, hose kit and add-ons.
Send us a messageBuying for a business?
Purchase orders, tax-exempt accounts and formal quotes.
