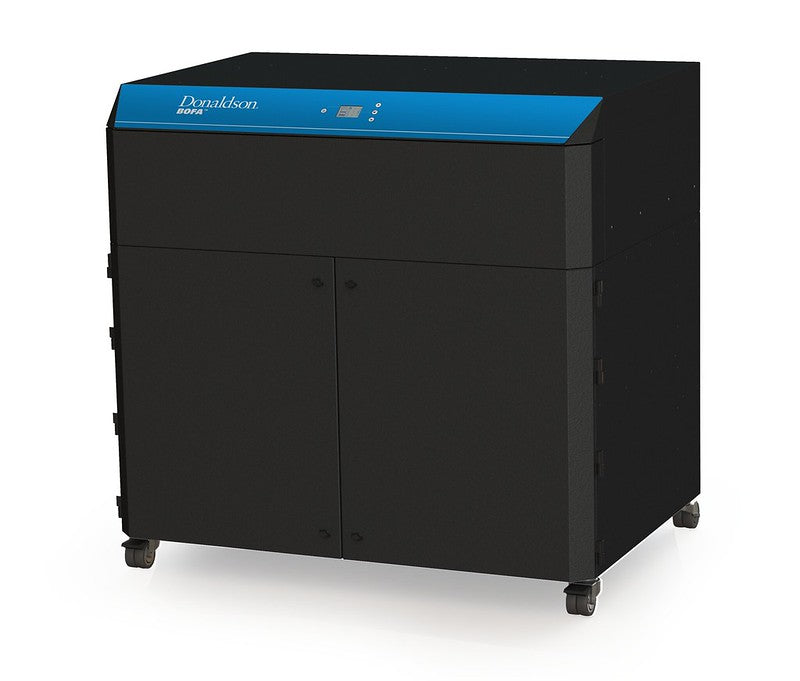

Donaldson BOFA · Laser fume extractor
For the most demanding laser applications.
From Price $17,660.50
Donaldson list $18,590.00
Power: 208 V, 3-phase, 60 Hz. Check that your site has this supply.
Need a hose kit or accessories? Send us a message
Buying for a business? Purchase orders and tax-exempt accounts
Build your system
Choose the hose kit and spare filters. Your whole build goes on one quote request.
No capture accessories are listed for the AD 2000 iQ, so the capture step is left out.
Specifications
The Donaldson BOFA AD 2000 iQ is a high-capacity three-phase fume extraction system built for the most demanding laser applications. Featuring 1,470 CFM airflow, dual DeepPleat DUO pre-filters, combined HEPA/gas filtration at 99.995% efficiency, and the intelligent iQ operating system with real-time monitoring and USB diagnostics, it delivers exceptional performance.
| Application | The most demanding laser applications |
|---|---|
| Controls | High contrast display with real-time airflow reading |
| Connectivity | USB port for remote diagnostics |
| Configuration | 208 V, 3-phase, 60 Hz; 24 V stop/start, System OK and override signals; exhaust spigot |
| Cabinet | Not published |
| Airflow | 1,470 cfmTest conditions not stated on the datasheet. |
| Settable airflow range | Not published |
| Pressure | 96 mbar |
| Inlet | 4.9 in · 125 mm |
| Pre-filter | 2 × DeepPleat DUO, F8, twin pack · 1UA1030336 |
| Combined filter | 2 × HEPA 99.995% at 0.3 µm with carbon, twin pack · 1UA1030335 |
| Electrical, as sold | 208 V, 3-phase, 60 Hz; 18 A per line, 31.5 A neutral |
| Size (H × W × D) | 50.4 × 53.5 × 39.6 in |
| Weight | 750 lb |
| Noise, typical | < 75 dB(A) |
Exhaust spigot
Replacement filters
Order only the ones you’re replacing.
Stage 1 of 2 · DeepPleat DUO pre-filter (twin pack)
2 versions · choose one. Match the part number on the label of the DeepPleat DUO pre-filter (twin pack) you’re replacing.
Stage 2 of 2 · Combined HEPA + gas filter (twin pack)
Not sure which filter you need?
Send us a messageModel name
On the rating label on the side or rear of the unit. The label also shows the serial number. Position varies by model.
Filter part number
On the label of the filter you’re replacing, for example 1UA1030155. Older labels may show the same number without the 1U.
Price
per filter
Available to order
Price shows once you choose a version.
Choose a version first
We’ll check if we can supply it.
Priced per filter · Available to order
Product detailsHow to check
Look at the label on the in your unit and match the part number: .
Still not sure? Send us the model and serial number from the rating label and we’ll confirm the version before you order.
Price
per filter
Available to order
Price shows once you choose a version.
Choose a version first
We’ll check if we can supply it.
Order the exact number on your filter’s label. Different part numbers are different filters, even when they look alike.
Price
per filter
Help choosing
Tell us your laser model and what you cut or engrave. We’ll help you choose the version, hose kit and add-ons.
Send us a messagePurchase orders, tax-exempt accounts and formal quotes.
Quotes and purchase orders

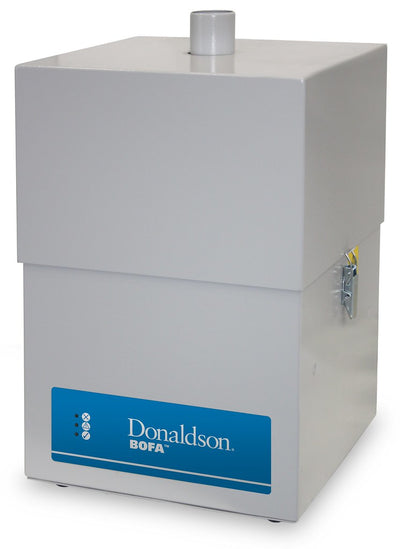

Cost-effective system for light to medium-duty applications.
$4,476.40 Donaldson list $4,712.00
View details

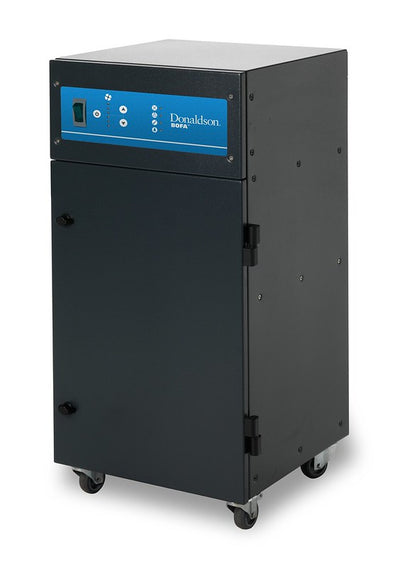

Compact, for light-duty laser use. Standard option has a hose kit.
106 cfm · 2.0 in inlet · 115 V
From $1,630.20 Donaldson list $1,716.00
View details
Mid-sized, for a range of laser uses. iQ display with live airflow.
241 cfm unrestricted · 2.9 in · 115 V
From $4,126.80 Donaldson list $4,344.00
View details

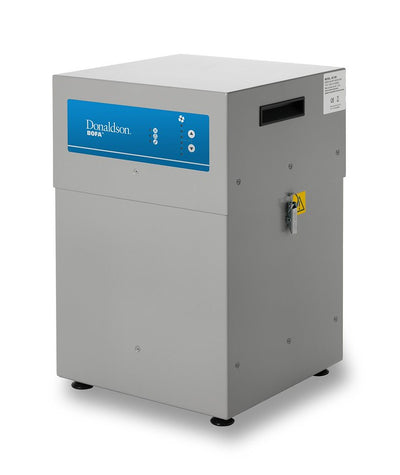

Light-duty laser use. Options add a VOC sensor and remote signals.
