Donaldson BOFA · Inline pre-filter unit
ILF 600 — Inline Pre-Filter System 1UA1030073
Price $2,116.60
Donaldson list $2,228.00 · each
Ordering for several machines or on a purchase order? Quotes and purchase orders
- Authorized Donaldson BOFA distributor
- Ships from US stock
- Free UPS Ground on orders of $500 or more
- Business accounts: purchase orders and tax-exempt accepted
- Questions? Send us a message
What is it used with?
Connection: 125 mm (4.9 in) inlet and outlet. Send us your extractor model and we’ll confirm the sizing. Send us a message
Specifications
ILF 600 — Inline Pre-Filter System specifications

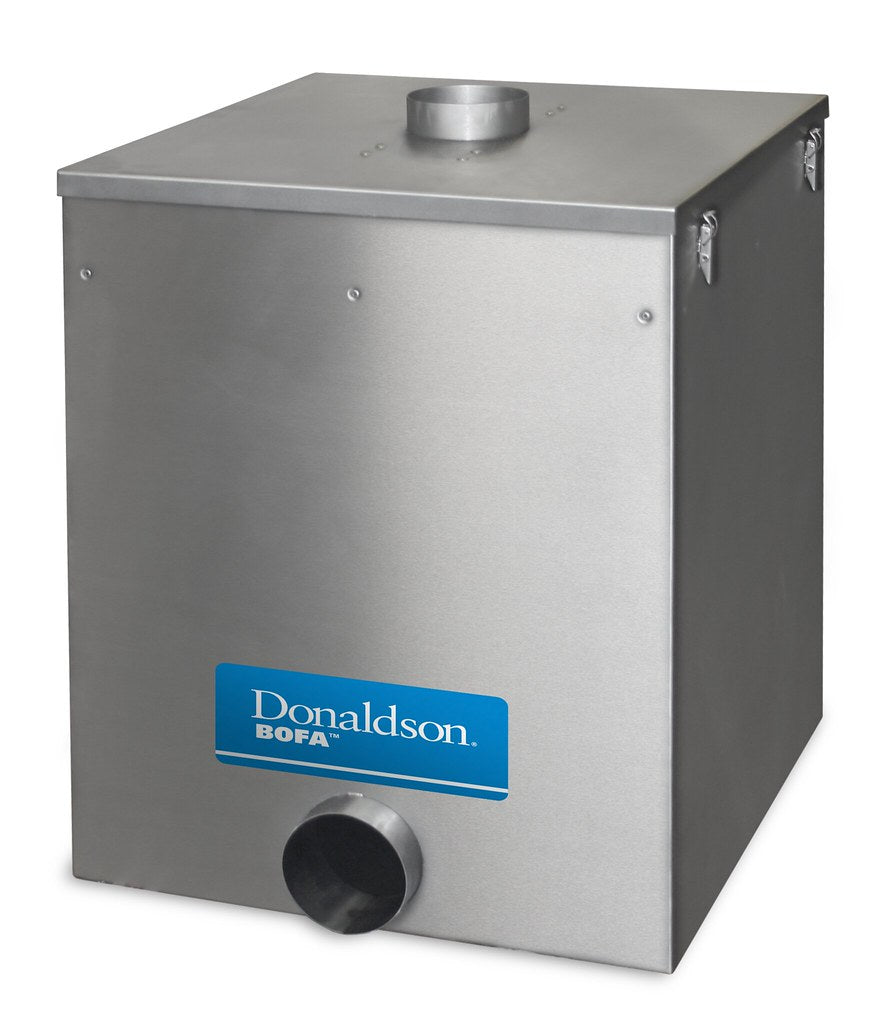

Donaldson BOFA ILF 600 inline pre-filter for applications that make a lot of dust or particulate, with double the capacity of the ILF 300. It sits between the process and a Donaldson BOFA extractor and catches dust before it reaches the extractor's own filters, so they last longer. Stainless steel, with a 125 mm (4.9 in) inlet and outlet; it comes with the lower grade (F6) pre-filter, replacement 1UA1030151, and takes the higher grade 1UA1030255. Not for wet applications or acidic fumes. Part number 1UA1030073.
| Type | Inline pre-filter unit |
|---|---|
| Inlet and outlet | 125 mm (4.9 in) |
| Size (H × W × D) | 32.3 × 24.8 × 25.0 in (820 × 631 × 635 mm) |
| Weight | 77 lb (35 kg) |
| Pre-filter supplied | Lower grade (F6); replacement 1UA1030151 |
| Higher grade pre-filter | 1UA1030255 (F8) |
| Filter area | 60.8 sq ft (5.7 m²) |
| Construction | Stainless steel |
| Not for | Wet applications or acidic fumes |
| Part number | 1UA1030073 |
| Used with | AD 1000 iQ, AD 1000 PRO OS and Connect, AD 1500 iQ, AD 350, AD 500 iQ, AD Nano+, AD Oracle iQ, AD Oracle PRO OS and Connect, AD Oracle SA iQ |
Source: Donaldson BOFA ILF 600 data sheet (V1.1) and user manual; Americas price list, 2026
Spec sheet (PDF)DS-ILF-600-BOFA-US-V1.1.pdf
