Donaldson BOFA · Laser fume extractor
Heavy-duty laser applications. iQ display and filter monitoring.
From Price $11,270.80
Donaldson list $11,864.00
Needs a 230 V single-phase supply. Check your site power.
Need a hose kit or accessories? Send us a message
Taxes and shipping are calculated at checkout. Buying for a business? Purchase orders and tax-exempt accounts
Specifications

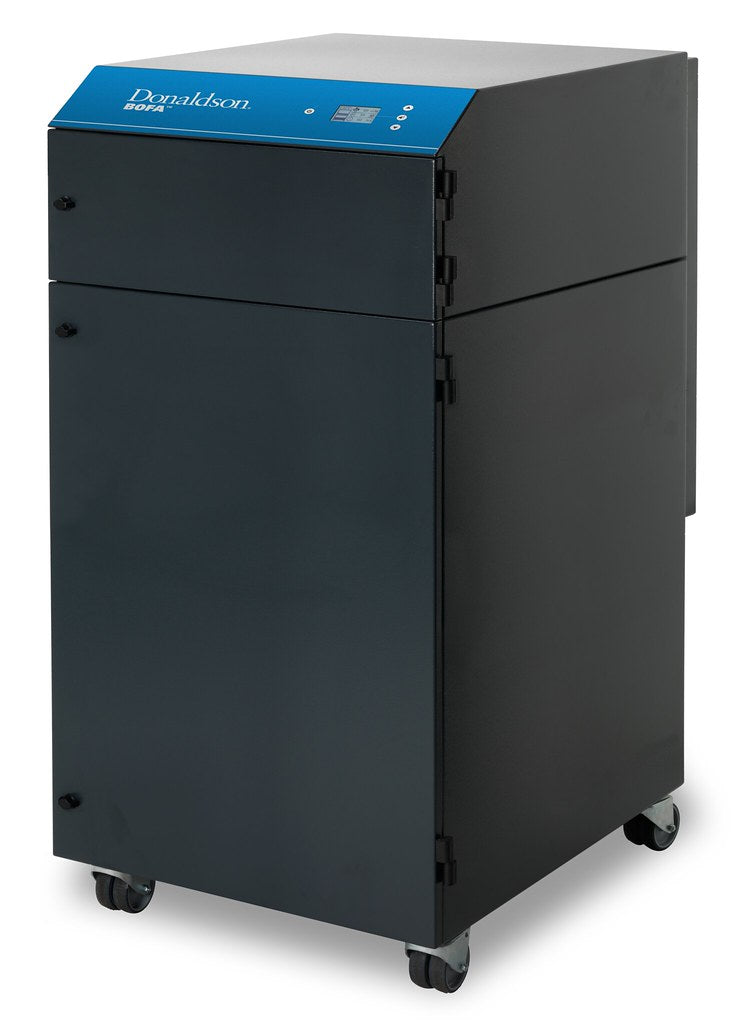

The Donaldson BOFA AD 1500 iQ is a high-capacity intelligent fume extraction system for heavy-duty laser applications. With 735 cfm airflow — the highest in the AD iQ range — real-time monitoring, and independent filter tracking, this system handles the most demanding laser processing environments with ease.
| Application | Heavy-duty laser applications |
|---|---|
| Controls | iQ display with real-time airflow reading and filter-condition monitoring |
| Connectivity | USB port for remote diagnostics |
| Versions | 230 V single-phase; 3 options: standard; with 24 V stop/start, System OK signal and override; or stainless steel with 24 V stop/start and System OK signal |
| Cabinet | Powder-coated or stainless steel |
| Airflow | 735 cfmTest conditions not stated on the datasheet. |
| Settable airflow range | Not published |
| Pressure | 100 mbar |
| Inlet | 4.92 in · 125 mm |
| Pre-filter | DeepPleat DUO, F8 · 1UA1030222 |
| Combined filter | HEPA 99.995% at 0.3 µm, 53.7 L carbon · 1UA1030297 |
| Electrical, as sold | 230 V, single-phase, 50/60 Hz; 24 A full load |
| Size (H × W × D) | 47.4 × 24.4 × 31.1 in |
| Weight | 322 lb |
| Noise, typical | < 68 dB(A) |
Replacement filters
Order only the ones you’re replacing.
Stage 1 of 2 · DeepPleat DUO pre-filter
2 versions · choose one. Match the part number on the label of the DeepPleat DUO pre-filter you’re replacing.
Stage 2 of 2 · Combined HEPA + gas filter
Not sure which filter you need?
Send us a messageModel name
On the rating label on the side or rear of the unit. The label also shows the serial number. Position varies by model.
Filter part number
On the label of the filter you’re replacing, for example 1UA1030155. Older labels may show the same number without the 1U.
Price
per filter
Available to order
Price shows once you choose a version.
Choose a version first
We’ll check if we can supply it.
Priced per filter · Available to order
Product detailsHow to check
Look at the label on the in your unit and match the part number: .
Still not sure? Send us the model and serial number from the rating label and we’ll confirm the version before you order.
Price
per filter
Available to order
Price shows once you choose a version.
Choose a version first
We’ll check if we can supply it.
Order the exact number on your filter’s label. Different part numbers are different filters, even when they look alike.
Price
per filter
Help choosing
Tell us your laser model and what you cut or engrave. We’ll help you choose the version, hose kit and add-ons.
Send us a messagePurchase orders, tax-exempt accounts and formal quotes.
Quotes and purchase orders
Medium to heavy-duty laser applications. iQ display.
515 cfm unrestricted · 4.92 in · 115 V
$7,884.05 Donaldson list $8,299.00
View details
The AD 1000 PRO OS with a two-way Ethernet data link.
515 cfm unrestricted · 4.92 in · 115 V
From $7,107.90 Donaldson list $7,482.00
View details

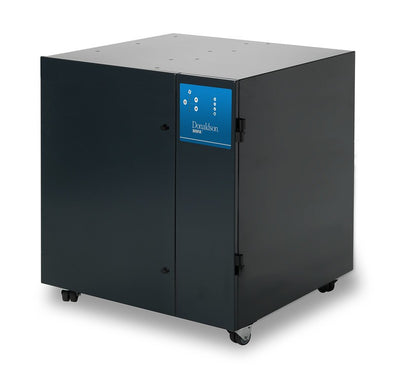

Ride-on base unit with a large platform, for laser engraving.
