Donaldson BOFA · Electronics and soldering fume extractor
Mobile dust and fume extraction, with an arm and hood.
From Price $3,636.60
Donaldson list $3,828.00
Need a hose kit or accessories? Send us a message
Taxes and shipping are calculated at checkout. Buying for a business? Purchase orders and tax-exempt accounts
Specifications

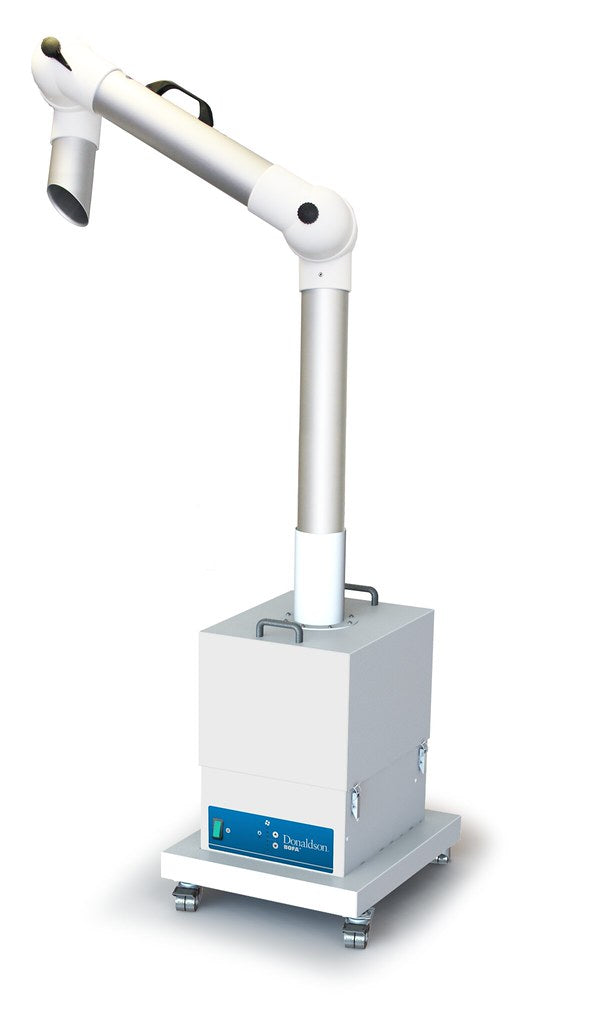

The Donaldson BOFA Mobile FumeKart is a fully portable dust and fume extraction system on castors, suitable for electronics soldering, welding, and other applications. With 223 cfm airflow, 99.995% HEPA filtration at 0.3 microns, and 19 liters of activated carbon, this system provides comprehensive fume and odor removal wherever it is needed. Available with 75mm or 100mm extraction arm configurations with optional VOC sensor.
| Application | Dust particles, weld fumes, vapors and other pollutants |
|---|---|
| Controls | Not published |
| Connectivity | Not published |
| Versions | 115 V, VOC sensor; 2 options: 75 mm or 100 mm arm |
| Cabinet | Powder-coated |
| Airflow | 223 cfmTest conditions not stated on the datasheet. |
| Settable airflow range | Not published |
| Pressure | Not published |
| Inlet | 2.9 or 3.9 in arm |
| Pre-filter | 95% at 0.9 µm · 1UA1030167 |
| Combined filter | HEPA 99.995% at 0.3 µm, 19 L carbon · 1UA1030166 |
| Electrical, as sold | 115 V, 60 Hz; 12.5 A full load |
| Size (H × W × D) | 33.1 × 18.7 × 21.7 in |
| Weight | 119 lb |
| Noise, typical | < 64 dB(A) |

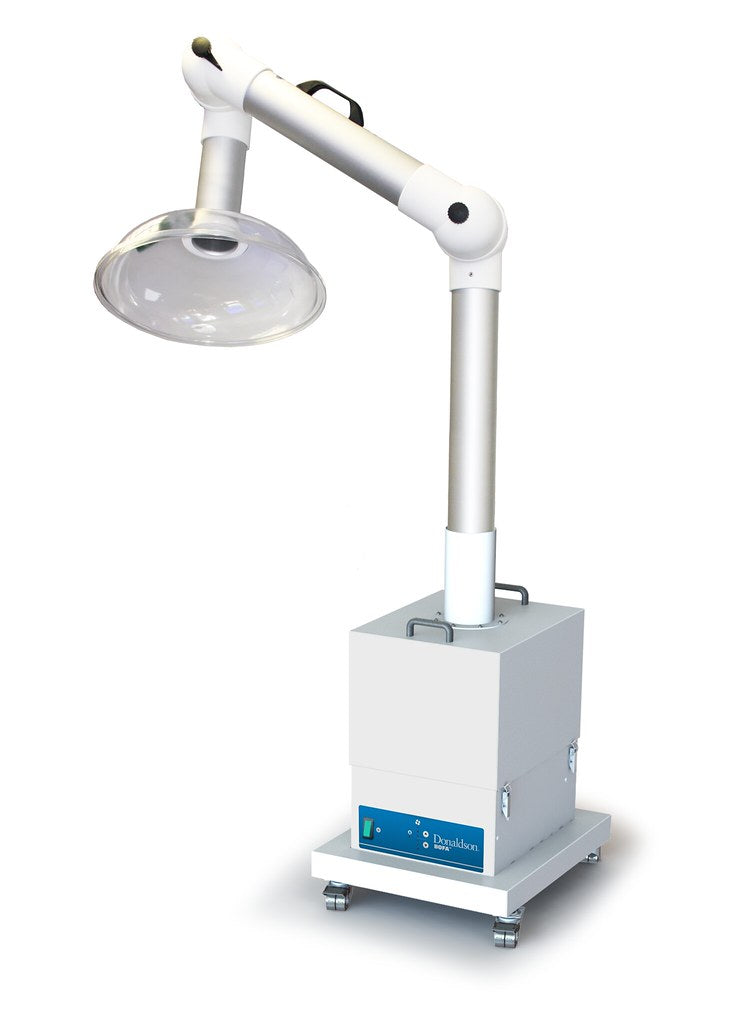

Extraction arm and hood
Replacement filters
Order only the ones you’re replacing.
Stage 1 of 2 · Pre-filter
Stage 2 of 2 · Combined HEPA + gas filter
Not sure which filter you need?
Send us a messageModel name
On the rating label on the side or rear of the unit. The label also shows the serial number. Position varies by model.
Filter part number
On the label of the filter you’re replacing, for example 1UA1030155. Older labels may show the same number without the 1U.
Price
per filter
Available to order
Price shows once you choose a version.
Choose a version first
We’ll check if we can supply it.
Priced per filter · Available to order
Product detailsHow to check
Look at the label on the in your unit and match the part number: .
Still not sure? Send us the model and serial number from the rating label and we’ll confirm the version before you order.
Price
per filter
Available to order
Price shows once you choose a version.
Choose a version first
We’ll check if we can supply it.
Order the exact number on your filter’s label. Different part numbers are different filters, even when they look alike.
Price
per filter
Help choosing
Tell us about your process and what you need. We’ll help you choose the setup.
Send us a messagePurchase orders, tax-exempt accounts and formal quotes.
Quotes and purchase orders
Dual-arm extraction for soldering. Install kit included.
106 cfm · 2 × 2.0 in inlets · 115 V
$1,155.20 Donaldson list $1,216.00
View details
Tip extraction for hand soldering, up to 15 operators.
22 l/min per tip · 2.0 in inlet · 115 V
$3,197.70 Donaldson list $3,366.00
View details
