PLS
PLS6.150D SuperSpeed Platform
A workhorse for businesses where engraving time matters.
SuperSpeed
The PLS6.150D with SuperSpeed™: with two CO₂ lasers installed, it engraves two raster lines at a time, on a 32 × 18 in work area.
- Processing area (W × D)
- 32 × 18 in
- Max material height
- 8 in (9 in with 1.5″ lens)
- Max laser power
- 150 W (2 × 75 W CO₂)
- Laser sources
- 2 CO₂ (required for SuperSpeed)
Request a quote for this system. Universal laser systems are quoted to your configuration: laser wattage, options and accessories.
Request a quote Send us a messageDownload the spec sheet (PDF)Who it’s for
Is the PLS6.150D SuperSpeed the right fit?
When raster engraving fills your production schedule, the PLS6.150D SuperSpeed deserves a closer look. It combines the PLS platform with Universal’s SuperSpeed option, using two CO₂ lasers to engrave two raster lines at once. For businesses producing repeated engraved designs, the value is in addressing the engraving portion of the job while retaining a versatile system for other work.
Where it fits
Engraving businesses
Evaluate SuperSpeed for recurring raster-heavy orders.
Personalization and awards shops
Match the configuration to the designs and quantities you produce most often.
Busy fabrication facilities
Add a production-focused option when engraving is a significant part of the workload.
Overview
About the PLS6.150D SuperSpeed
The PLS6.150D SuperSpeed is the PLS6.150D with Universal's SuperSpeed™ option: with two CO₂ lasers installed, it engraves two raster lines at a time. SuperSpeed needs both laser sources, up to 150 W in total (2 × 75 W), at 10.6 or 9.3 µm. The work area is 32 × 18 in with up to 8 in of material height (9 in with the 1.5″ lens). It needs a 220–240V/15A circuit and two 4″ exhaust ports with 500 CFM at 6 in static pressure.
PLS6.150D SuperSpeed Platform
Specifications
Work area
- Processing area (W × D)
- 32 × 18 in
- Max material height
- 8 in (9 in with 1.5″ lens)
Laser
- Max laser power
- 150 W (2 × 75 W CO₂)
- Laser sources
- 2 CO₂ (required for SuperSpeed)
- 10.6 µm CO₂ wattages
- 10, 30, 40, 50, 60, 75 W
- 9.3 µm CO₂ wattages
- 30, 50, 75 W
- 1.06 µm fiber laser
- CO₂ only
Features
- Key features
- SuperSpeed™: two lasers engrave two raster lines at once, in about half the time · two CO₂ lasers, up to 150 W
- Rotary fixture (optional accessory)
- Up to 7 in diameter
Site requirements

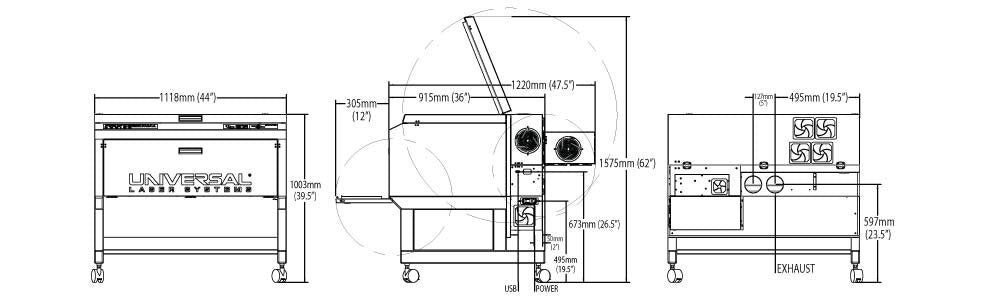

- Style and size (W × D × H)
- Free-standing · 44 × 36 × 39 in
- Weight
- 345 lb
- Electrical
- 220–240V/15A
- Exhaust requirement
- Two 4″ ports · 500 CFM @ 6 in static pressure
- Software and computer
- UCP driver · dedicated Windows PC (7–11), USB
From the ULS PLS6.150D spec sheet REV2024.03.
PLS
Other PLS models
- Dual laser
PLS6.150D Platform
32 × 18 in work area · two CO₂ lasers, up to 150 W
Ownership
Equipment for the long term. Support beyond the sale.
A laser becomes part of how your business works—or how your students learn. Choosing one means thinking beyond the first project. Abernethy Beck can help you select a system for today’s work, then support ownership with replacement parts, optics, laser cartridge exchange options, and guidance as your needs change.
Have an application in mind?
Whether you’re considering VLS, PLS, or ULTRA, we can coordinate material testing with the Universal Laser Systems Applications Lab. Evaluate how your materials respond and review the results before selecting a system—especially valuable for demanding R&D and precision applications. Share your materials and the results you need in the form below.
Parts and supplies
Replacement parts that fit the PLS6.150D SuperSpeed, listed by part number.
Exhaust for this laser
Exhaust requirement
Two 4″ ports · 500 CFM @ 6 in static pressure
The PLS6.150D SuperSpeed needs exhaust airflow while it runs. You can vent it outside through ducting with a blower that meets this requirement. If you can’t vent outside, use a fume extractor: it filters the air and returns it to the room.
Questions
Questions about the PLS6.150D SuperSpeed
What does my site need for the PLS6.150D SuperSpeed?
Electrical: 220–240V/15A. Exhaust: Two 4″ ports, 500 CFM @ 6 in static pressure. Software and computer: UCP driver, dedicated Windows PC (7–11), USB.
Do I need a fume extractor for the PLS6.150D SuperSpeed?
Not always. The PLS6.150D SuperSpeed needs exhaust airflow while it runs (see the exhaust requirement in the specifications). You can vent it outside through ducting with a blower that meets that requirement. If you can’t vent outside, a fume extractor filters the air and returns it to the room. We can suggest one for your space.
Can I order with a purchase order?
Yes. Schools, labs, government buyers and companies can order on a purchase order. See quotes and purchase orders for how it works.
Can I finance this?
Yes. We work with several equipment-financing partners. See our equipment financing options for details and to get started.
I own an M, V or X series. Is there an upgrade path?
Yes. Universal’s migration program lets M, V and X series owners move to a new VLS or PLS and keep a compatible laser cartridge. See the migration program page for the details.
