Universal Laser Systems

PLS6.150D Platform

PLS6.150D Platform

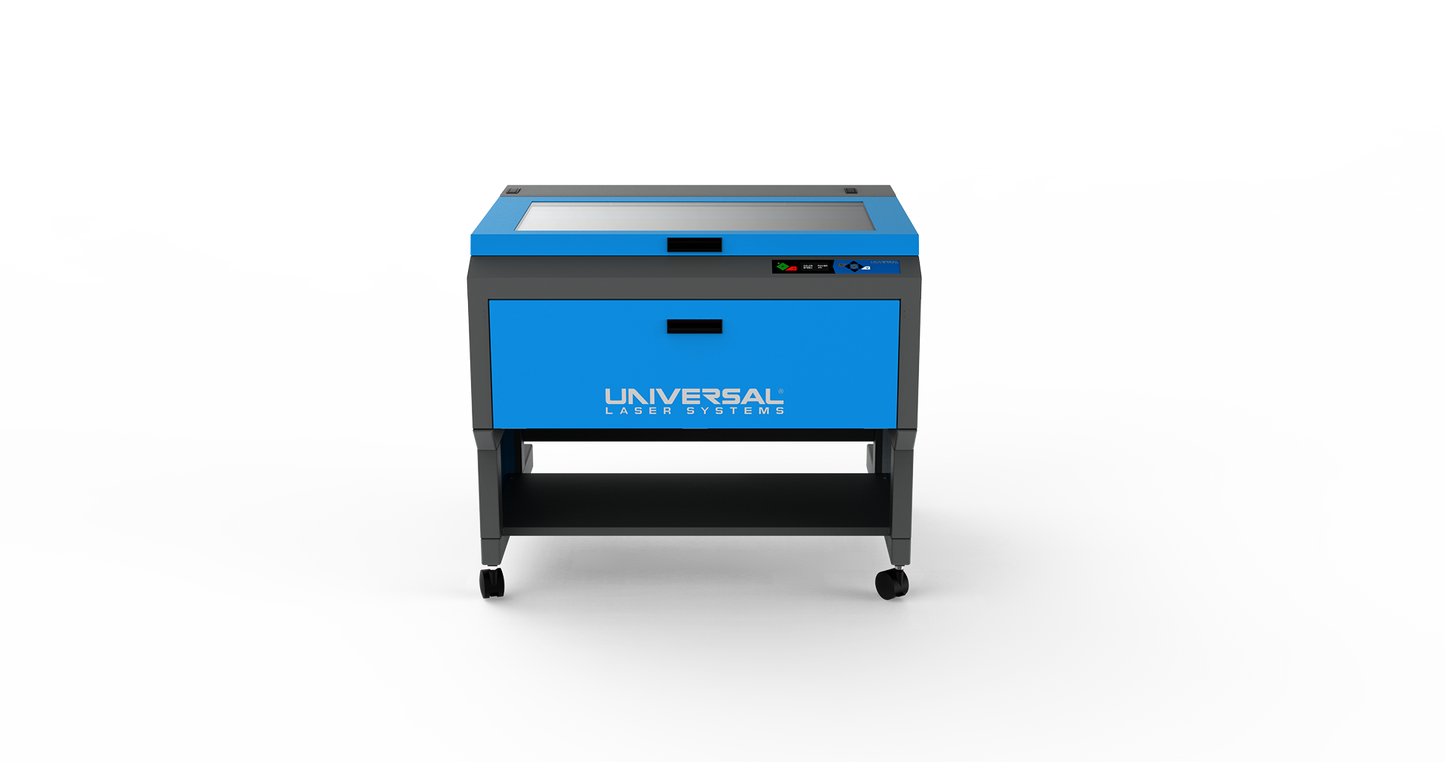

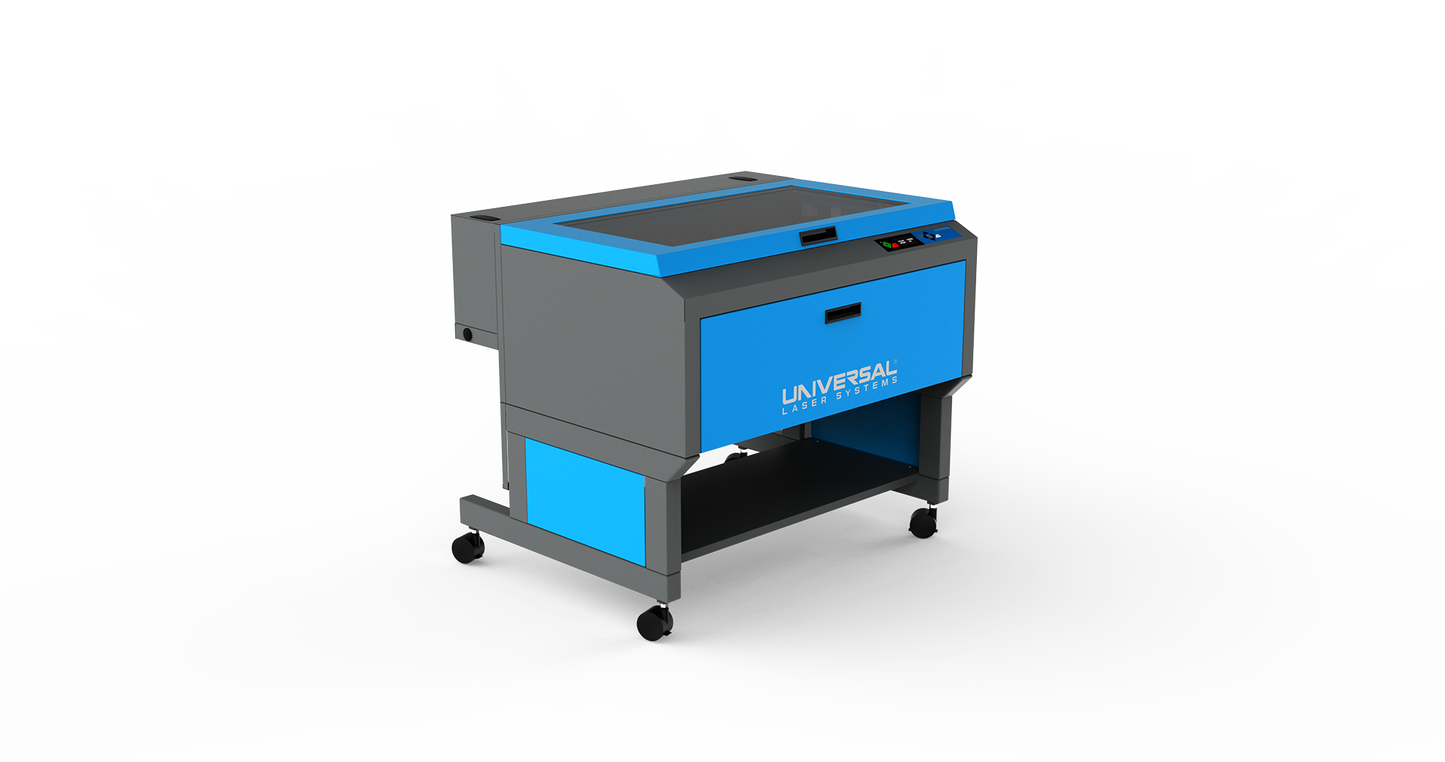

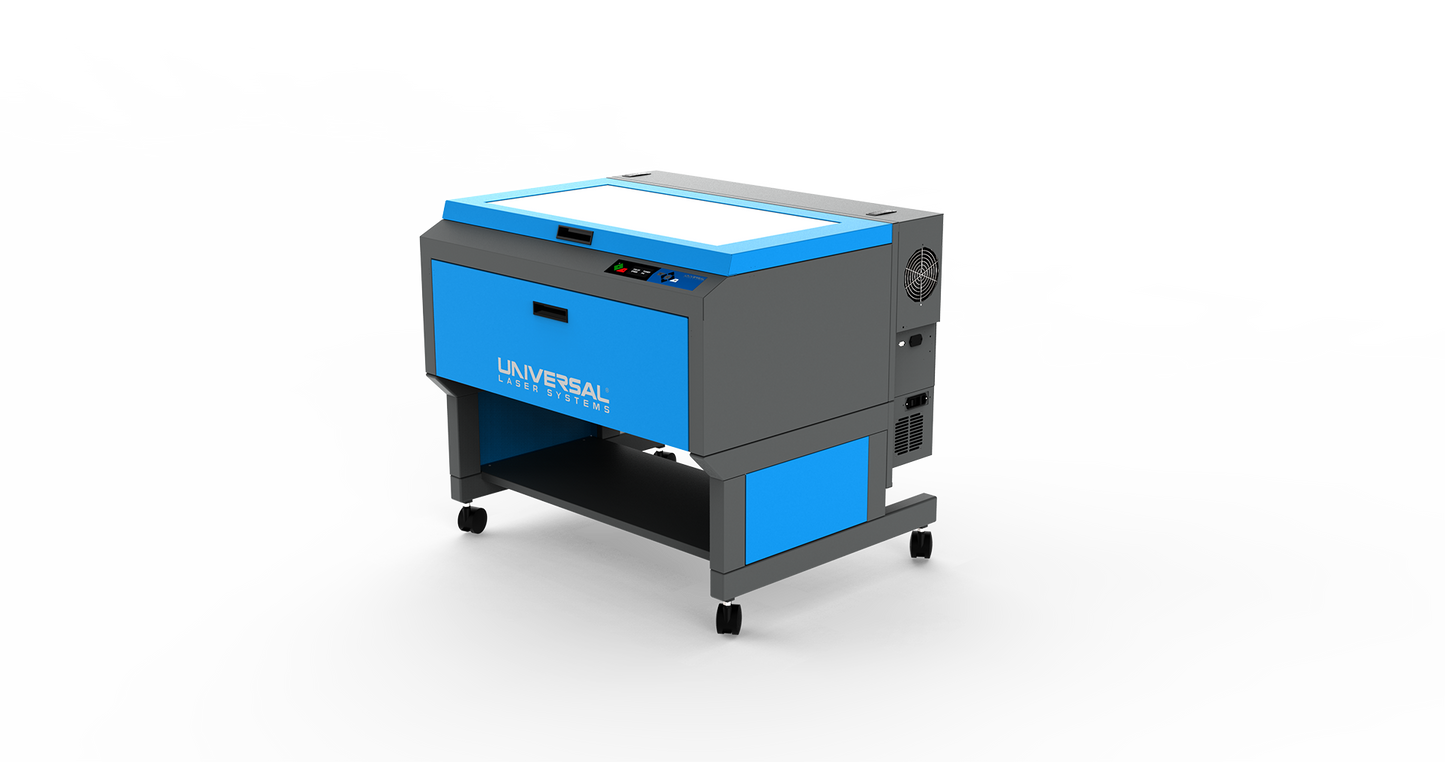

The Universal Laser PLS6.150D is a highly versatile, free-standing laser cutting and engraving platform, offering dual-laser compatibility with an expansive processing area and advanced user interface. Ideal for precision material processing, it combines state-of-the-art technology with user-friendly features, making it suitable for a wide range of industrial applications.

View full details

Get a Quote

Fill out the form below for Availability & pricing

Abernethy Beck Inc proudly presents the Universal Laser PLS6.150D, a state-of-the-art laser processing solution designed for precision, efficiency, and adaptability in a range of industrial applications. This unit represents a significant advancement in laser technology, offering robust features tailored for complex material processing tasks.

At the core of the PLS6.150D's design is a substantial material processing area measuring 32" x 18" x 8.5" (813 x 457 x 216 mm), facilitating a broad spectrum of material sizes and types. The platform's dual-laser system supports the integration of two 10.6µm CO2 lasers, each with a variable power range between 10 and 150 watts, or a hybrid configuration comprising a 9.3µm CO2 laser paired with a 10.6µm CO2 laser, catering to specialized material processing requirements.

The PLS6.150D's motorized Z-axis is capable of managing loads up to 40 lbs (18 kg), demonstrating its capacity for handling substantial material weights. This is complemented by a selection of focus lenses, including a standard 2.0 inch lens and the High Power Density Focusing Optics (HPDFO™), offering unparalleled precision and versatility in cutting and engraving applications.

A key feature of the PLS6.150D is its advanced user interface, incorporating a keypad and an LCD display for real-time monitoring and adjustments. The system's compatibility with Windows® 7/8/10/11 operating systems and the integration with the Universal Control Panel (UCP) streamline the workflow, allowing direct import and efficient handling of graphic designs. The UCP's Intelligent Materials Database is a significant value-add, providing automated, optimized settings for a diverse range of materials and thereby enhancing processing accuracy and efficiency.

In terms of safety and operational efficiency, the PLS6.150D excels with its integrated Gas Assist feature. This system effectively channels a stream of gas to the material's laser interaction point, simultaneously improving processing quality and safeguarding the optical components. The platform's fire detection system, equipped with an audible alarm, ensures a high level of safety during operation.

The PLS6.150D's modular design allows for a variety of optional accessories, enhancing its utility in different processing contexts. These include various Gas Assist attachments for specific applications, a compressed air source for optimal air quality, and sophisticated air filtration systems, such as the UAC 2000 and UAC 4000, designed for enhanced operational safety and environmental compliance.

The Universal Laser PLS6.150D, available through Abernethy Beck Inc, is an exemplary piece of laser processing equipment. Its combination of technical sophistication, operational versatility, and safety features makes it an indispensable asset for businesses seeking to optimize their material processing operations with precision and efficiency.

General Specifications:

Model: PLS6.150D

Type: Free-Standing Laser Platform

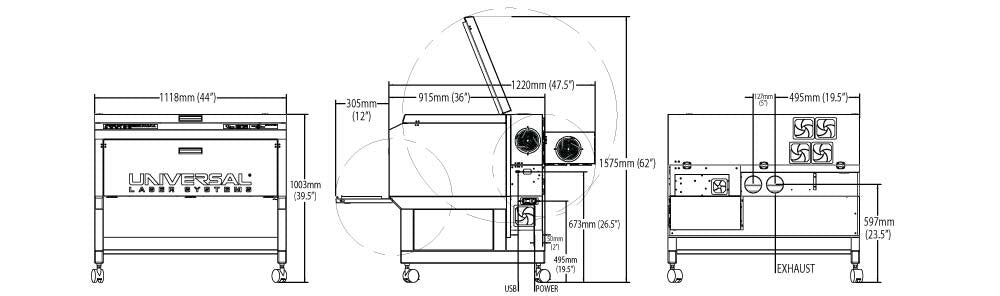

Overall Dimensions (W x H x D): 44 x 39 x 36 inches (1118 x 991 x 914 mm)

Weight: 345 lbs (156 kg)

Cabinet Style: Free-Standing

Laser Processing Area:

  • Area (W x H): 32 x 18 inches (813 x 457 mm)
  • Maximum Part Size (W x H x D): 37 x 23 x 8.5 inches (940 x 584 x 216 mm)

Laser Options:

  • Laser Types: Dual 10.6µm CO2 lasers or a combination of 9.3µm and 10.6µm CO2 lasers
  • Laser Power Range: 10 to 150 watts (10.6µm), 30 to 75 watts (9.3µm)

Performance Features:

  • Rotary Capacity: Max Diameter 8 inches (203 mm)
  • Available Focus Lenses: 2.0 inches (51 mm), HPDFO™ (High Power Density Focusing Optics), 1.5 inches, 4.0 inches

Computer and Software Requirements:

  • Operating System: Windows® 7/8/10/11 (32/64 bit)
  • USB Port: One available USB port (2.0 or higher)
  • Software: Universal Control Panel (UCP) with Intelligent Materials Database

Safety and Efficiency:

  • Optics Protection: Integrated Gas Assist with included optics protection
  • Fire Detection: Audible alarm system

Exhaust Requirements: Two 4 inch (102 mm) ports, 500 CFM @ 6 inch static pressure (850 m3/hr at 1.5 kPa)

Optional Accessories:

  • Gas Assist Attachments: Coaxial and Lateral Gas Assist
  • Material Handling: Flow-Through Cutting Table, Rotary Fixture, Cylindrical Material Indexer, Configurable Cutting Table (Pin Table)

Power and Environmental Requirements:

  • Power: 220V-240V/15A
  • Compressed Air Source: Optimally-conditioned air for Optics Protection and Gas Assist components

Additional Optional Features:

  • 1-Touch Laser Photo™: Software for converting digital photographs into bitmap files for engraving
  • SuperSpeed™: Technology for improved laser system productivity in engraving and marking
  • Automation Interface: For integration into automated manufacturing environments
