Donaldson BOFA · Replacement filter

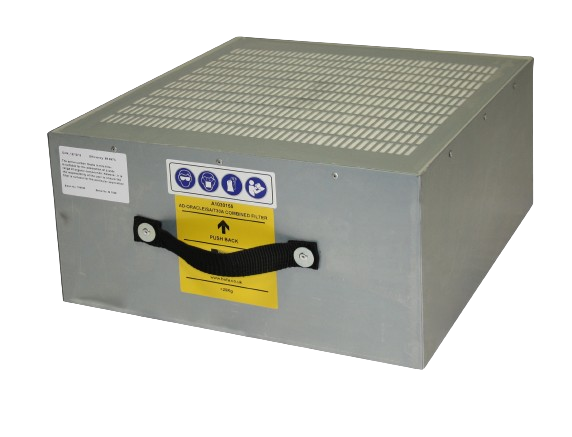

BOFA AD Oracle Combined Filter 1UA1030155
HEPA 99.995% at 0.3 µmper the Donaldson BOFA AD Oracle iQ datasheet
Price $495.00
Donaldson list $532.00 · each
Ordering for several machines or on a purchase order? Quotes and purchase orders
- Authorized Donaldson BOFA distributor
- Ships from US stock
- Free UPS Ground on orders of $500 or more
- Business accounts: purchase orders and tax-exempt accepted
- Questions? Send us a message
Does it fit my machine?
No BOFA model matches. Send us a message
We’ll keep your model for this visit.
Not sure which model you have? Send us a message
Fits these BOFA models (5)
- AD Base 1 OracleMachine page
- AD Base 2 OracleMachine page
- AD Oracle iQMachine page
- AD Oracle PRO OS and ConnectMachine page
- AD Oracle SA iQMachine page
Fits these older models (2)
- AD Oracle iQ W3No longer made
- AD Zing 24 BaseOlder model
Model not listed? Send us a message
Filter version
Match the part number on the label of the filter you’re replacing. The versions aren’t interchangeable, so we don’t pick one for you.
I’m not sure which version I have.Send us a messageThe part number goes with it.
Complete the set
Complete the set
Pick your model under “Does it fit my machine?” to see the filters that go with this one. We only show filters that fit the model you pick.
Specifications
1UA1030155 specifications
Donaldson BOFA combined HEPA/gas replacement filter compatible with the AD Oracle iQ, AD Oracle SA iQ, AD Base 1 Oracle, AD Base 2 Oracle, and AD Zing 24 Base fume extraction systems. Provides 99.997% efficiency at 0.3 microns with approximately 15 kg of impregnated activated carbon.
| Type | Combined filter: HEPA and activated carbon |
|---|---|
| HEPA efficiency | 99.995% at 0.3 µm |
| HEPA media area | 49.5 ft² |
| Activated carbon | 15.5 L |
| Filter spec sheet (2018) | 99.997% at 0.3 µm, about 15 kg carbon |
| Size (H × W × D) | 190 × 370 × 390 mm approx. |
| Pack size | Single filter |
| Part number | 1UA1030155 (label may show A1030155) |
HEPA efficiency, HEPA media area and activated carbon: Donaldson BOFA AD Oracle iQ datasheet (US, v1.8). Other rows: Donaldson filter spec sheet EFS00001 (2018).
Replacing it
Donaldson BOFA, on YouTubePick your model to see Donaldson’s filter-change video for it. Send us a message
Filter help
Not sure which filter you have?
Send us the model and the part number from the filter’s label. We’ll confirm the match before you order.
Send us a messageBuying for a business?
Purchase orders and tax-exempt accounts for labs, schools and shops.
Quotes and purchase ordersPart no.
One set per machine
Each filter goes in the cart as its own line.
