Donaldson BOFA · Cooling unit
Supplies filtered cooling air to a laser. Not a fume extractor.
From Price $2,112.80
Donaldson list $2,224.00
Need a hose kit or accessories? Send us a message
Taxes and shipping are calculated at checkout. Buying for a business? Purchase orders and tax-exempt accounts
Specifications

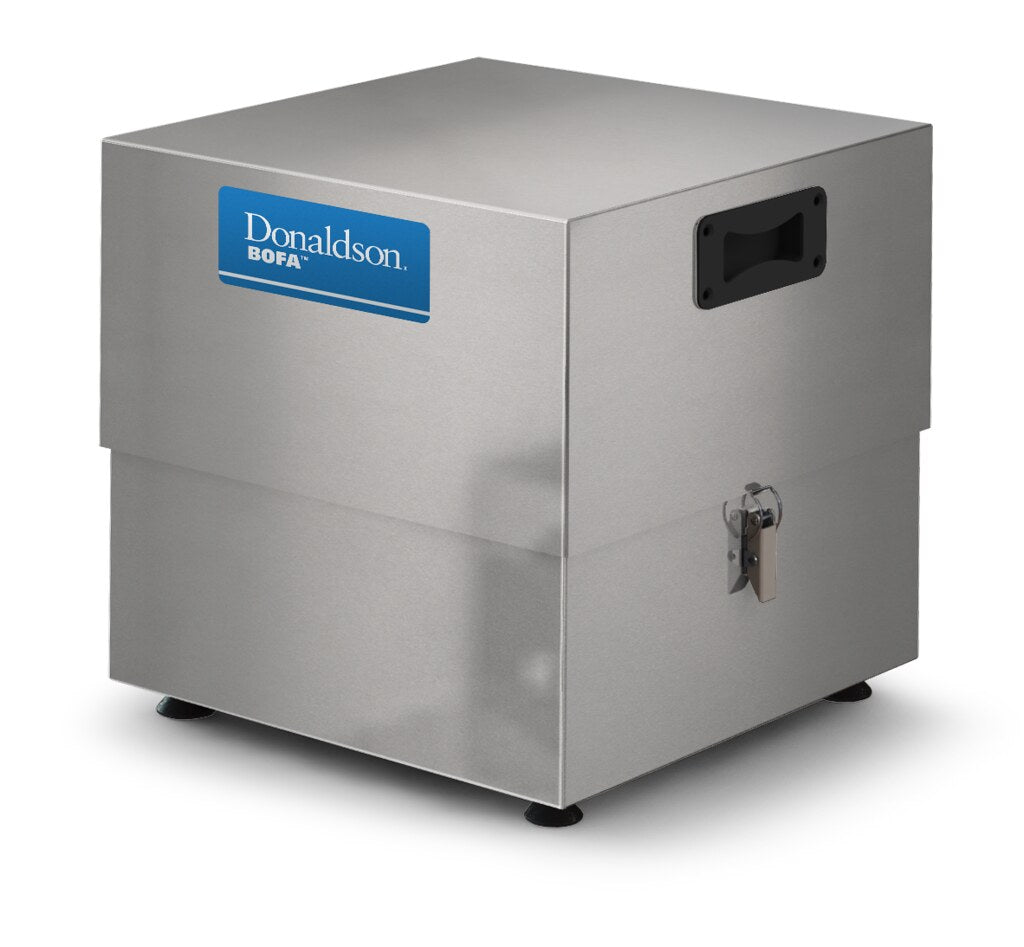

The Donaldson BOFA AD 350 CU is a filtered cooling unit designed for laser applications, supplying filtered air to both the laser and power supply module to ensure optimal performance and reliability. Delivering 206 CFM airflow in a compact 41 lb brushed stainless steel cabinet, it can also serve as a seal to increase the IP rating of the laser.
| Application | Filtered cooling air for a laser and its power supply; not a fume extractor |
|---|---|
| Controls | Control panel |
| Connectivity | Not published |
| Configuration | 115 V |
| Cabinet | Stainless steel |
| Airflow | 206 cfm of cooling airTest conditions not stated on the datasheet. |
| Settable airflow range | Not published |
| Pressure | Not published |

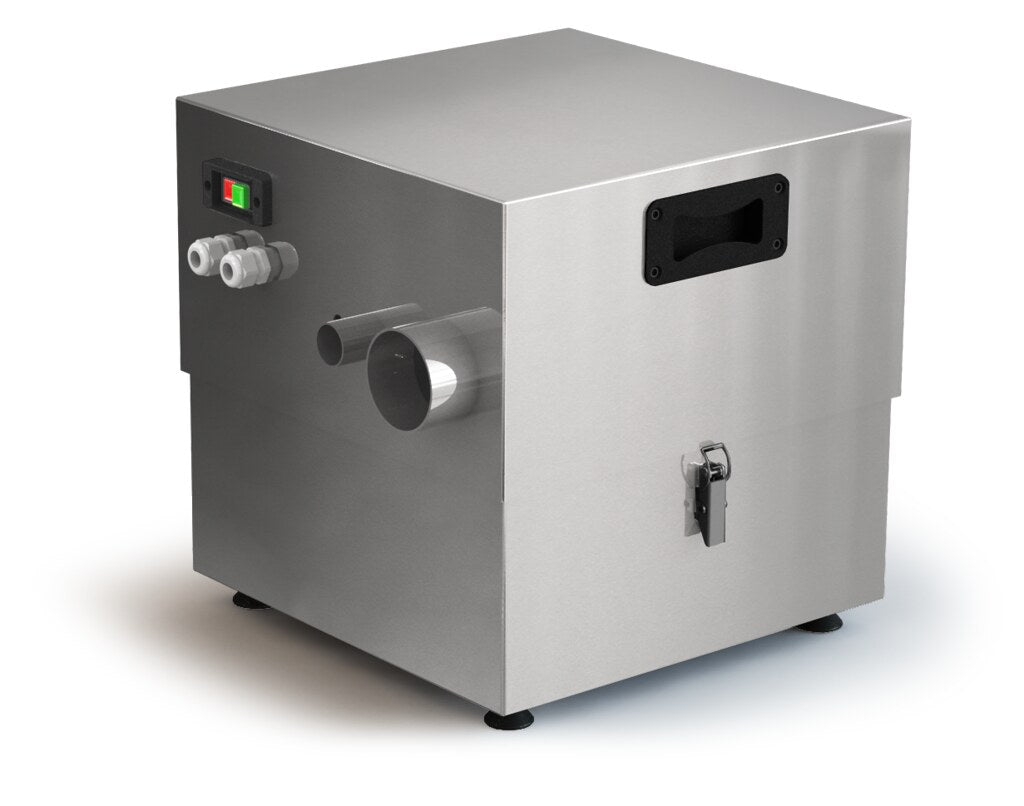

| Inlet | 1.3 in (32 mm) and 2.9 in (75 mm) |
| Pre-filter | DeepPleat, 95% at 0.9 µm · 1UA1030056 |
| Main filter | Not applicable |
| Electrical, as sold | 115 V, 60 Hz; 3.5 A full load |
| Size (H × W × D) | 15.8 × 15.0 × 16.5 in |
| Weight | 41 lb |
| Noise, typical | < 68 dB(A) |
Replacement filters
Order only the ones you’re replacing.
Stage 1 of 1 · DeepPleat pre-filter
Not sure which filter you need?
Send us a messageModel name
On the rating label on the side or rear of the unit. The label also shows the serial number. Position varies by model.
Filter part number
On the label of the filter you’re replacing, for example 1UA1030155. Older labels may show the same number without the 1U.
Price
per filter
Available to order
Price shows once you choose a version.
Choose a version first
We’ll check if we can supply it.
Priced per filter · Available to order
Product detailsHow to check
Look at the label on the in your unit and match the part number: .
Still not sure? Send us the model and serial number from the rating label and we’ll confirm the version before you order.
Price
per filter
Available to order
Price shows once you choose a version.
Choose a version first
We’ll check if we can supply it.
Order the exact number on your filter’s label. Different part numbers are different filters, even when they look alike.
