Donaldson BOFA · Temperature control
Keeps the solder-paste printing area at a set temperature.
From Price $11,052.30
Donaldson list $11,634.00
Not a fume extractor. Needs a 230 V supply.
Need a hose kit or accessories? Send us a message
Taxes and shipping are calculated at checkout. Buying for a business? Purchase orders and tax-exempt accounts
Specifications

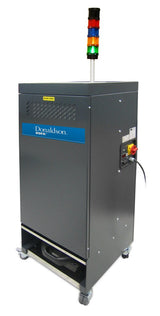

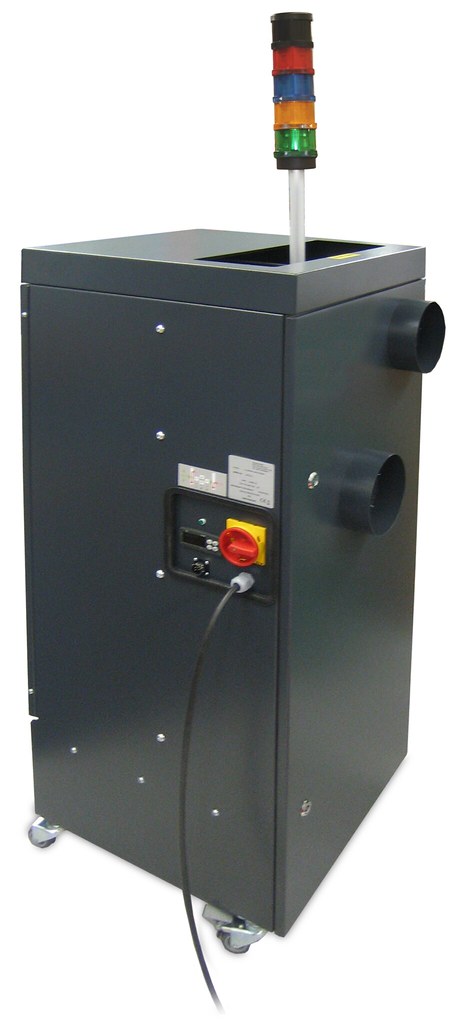

The Donaldson BOFA TCU (Temperature Control Unit) provides programmable temperature control for solder paste printing applications. With a small footprint, condensate collection, and precise plus/minus 1 degree C temperature control across a 19-30 degree C range, the TCU ensures consistent process quality in electronics manufacturing with 2000W cooling capacity and recirculating air delivery.
| Application | Temperature control for solder-paste printing; not a fume extractor |
|---|---|
| Controls | PID controller with a programmable temperature range; warning beacon |
| Connectivity | 0–10 VDC temperature signal shared from the printer sensor |
| Configuration | 230 V |
| Cabinet | Not published |
| Airflow | Not applicable |
| Settable airflow range | Not applicable |
| Pressure | Not applicable |
| Inlet | Not applicable |
| Pre-filter | Pre-filter · 1UA1030305 |
| Main filter | Not applicable |
| Electrical, as sold | 230 V ±10%; 12.6 A full load, 20 A start-up |
| Size (H × W × D) | 68.3 × 21.3 × 26.4 in, height includes beacon |
| Weight | 220 lb |
| Noise, typical | < 75 dB(A) |
Condensate container
Replacement filters
Order only the ones you’re replacing.
Stage 1 of 1 · Pre-filter
Not sure which filter you need?
Send us a messageModel name
On the rating label on the side or rear of the unit. The label also shows the serial number. Position varies by model.
Filter part number
On the label of the filter you’re replacing, for example 1UA1030155. Older labels may show the same number without the 1U.
Price
per filter
Available to order
Price shows once you choose a version.
Choose a version first
We’ll check if we can supply it.
Priced per filter · Available to order
Product detailsHow to check
Look at the label on the in your unit and match the part number: .
Still not sure? Send us the model and serial number from the rating label and we’ll confirm the version before you order.
Price
per filter
Available to order
Price shows once you choose a version.
Choose a version first
We’ll check if we can supply it.
Order the exact number on your filter’s label. Different part numbers are different filters, even when they look alike.
