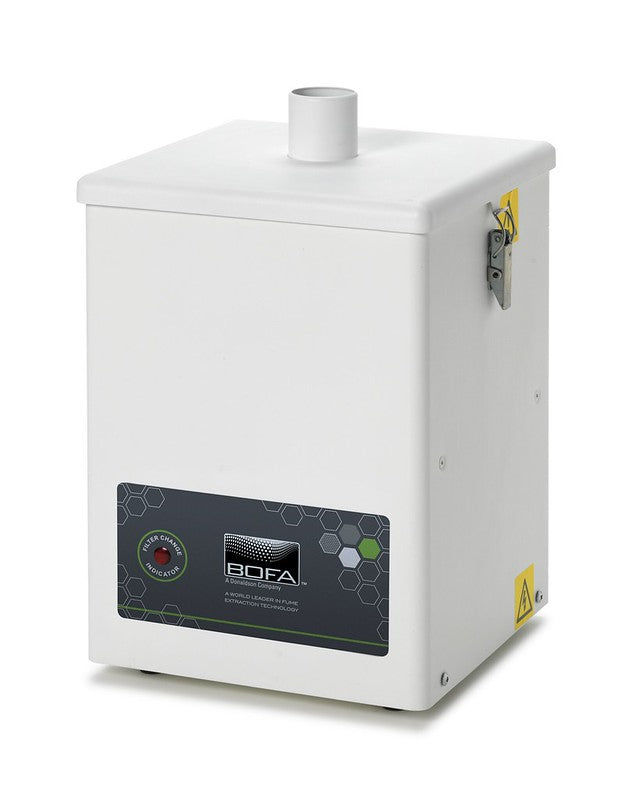

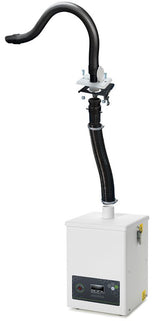

BOFA V200 - Single Port Fume Extractor with Arm

The BOFA V200 fume extraction system is a top-performing solution designed to capture and remove potentially hazardous fumes that are generated during hand soldering tasks in electronics manufacturing environments. The V200 features advanced carbon filter technology and a 99.997% HEPA filtration system, making it highly effective at filtering out particulate matter and chemical fumes.

This single-arm extraction unit is perfect for providing flexible and portable fume extraction, which can be easily moved with the workbench when factory layouts change due to production demands. With low noise levels and fast and easy installation, this unit can be set up quickly with a choice of arms and installation kit.

The BOFA V200 includes a filter blocked indicator and comes in powder-coated mild steel construction that is CE approved. The unit weighs 10kg and has dimensions of 420 x 290 x 270mm (HxWxD). It has a maximum airflow of 90m³/hr / 20mbar and electrical data of 230v 1ph 50/60Hz Full load current: 0.45 amps / 90w or 115v 60/50Hz Full load current: 0.85 amps / 107w. The V200 also includes a range of optional accessories such as arm accessories, granulated carbon gas filter, and installation flex and table bracket.

For a comprehensive fume extraction system that delivers a safe working environment, the BOFA V200 fume extraction system is the ideal choice. To learn more about the BOFA V200 and find the best solution for your needs, contact us today.
