ULTRA

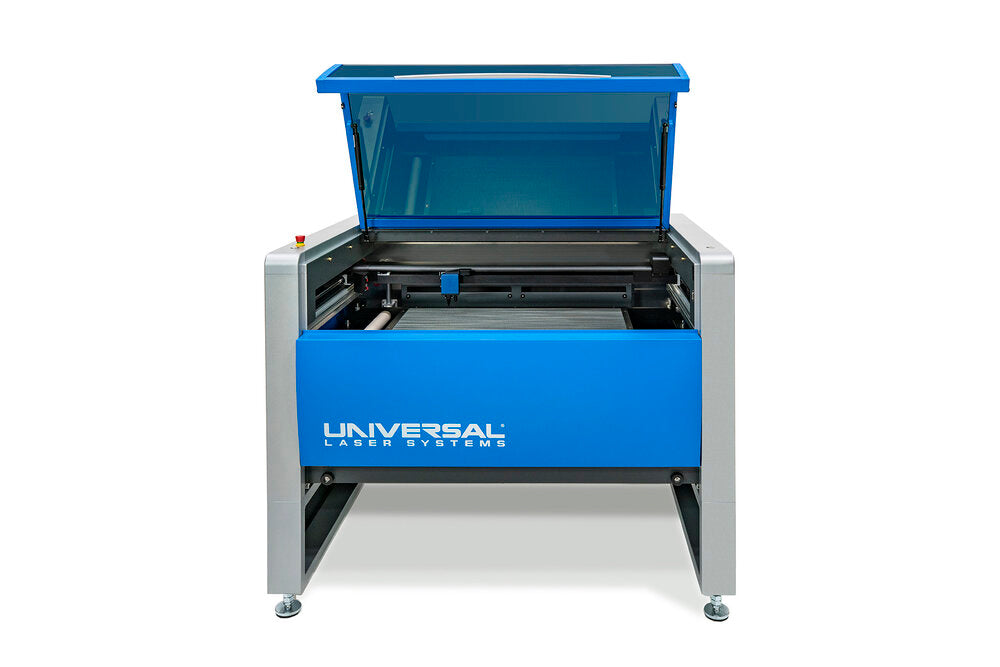

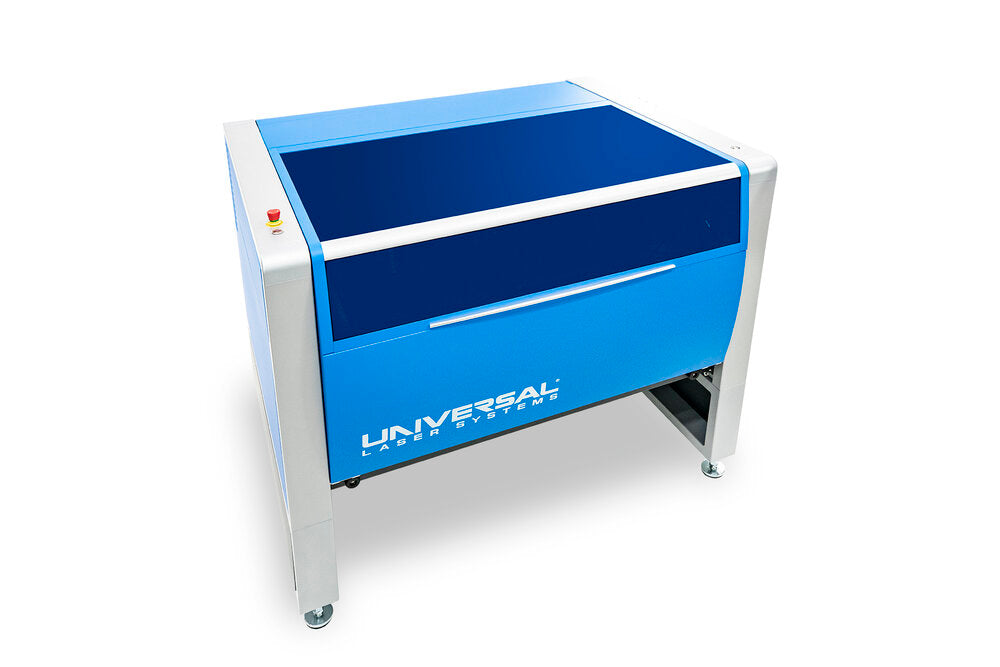

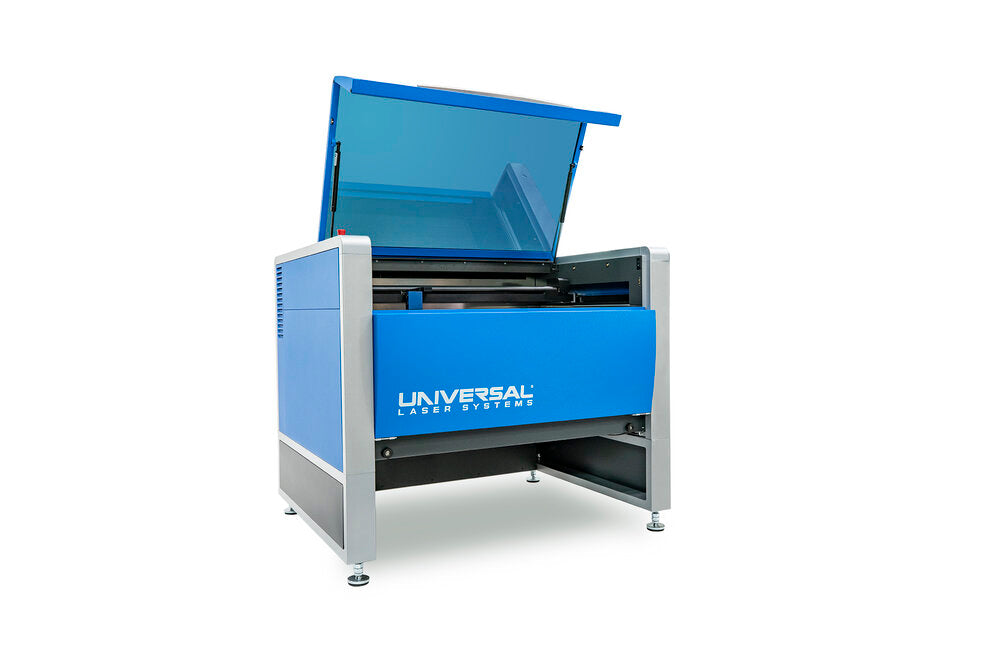

ULTRA R5000
Universal’s highest-capability laser line, in its most compact work area.
CO₂ + fiber
A 32 × 24-inch work area, with up to 150 W CO₂, alone or with 50 W fiber.
- Processing area (W × D)
- 32 × 24 in
- Max material height
- 12 in
- Max laser power
- 150 W CO₂, or 150 W CO₂ + 50 W fiber
- Laser sources
- Up to 2 (2 CO₂, or CO₂ + fiber)
Request a quote for this system. Universal laser systems are quoted to your configuration: laser wattage, options and accessories.
Request a quote Send us a messageDownload the spec sheet (PDF)Who it’s for
Is the ULTRA R5000 the right fit?
With a 32 × 24-inch processing area, the ULTRA R5000 is aimed at product development teams, research labs, and manufacturers whose choice of equipment starts with the material and the required result. Available CO₂ and fiber configurations, touch-probe autofocus, and programmable gas assist provide more ways to configure and control the process.
Where it fits
Product development
Evaluate laser processing as part of developing a new component or product.
University and research labs
Investigate applications requiring more source and process flexibility.
Specialist manufacturers
Select equipment around a defined processing challenge.
Overview
About the ULTRA R5000
The ULTRA R5000 has a 32 × 24 in work area with 12 in of material height. It holds up to two laser sources: CO₂ up to 150 W in all, or a CO₂ laser up to 150 W with a 50 W fiber laser (Multi-Wave Hybrid™). Autofocus and programmable gas assist are built in. It runs from Laser System Manager with the Intelligent Materials Database, on a Windows 10 or 11 PC or the optional 21″ touchscreen. It needs a 220–240V/16A circuit and one 6″ exhaust port with over 700 CFM at 6 in static pressure.
ULTRA R5000
Specifications

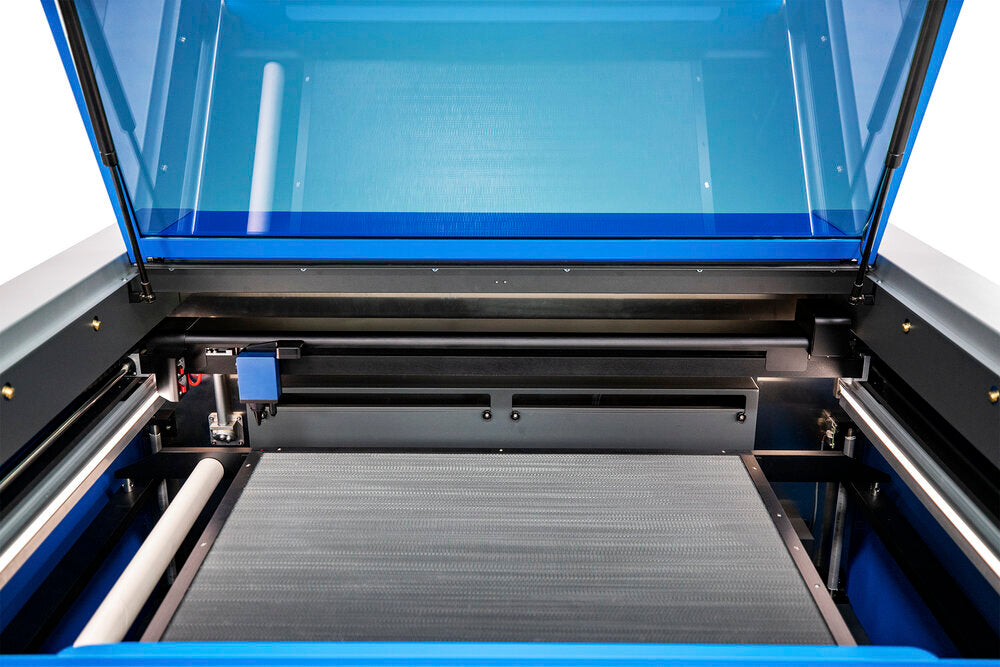

Work area
- Processing area (W × D)
- 32 × 24 in
- Max material height
- 12 in
Laser
- Max laser power
- 150 W CO₂, or 150 W CO₂ + 50 W fiber
- Laser sources
- Up to 2 (2 CO₂, or CO₂ + fiber)
- 10.6 µm CO₂ wattages
- 10, 30, 40, 50, 60, 75, 150 W
- 9.3 µm CO₂ wattages
- 10, 30, 50, 75 W
- 1.06 µm fiber laser
- 50 W
Features
- Key features
- Multi-Wave Hybrid™ (CO₂ + fiber) · touch-probe autofocus · programmable gas assist
- Rotary fixture (optional accessory)
- Rotary axis module available (ask for capacity)
Site requirements

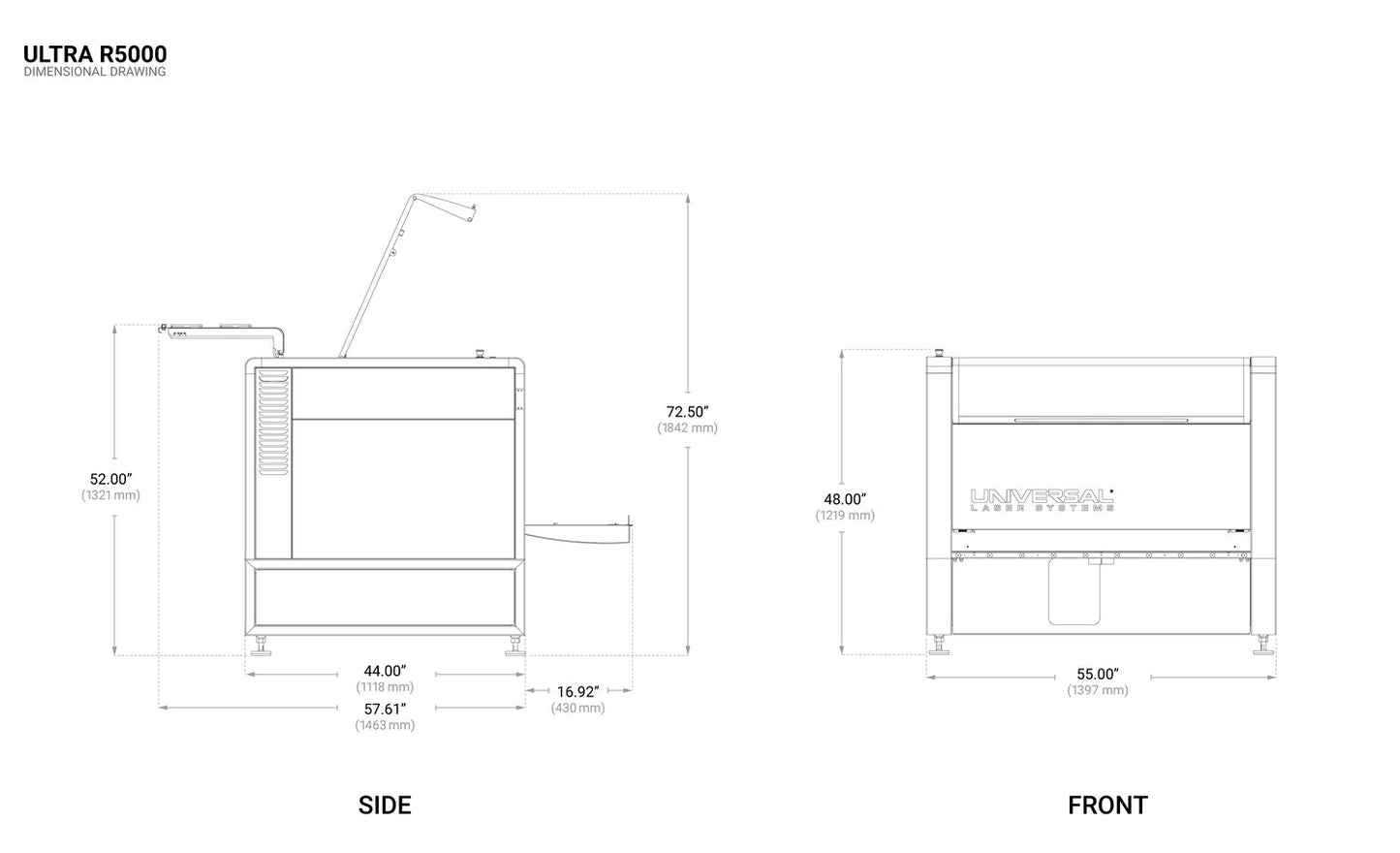

- Style and size (W × D × H)
- 55 × 46.3 × 48 in (width without control panel)
- Weight
- 400 lb
- Electrical
- 220–240V/16A
- Exhaust requirement
- One 6″ port · over 700 CFM @ 6 in static pressure
- Software and computer
- LSM + Intelligent Materials Database · Windows 10/11 PC (i3, 8 GB) or optional 21″ touchscreen
From the ULS ULTRA R5000 spec sheet REV2024.05.
ULTRA
Other ULTRA models
- CO₂ + fiber
ULTRA R9000
48 × 24 in work area · up to 300 W CO₂, or CO₂ + fiber
- 3 laser sources
ULTRA X6000
Three laser sources · 36 × 24 in work area · 300 W CO₂ + 50 W fiber
Applications
Start with the result you need.
For a demanding application, specifications are only the starting point. Tell us about your material, part geometry, and required result. We can coordinate testing with the Universal Laser Systems Applications Lab, so you can see how your material responds and review the results before you choose a system and configuration.
Parts and supplies
Replacement parts that fit the ULTRA R5000, listed by part number.
Exhaust for this laser
Exhaust requirement
One 6″ port · over 700 CFM @ 6 in static pressure
The ULTRA R5000 needs exhaust airflow while it runs. You can vent it outside through ducting with a blower that meets this requirement. If you can’t vent outside, use a fume extractor: it filters the air and returns it to the room.
Questions
Questions about the ULTRA R5000
What does my site need for the ULTRA R5000?
Electrical: 220–240V/16A. Exhaust: One 6″ port, over 700 CFM @ 6 in static pressure. Software and computer: LSM + Intelligent Materials Database, Windows 10/11 PC (i3, 8 GB) or optional 21″ touchscreen.
Do I need a fume extractor for the ULTRA R5000?
Not always. The ULTRA R5000 needs exhaust airflow while it runs (see the exhaust requirement in the specifications). You can vent it outside through ducting with a blower that meets that requirement. If you can’t vent outside, a fume extractor filters the air and returns it to the room. We can suggest one for your space.
Can I order with a purchase order?
Yes. Schools, labs, government buyers and companies can order on a purchase order. See quotes and purchase orders for how it works.
Can I finance this?
Yes. We work with several equipment-financing partners. See our equipment financing options for details and to get started.
