FMO.100 Laser System

FMO.100 Laser System

FMO.100

starting at $8,995 | as low as $185/mo

The ABI FMO.100 Fiber Laser System utilizes advanced MOPA fiber technology, offering power options up to 100 watts for precise, high-speed marking and engraving on metals and various materials. With engraving speeds of up to 7000 mm/sec and a versatile, open platform design, its perfect for applications requiring fast and accurate results. the air-cooled system minimizes maintenance and energy consumption, making it a reliable, long-term solution for businesses seeking high performance.

Build Your Machine
Download Spec Sheet
View full details

Get a Quote

Fill out the form below for Availability & pricing

close

Description

Specifications

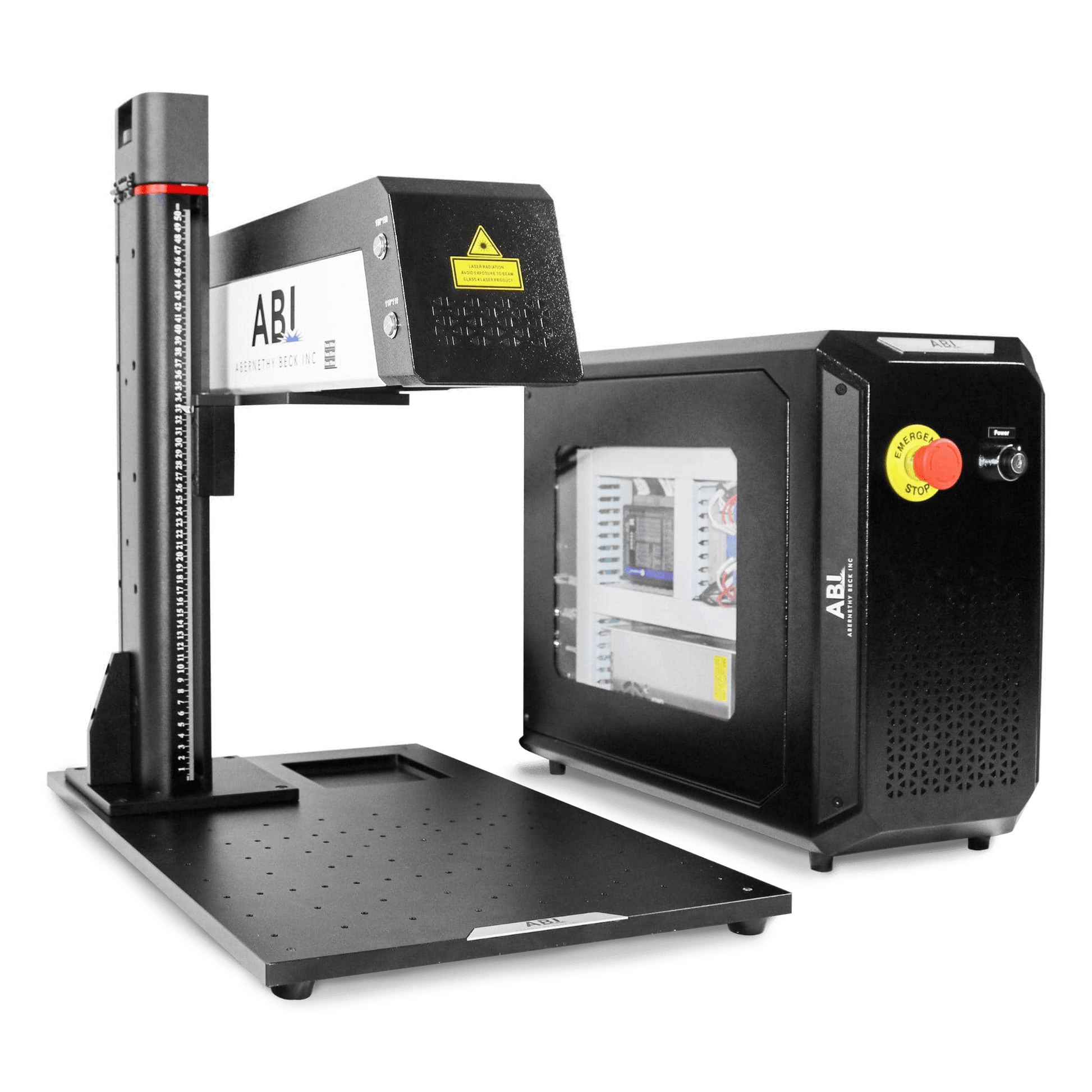

The FMO.100 Laser Marking System is a versatile platform designed for a wide range of applications. With laser power options up to 100 watts using MOPA fiber technology, this system offers precise, high-speed laser marking and engraving.

The air-cooled design ensures minimal maintenance and low energy consumption, making it an efficient choice for long-term operation. The system supports a maximum engraving field of 400mm x 400mm (15.8 x 15.8 inches) and operates at high speeds of up to 7000 mm/sec, ensuring fast and efficient processing for various marking and engraving applications.

Model FMO.100
Laser Power Options 20W / 30W / 60W / 100W
Laser Wavelength 1064 nm
Laser Cooling Method Forced Air Cooled
Standard Marking Area 150mm*150mm
Optional Marking Area 70*70mm / 110*110mm / 200*200mm / 300*300mm / 400*400mm
Maximum Marking Speed 7000mm/s
Minimum Line Width 0.015mm
Minimum Character 0.2mm
Repeated Precision ± 0.003mm
Beam Quality M² < 1.3
Focus Spot Diameter <0.01mm
Aiming Beam Class II Red Diode (635 nm)
Computer Requirements Requires dedicated PC with Windows® 10/11 64 bit and one available USB port
Power Requirements 110V / 60HZ / 1PH
Accepted File Types AI, PDF, SVG, DXF, PLT, EPS, BMP, JPG, PNG, TIFF
Dimensions (L x W x H) 400mm (15.75 inches) x 650mm (25.59 inches) x 661mm (26.02 inches) for the baseplate and Z-axis; control box size: 850mm (33.46 inches) x 500mm (19.69 inches) x 650mm (25.59 inches)
Approximate Weight 133 lbs

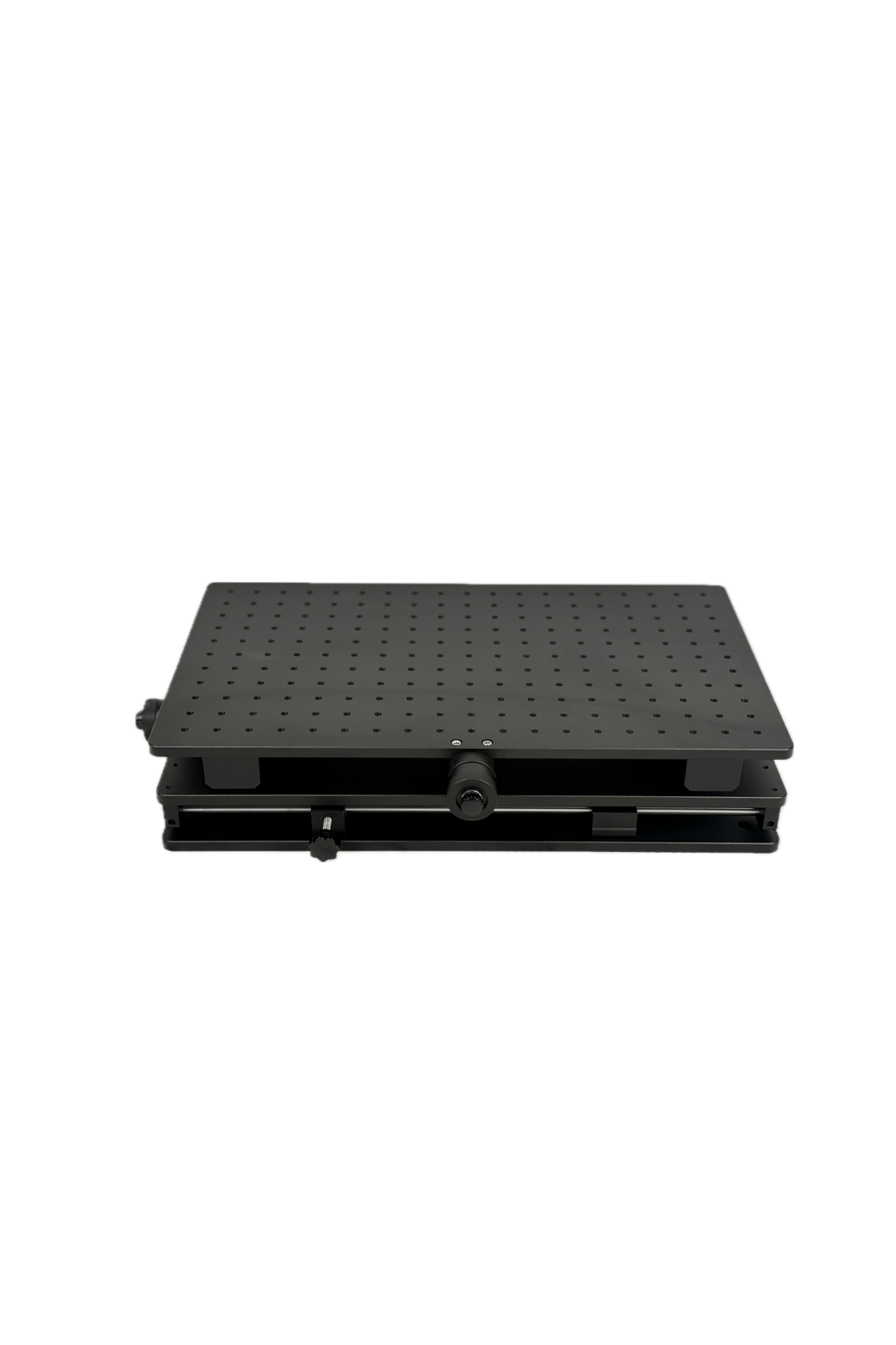

Optional Accessories Rotary, X-Y Table, Fume Extraction
MOPA Fiber Laser technology

The FMO.100 uses an advanced MOPA fiber laser with adjustable pulse durations, it offers greater precision and versatility than q-switched lasers, ensuring high performance across various substrates.

Low Maintenance Design

Engineered for minimal upkeep, with the only moving parts located in the scan head, significantly reducing maintenance needs. The laser system is rated for over 100,000 hours of operation, ensuring long-term reliability and reduced downtime.

High performance scan head

Equipped with a high-performance scan head designed for speeds up to 7,000 mm/sec, enabling fast and efficient processing. Built for long-term reliability, this scan head ensures consistent performance over time, making it ideal for high-volume operations and demanding applications.

2-Year Warranty

The FMO.100 comes with a 2-year warranty, providing peace of mind from the start. For added security, the warranty can be extended for an additional two years, ensuring long-term protection and support for your investment

High Quality Optics

The FMO.100 features high-quality lens and mirrors, engineered to withstand demanding production environments. These components are built to last, ensuring consistent performance and longevity even in high-use applications.

Lifetime Support

We are committed to supporting you for the entire life of the machine. Our dedicated team is heare to assist with any technical issues, ensuring your laser system continues to perform at its best for years to come.

Simple Financing Options

Explore flexible payment plans with our finance partner. Own the ABI FMI.100 fiber laser with terms that work for you.

View Financing Options

What materials can the FMO.100 fiber laser mark or engrave?

The FMO.100 is designed to mark a wide range of metals, including stainless steel, aluminum, brass, copper, titanium, and more. It can also mark some engineered plastics, depending on the material composition. It’s ideal for part numbers, barcodes, logos, and deep engraving applications on metal components.

What software is included, and is it user-friendly for beginners?

The FMO.100 includes EZCAD2 software. EZCAD2 is widely used in the laser marking industry and supports standard file formats like DXF, AI, BMP, and more. It offers powerful functionality while remaining accessible for new users.


In addition, the FMO.100 is compatible with LightBurn laser software, which we highly recommend for its intuitive interface and streamlined design tools. LightBurn is a third-party software option (sold separately) that many users find easier to learn and more efficient for creating and managing jobs.

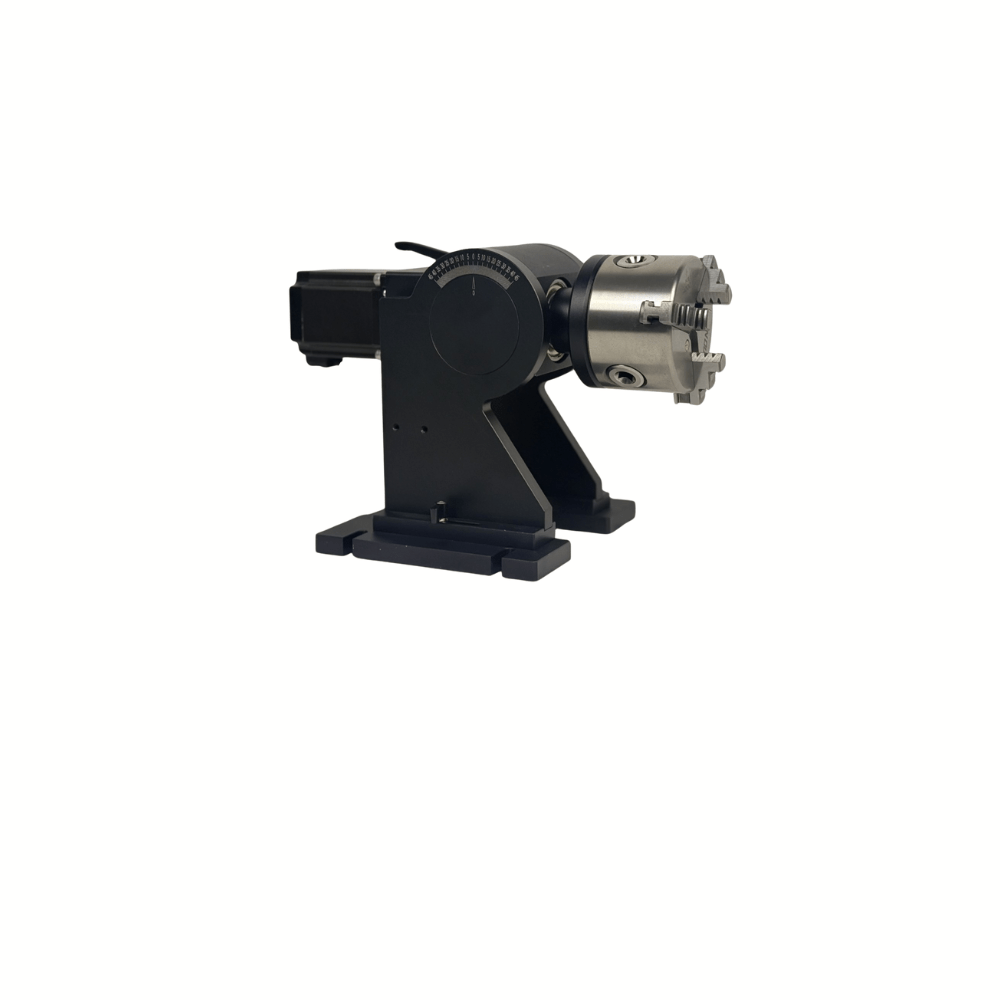

Can I use a rotary attachment for cylindrical items like rings or tumblers?

Yes, the FMO.100 supports rotary attachments for marking on cylindrical or curved objects. It’s ideal for engraving rings, tumblers, metal rods, and other round items. Rotary accessories are available as add-ons and are easy to install and configure within the software.

Is the FMO.100 suitable for production line use or is it meant for bench-top applications?

The FMO.100 is designed primarily as a bench-top laser marking system, ideal for workstations, small production cells, and job shop environments. Its compact footprint and air-cooled design make it easy to integrate into most workspaces without the need for special infrastructure.


For higher-volume workflows, the system can also be adapted for semi-automated or light production use, especially when paired with fixtures, rotary attachments, or a custom enclosure. If you’re exploring integration into a fully automated production line, ABI can help evaluate the requirements and determine if this platform or a custom-configured solution is best for your operation.

What kind of ongoing technical support does ABI provide after purchase?

ABI offers full support after the sale, including phone, email, and remote assistance for troubleshooting or training. We also provide optional on-site service and training if needed. Our team has decades of experience supporting laser systems in the field, and we’re committed to helping your team get the most out of your investment.
