BOFA AD 1000 iQ, the ultimate solution for heavy-duty fume extraction needs in laser marking, coding, and engraving applications. BOFA's AD 1000 iQ high-performance laser fume extraction system boasts a large filter capacity and high airflow and pressure rates, making it ideal for high-volume particulate and gaseous organic compound extraction.

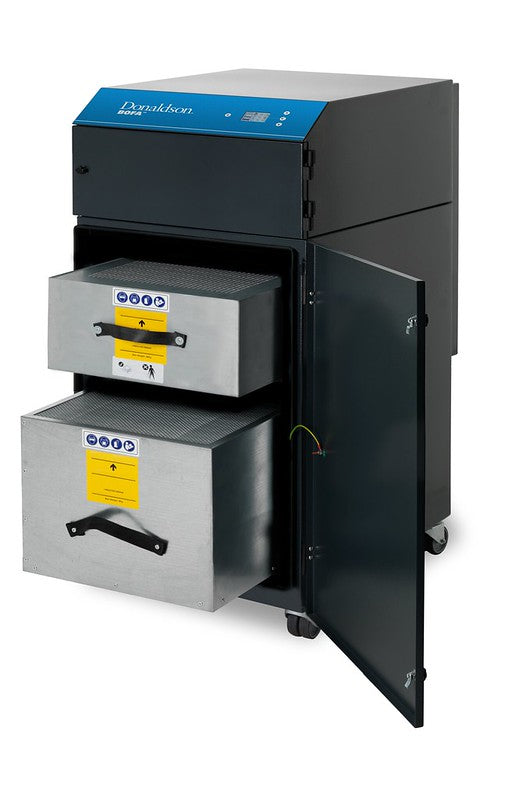

The AD 1000 iQ system is equipped with BOFA's patented DeepPleat DUO pre-filter and the acclaimed iQ Operating System to provide enhanced performance and safety. It ensures minimum maintenance, downtime, and ownership costs.

The key features of the AD 1000 iQ include the iQ Operating system, high airflow and pressure rates, reverse flow air filter technology, deep-pleated DUO pre-filter, automatic flow control system, real-time airflow reading, high-contrast display, 'run-safe' operation, remote diagnostics via USB, independent filter condition monitoring, display and warnings, combined HEPA/Gas filter incorporating ACF technology, and filters with long life and low replacement costs.

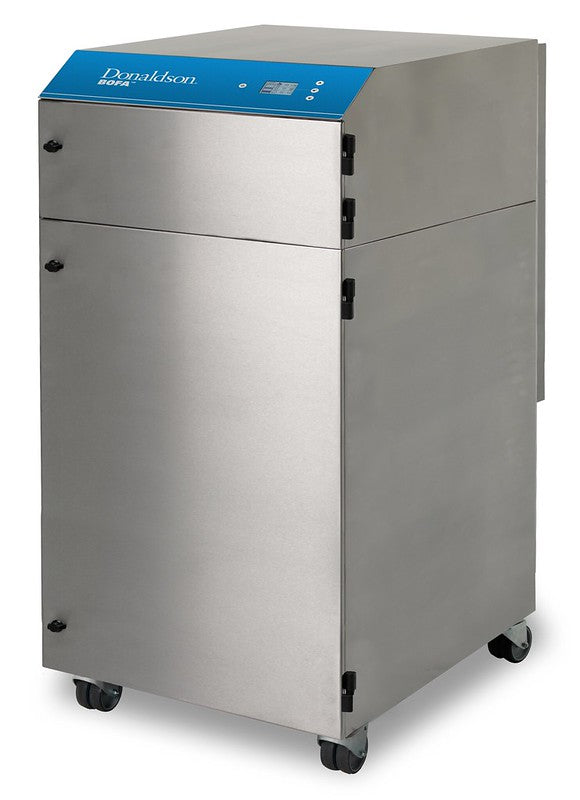

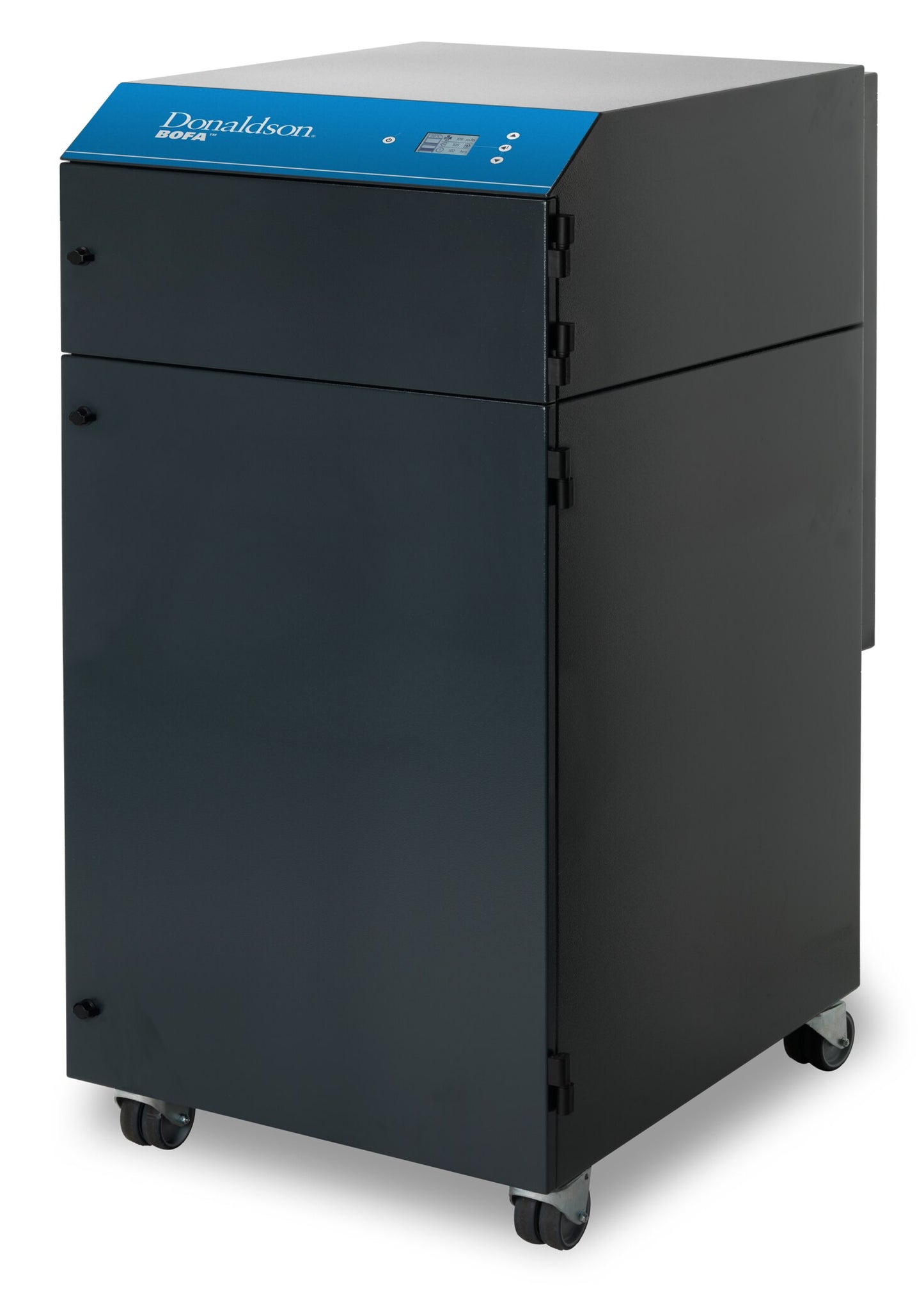

With dimensions of 1205 x 615 x 790mm (47.44 x 24.21 x 31.10 inches), the AD 1000 iQ system is constructed of brushed stainless steel/powder-coated mild steel and weighs 140kg (309lbs). It operates at a noise level of less than 63dBA (at typical operating speed).

The BOFA AD 1000 iQ system is available in different models with varying voltages and specifications, including 230V 1ph 50/60Hz Full load current: 12.8 amps/2.2kw, 115v 60/50Hz Full load current: 19.5 amps/2.2kw, and CE/cUL, UL approvals.

First set of filters are included.

Replacement Filters: Pre-Filter 1UA1030222 Combined Filter 1UA1030297
