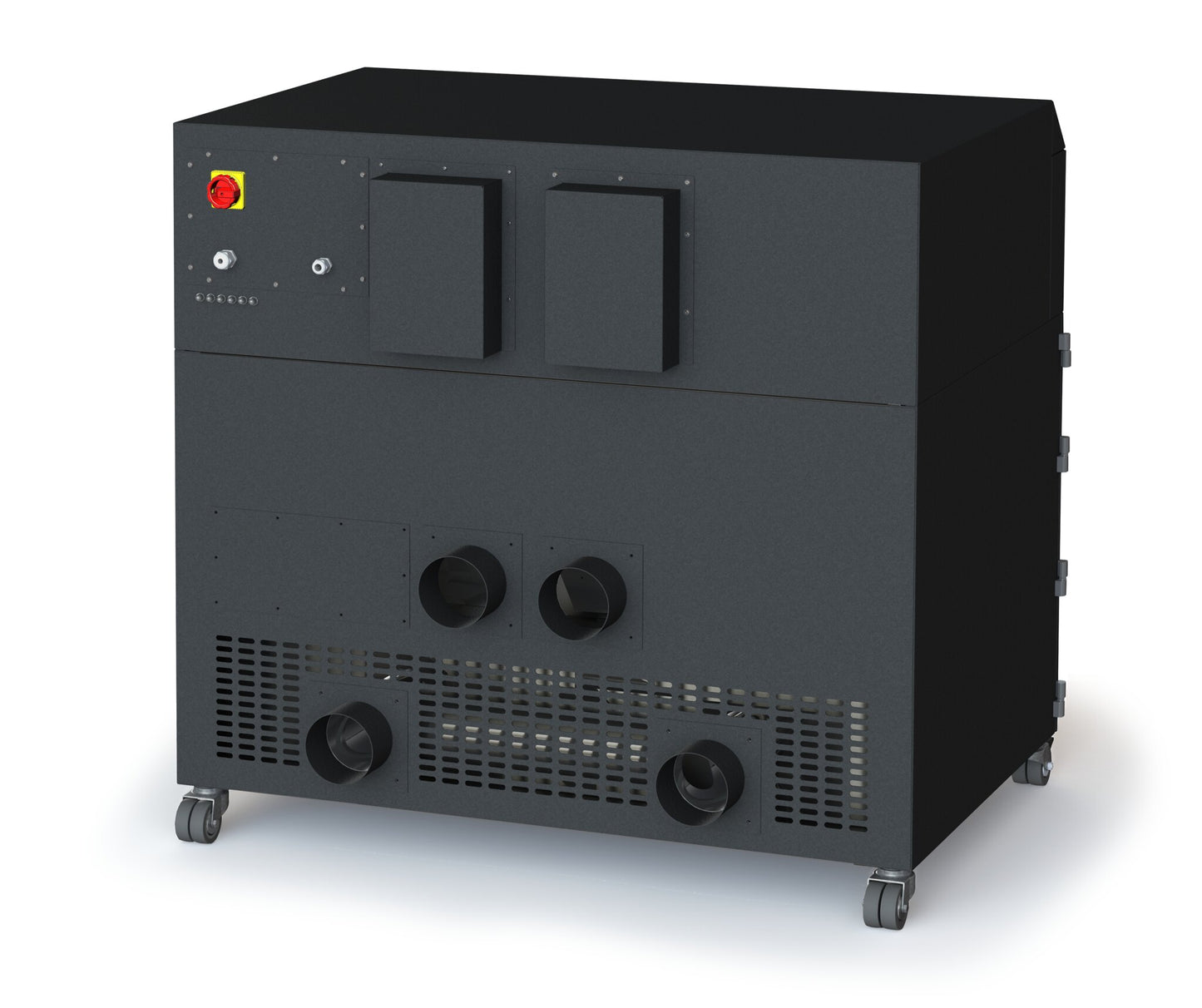

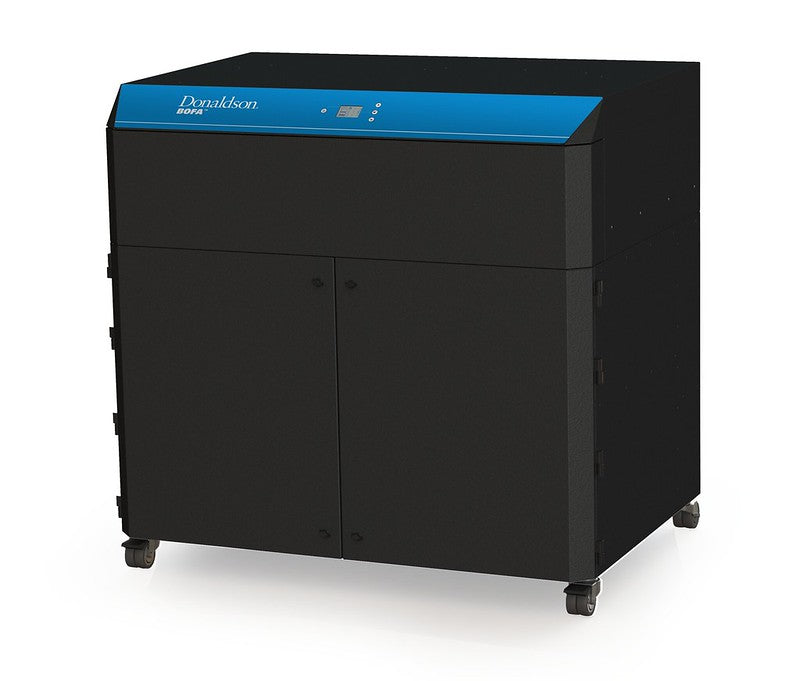

The Donaldson BOFA AD 2000 iQ is a high-capacity fume extraction system designed to provide exceptional performance in demanding industrial environments. Utilizing advanced filtration technologies, this unit ensures optimal air purity and workplace safety during laser marking, cutting, engraving, and other particulate-generating processes.
Key Features:
-
Intelligent Operating System (iQ): Real-time monitoring of filter conditions, internal temperature, airflow, and motor operation.
-

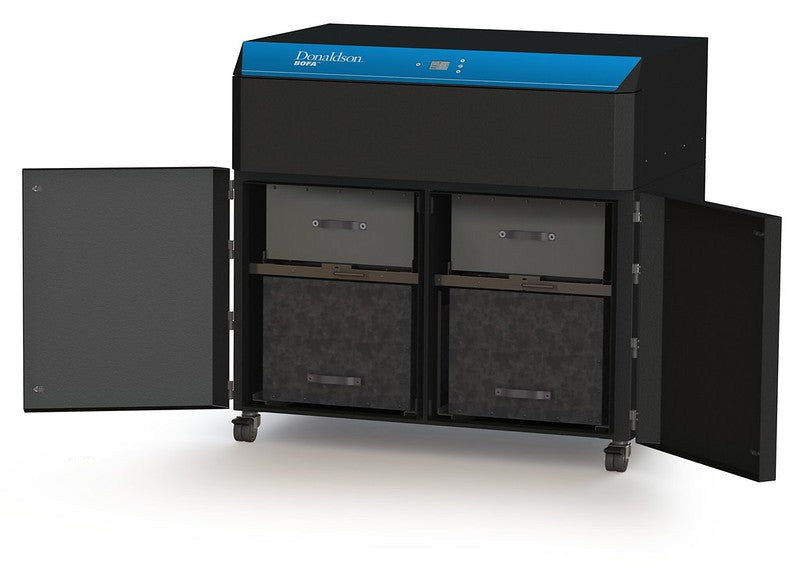

Dual DeepPleat DUO Pre-Filters: Extend filter life by capturing larger particulates, reducing maintenance frequency.
-
Combined HEPA/Gas Filters: Equipped with HEPA filtration rated at 99.995% efficiency at 0.3 microns and activated carbon filters for effective removal of harmful fumes and gases.
-
Reverse Flow Air (RFA) Technology: Maintains filter efficiency by optimizing airflow distribution.
-
Automatic Flow Control (AFC): Ensures consistent airflow (500-2500 m³/h) throughout filter lifespan, automatically adjusting motor speed to maintain set performance.
-
USB Connectivity: Allows easy duplication of system settings and data logging for performance tracking and remote diagnostics.
Technical Specifications:
-
Dimensions (HxWxD): 50.39” x 53.54” x 39.57” (1280 x 1360 x 1005 mm)
-
Weight: 750 lbs (340 kg)
-
Cabinet Construction: Powder-coated mild steel
-
Airflow: 1471 CFM (2500 m³/h) / 96 mBar
-
Electrical Requirements:
-
US: 415V / Three-phase / 60Hz, 20A per phase (Neutral 35A)
-
EU: 415V / Three-phase / 16A per phase (Neutral 28A)
-
-
Noise Level: Less than 75 dBA (typical operation)
-
Filter Specifications:
-
Pre-filters (DeepPleat DUO): 60.2 ft² media area (pack of 2)
-
Combined HEPA/Gas Filter: 99.995% efficiency at 0.3 microns, 161.4 ft² media area; activated carbon (68 kg)
-
-
Inlet Diameter: 125 mm
-
Environmental Operating Range: Temperature +41°F to +104°F (+5°C to +40°C), Humidity: up to 80%
-
Connectivity and Alarms:
-
High-visibility LCD screen displays airflow, temperature, and filter condition
-
USB connectivity for downloading usage data and duplicating settings
-
Visual and audible alarms for filter replacement, blockages, and temperature thresholds
-
-
Safety and Compliance:
-
CE, UKCA approvals
-
Designed in compliance with Machinery Directive 2006/42/EC
-
The Donaldson BOFA AD 2000 iQ extraction system delivers superior performance, reliability, and ease-of-use, making it an essential asset for maintaining air quality standards and ensuring operational efficiency in your workspace.
For complete operational guidance and safety procedures, refer to the included user manual.
