Donaldson BOFA · Inline cyclone filter
AD Cyclone 1UA1080112
Price $1,795.50
Donaldson list $1,890.00 · each
Ordering for several machines or on a purchase order? Quotes and purchase orders
- Authorized Donaldson BOFA distributor
- Ships from US stock
- Business accounts: purchase orders and tax-exempt accepted
- Questions? Send us a message
What is it used with?
Connection: 75 mm (3.0 in) inlet and outlet. Send us your extractor model and we’ll confirm the sizing. Send us a message
Used with these BOFA models (3)
Model not listed? Send us a message
Specifications
AD Cyclone specifications

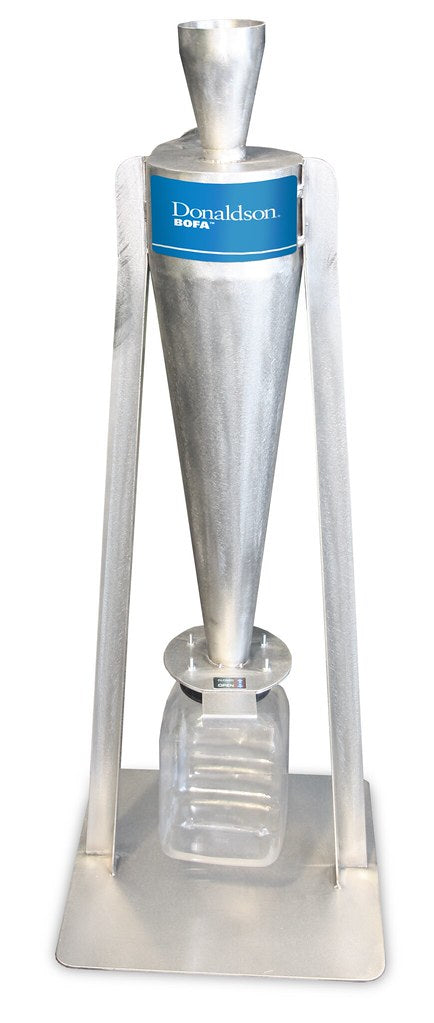

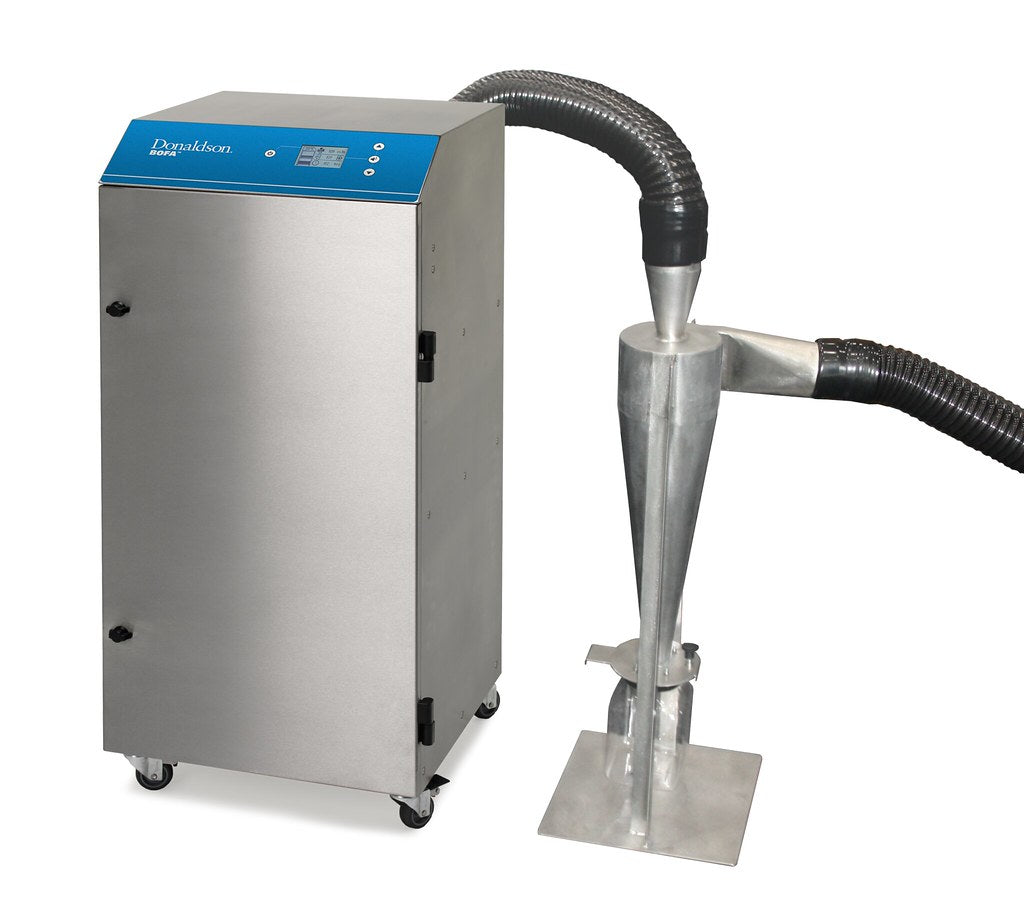

Donaldson BOFA AD Cyclone, an inline cyclone filter for laser marking, which typically makes smaller particles. It goes between the laser's extraction point and the extractor and runs on the extractor's airflow, collecting particulate in its container to extend filter life. Stainless steel, with a shut-off valve and a 75 mm (3.0 in) inlet and outlet. Donaldson engineered it for use with the AD Oracle iQ. Part number 1UA1080112.
| Type | Inline cyclone filter |
|---|---|
| Inlet and outlet | 75 mm (3.0 in) |
| Size (H × W × D) | 31.5 × 11.8 × 5.5 in (800 × 300 × 140 mm) |
| Weight | 15 lb (7 kg) |
| Airflow range | Up to 118 cfm (200 m³/h) |
| Power | None: it runs on the extractor's airflow |
| Construction | Stainless steel, with shut-off valve and collection container |
| Part number | 1UA1080112 |
| Used with | AD Oracle iQ, AD Oracle PRO OS and Connect, AD Oracle SA iQ |
Source: Donaldson BOFA AD Cyclone data sheet (V1.1) and user manual
Spec sheet (PDF)DS-AD-CYCLONE-BOFA-US-V1.1.pdf
